Description

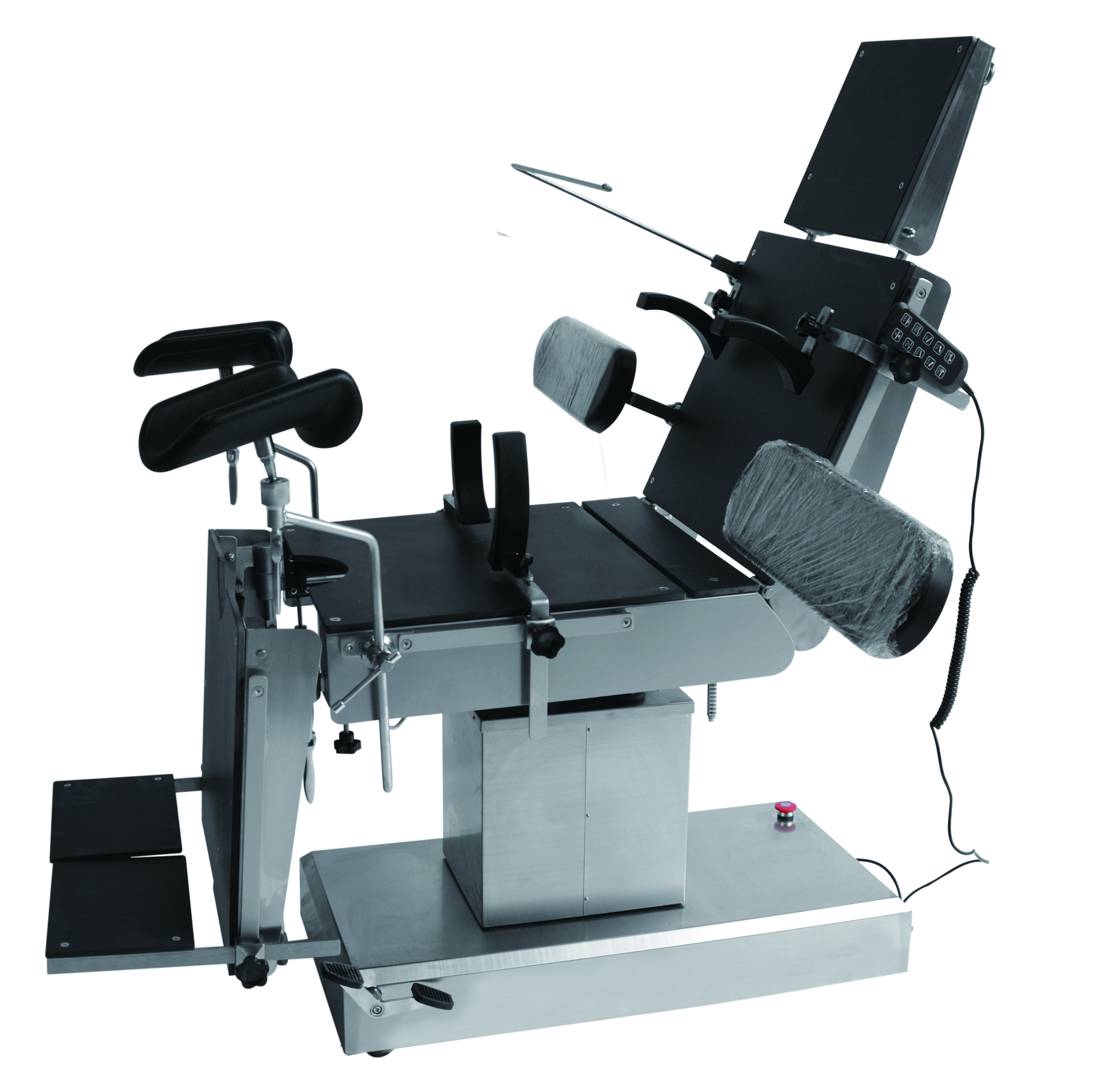

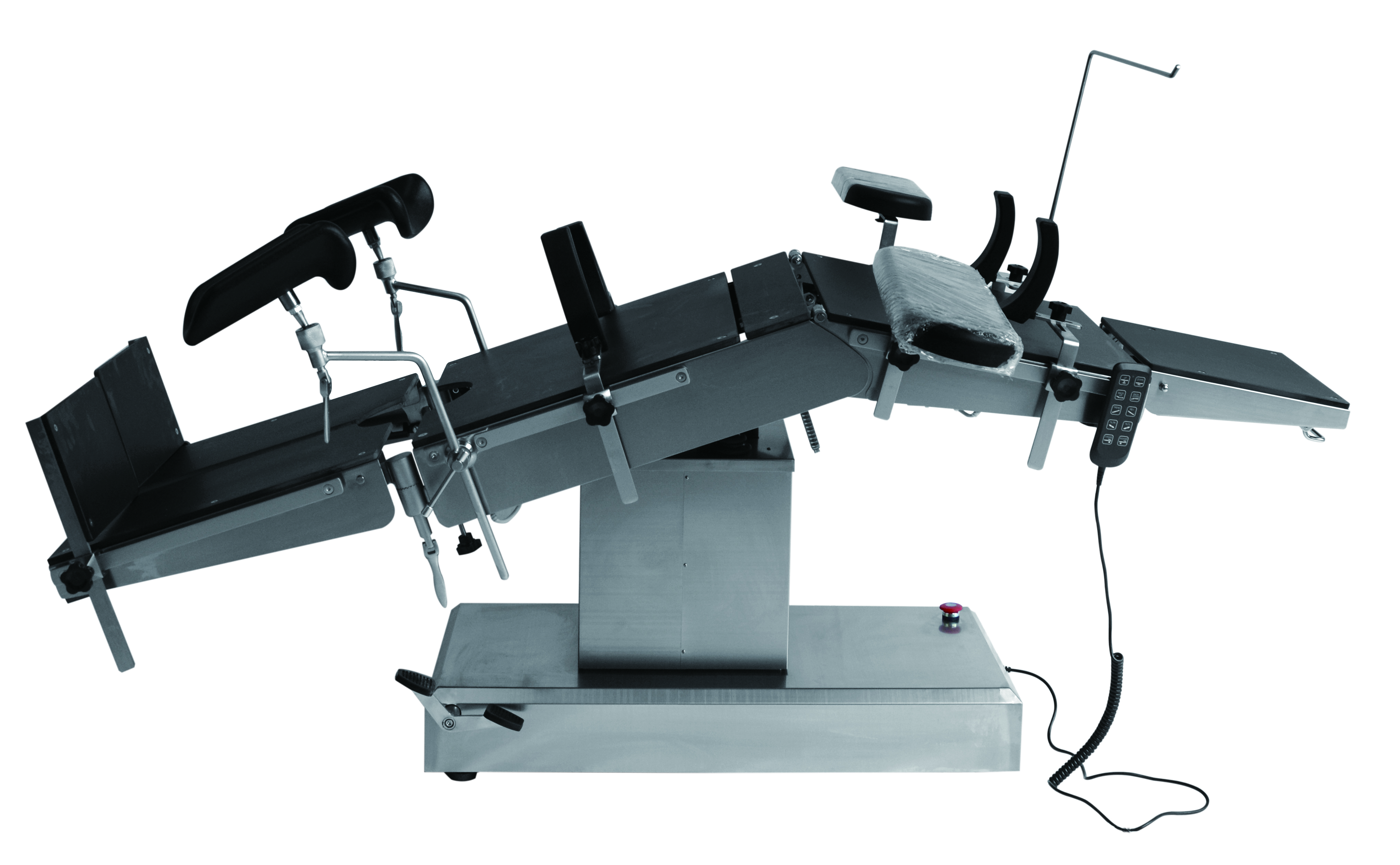

Electric Operating Table

Model YFD04

Length: ≥ 2050mm

Width: 550mm

Tabletop lowest height: ≤ 710mm

Elevation range: 250mm

Product Features

Table lifting, trendelenburg, reversed trendelenburg, lateral tilt motions, back plate and Horizontal Sliding up folding these motions are controlled by buttons. Electric lifting. The base and column cover all made by premium stainless steel. Good performance on anti-rust and easy to clean.

Parameter

Reverse Trendelenburg: ≥25°

Trendelenburg: ≥30°

Lateral Tilt (Left And Right): ≥20°

Head plate Up: ≥45°

Head plate Down: ≥90°

Back plate Up: ≥65°

Back plate Down: ≥30°

Leg plate Up: ≥10°

Leg plate Down: ≥90°

Leg plate Outward: ≥90°

Horizontal Sliding Range: ≥350mm

Kidney Bridge Elevation: ≥120mm

Disposition

Anaesthesia screen: 1 piece

Shoulder support (cushion): 2 piece

Arm support (cushion): 2 piece

Body support (cushion): 2 piece

Leg support (cushion): 2 piece

Foot plate (cushion): 2 piece

Long Fixing Clamp: 2 piece

Fixing Clamp: 9 piece

Mattress: 1 piece

Packaging and delivery

Packaging: Wooden case

Size: 144*77*101 cm

G./N.W.: 210/170 kg
