Description

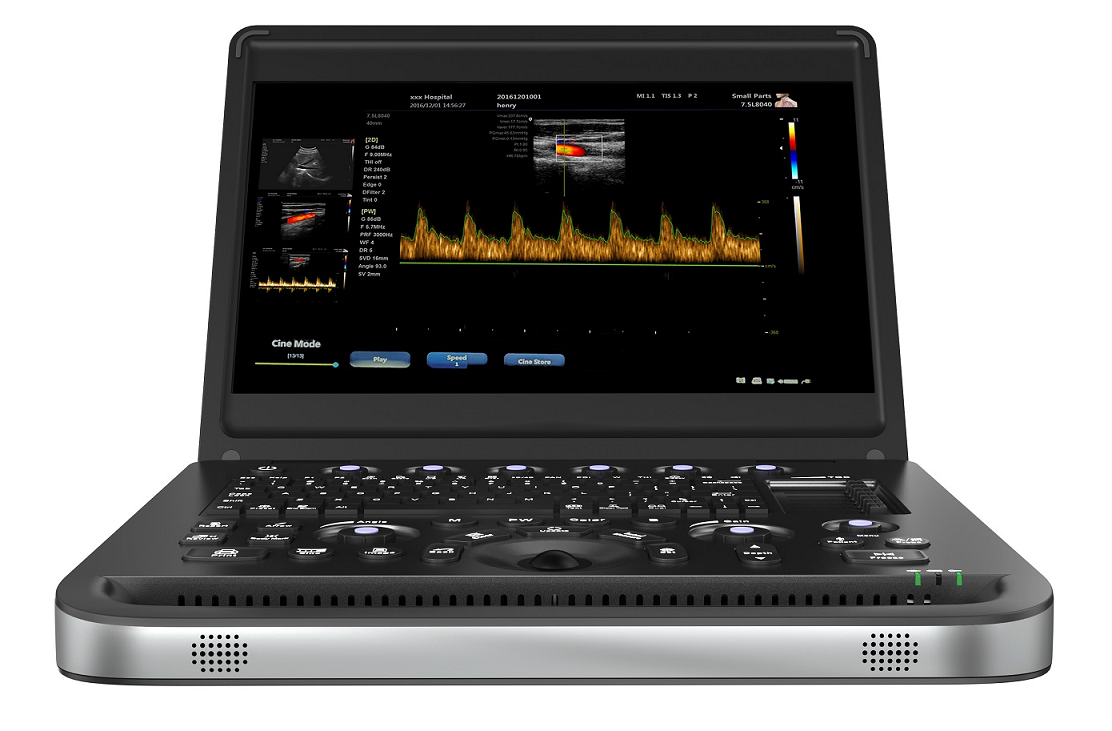

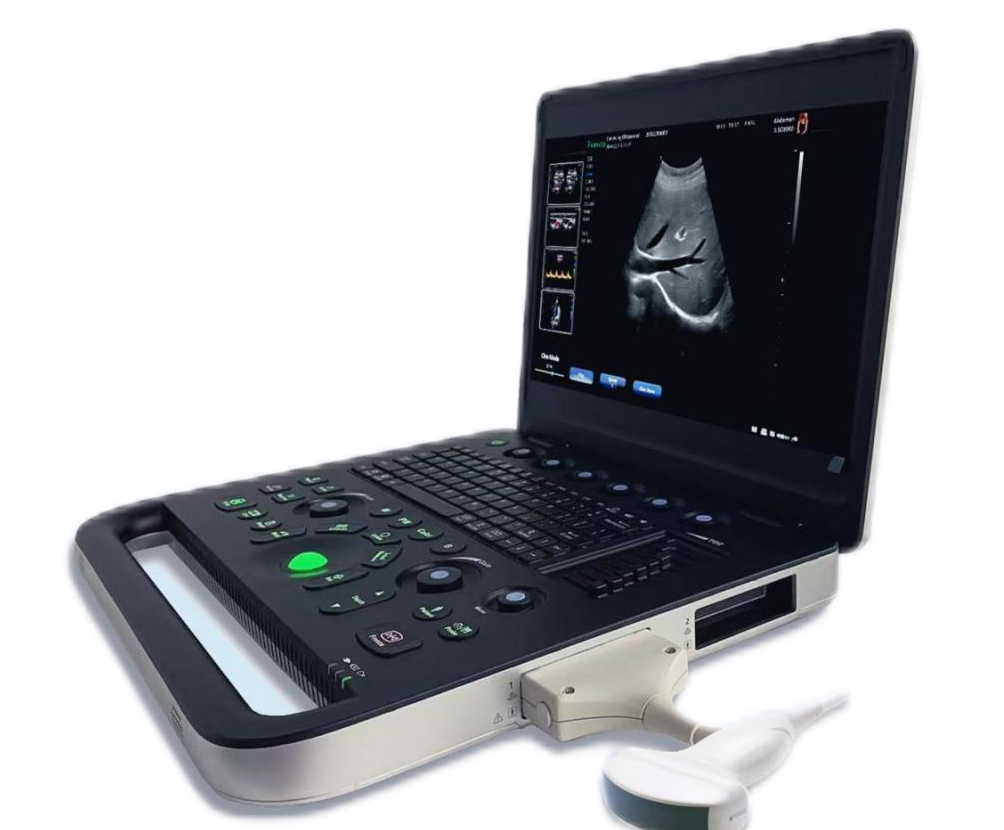

An Excellent Entry Level laptop Color Doppler Machine

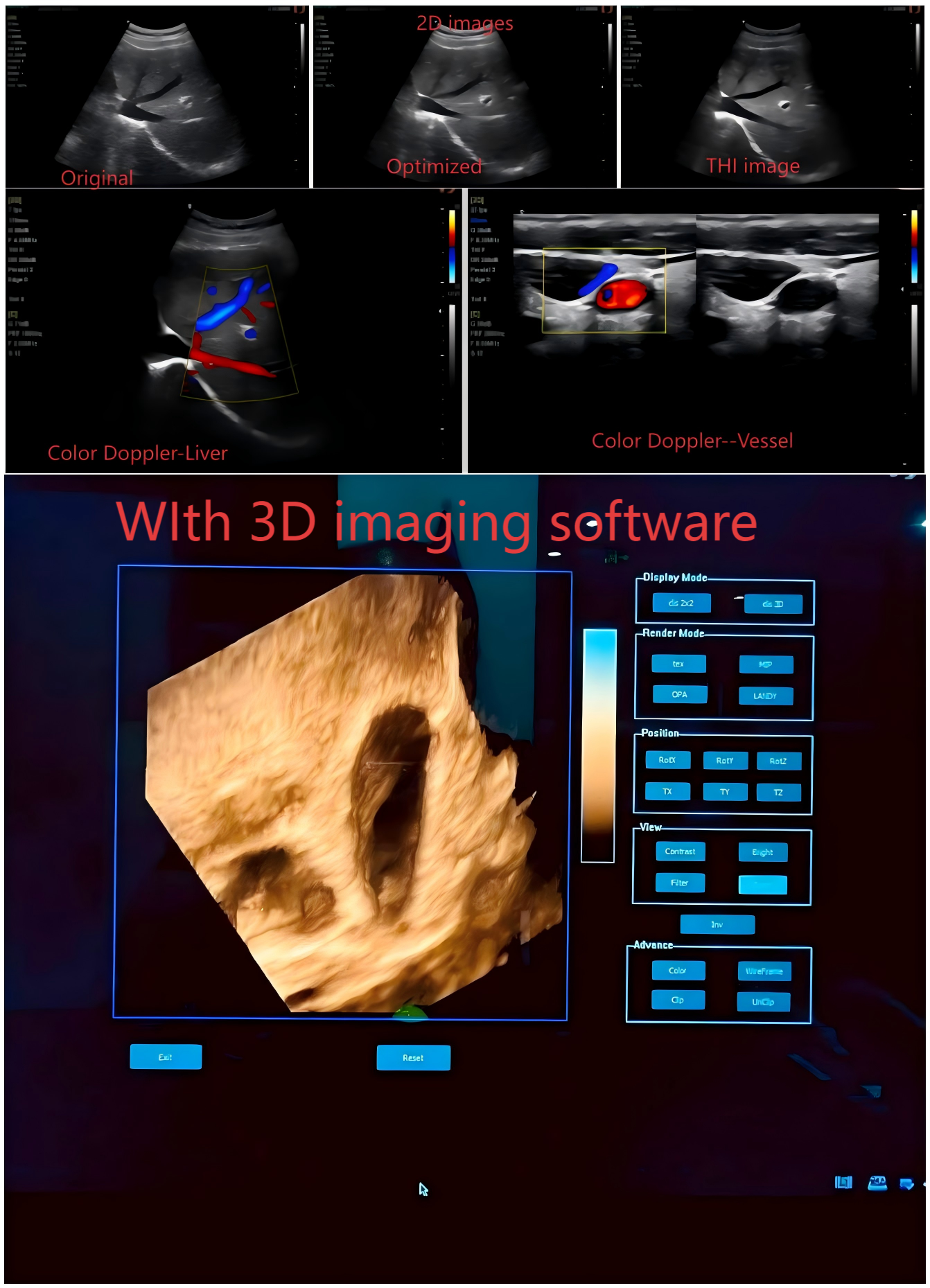

50C is an excellent general purpose color Doppler ultrasound diagnostic system. Based on xxx ’s leading digital ultrasound technology, xxx offers decent 2D images with THI, excellent CFM images, as well as Doppler imaging modes such as CFM, PW, PDI,CW, optional 4D etc.

Features & Advantages:

Ø Multi-application: abdomen, OB/GYN, small parts, peripheral vessels, urology, cardiac,

rectum, pediatric, orthopedic, galactophore, intra-operative, ultrasound guided biopsy.

Ø Continuous high-precision DBF

- High resolution imaging

Ø Parallel scanning

- Faster 2D frame rate

Ø PC platform / Windows 7 Embedded O/S

- Simple, direct and user-friendly workflow

- Customized PC motherboard ensures system stability and reliability

- Write protection of ultrasound control program, safe from virus attack and power outage

- Operation system restoration by one click

Ø Complete Digital Solution

- Digital core module with DBF

- Digital display with DVI, enabling enhanced screen display

- Digital printing, enabling clearer printing with no need of adjustment

Ø Transducer

- Self-owed transducer workshop

- Multi-frequency transducer series

- Max frequency up to 12MHz

Ø Multi-language Interface

- English

- French

- Spanish

- Polish

- Arabic

- More to come

Ø Printing

- Direct printing by one click

- PC and video printers supported

- Color printers supported

Standard Configuration:

main unit

15.6" high - definition LED monitor (1920 x 1080)

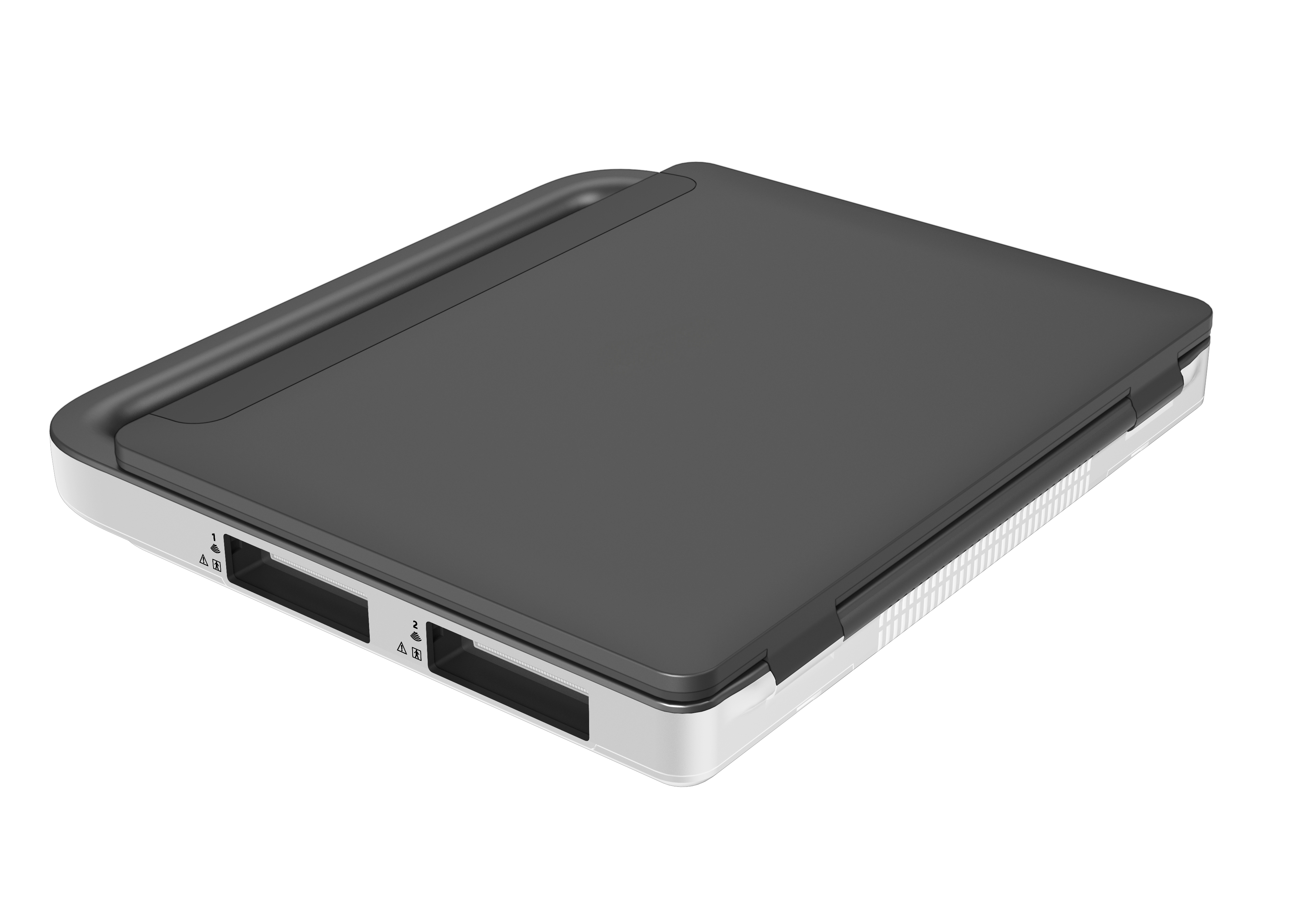

Two activated transducer connectors

Min. 300-frames of Cine Loop

B / B+B / 4B / B+M / B-steer (note) / Color Doppler (CFM) /

Power Doppler (PDI) / Pulsed Wave Doppler (PWD) / B+PWD (Duplex)

B+CFM+PWD (Triplex) / Tissue Harmonic Imaging (THI) / Auto IMT

SRI (Speckle Reduction Imaging)

One Click Restoration of O/S

2 USB ports & one HDMI & one Audio out & VGA & DICOM 3.0

Panoramic zoom

Measurement & calculation software packages

Electronic convex array transducer:         CA3.5MHz/R60 (2.0-6.0MHz)

Electronic linear array transducer:         LA7.5MHz/L40 (5.0-10.0MHz)

Battery life: 5 hours (5600mAh lithium battery, using time vary depending on scanning mode)

Options:

Electronic convex array transducer:         CA3.5MHz/R60 (2.0-6.0MHz)

Electronic transvaginal transducer:         EV6.5MHz/R10 (4.0-10.0MHz)

Electronic micro convex array transducer: MC3.5MHz/R20 (2.0-5.0MHz)

Electronic linear rectal transducer:          LA7.5MHz/L40 (5.0-10.0MHz)

Needle-guided brackets

Footswitch

Technical Specifications:

General Descriptions

Imaging mode: B B/B B+M M B/PW CFM PW B+CFM+PWD PDI

Gray scale: 256

Display: 15.6" high - definition medical LEVEL imaging LED (1920 x 1080)

Transducer frequency: 2.0 ~ 12MHz

Transducer connector: 2

Imaging Technology: Continuous High-precision Digital Beam-former

Dynamic Frequency Integration Imaging

High-precision Dynamic Receiving Focus

Super Wide-band Imaging Technology

Self-adaptive Image Optimization Processing

Multi-beam Imaging

Self-adaptive Vascular Imaging

Self-adaptive Doppler Imaging

THI (Tissue Harmonic Imaging)

Image Processing

Pre-processing: 8-segment TGC / gross gain / dynamic range / gray map

Smooth / acoustic power adjustment / scanning angle selection

Post-processing:        edge enhancement / frame correlation / line correlation

γ-correction / contrast /brightness, etc.

Measurement & Calculation

B-mode: distance, circumference, area, volume, angle, residual urine volume, histogram, profile

M-mode: distance, time, velocity, heart rate

D-mode: Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, VI, PI, RI, etc

Software packages:

GYN uterus, endometrium, ovary, cervix, ovarian follicle

OB GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD, APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc

Cardiac M. Simpson, B-EF、M-EF（Pombo、Gibson、Teichholz）, Diameter

Function, PV flow, AV-Area, B-LV/Ao、M-LV/Ao, MV Regurg, etc

Urology volume of prostate, volume of bladder, volume of urine, volume of trans zone, Hip J.Angle（hip joint dislocation in neo-natal and babies）、slice v, etc.

Small Parts and Peripheral Vessels

vascular cross-sectional area, heart rate, stroke volume, flow per unit time, Ejection Time, % stenosis, mean velocity of flow, RI, PI, etc.

Others

Peripheral port: USB port 2 / DICOM 1 / VGA port 1 / HDMI 1 / Audio

Power supply: 100V - 240V 50/60HZ 19V/3.2A DC Adapter

Unit Net weight: 3.9 KG

Gross weight:           Aluminum case packing 9.5KG / Carton box packing 6.5KG

Packing Dimension:     445 mm (W) * 185 mm (D) * 435 mm (H)
