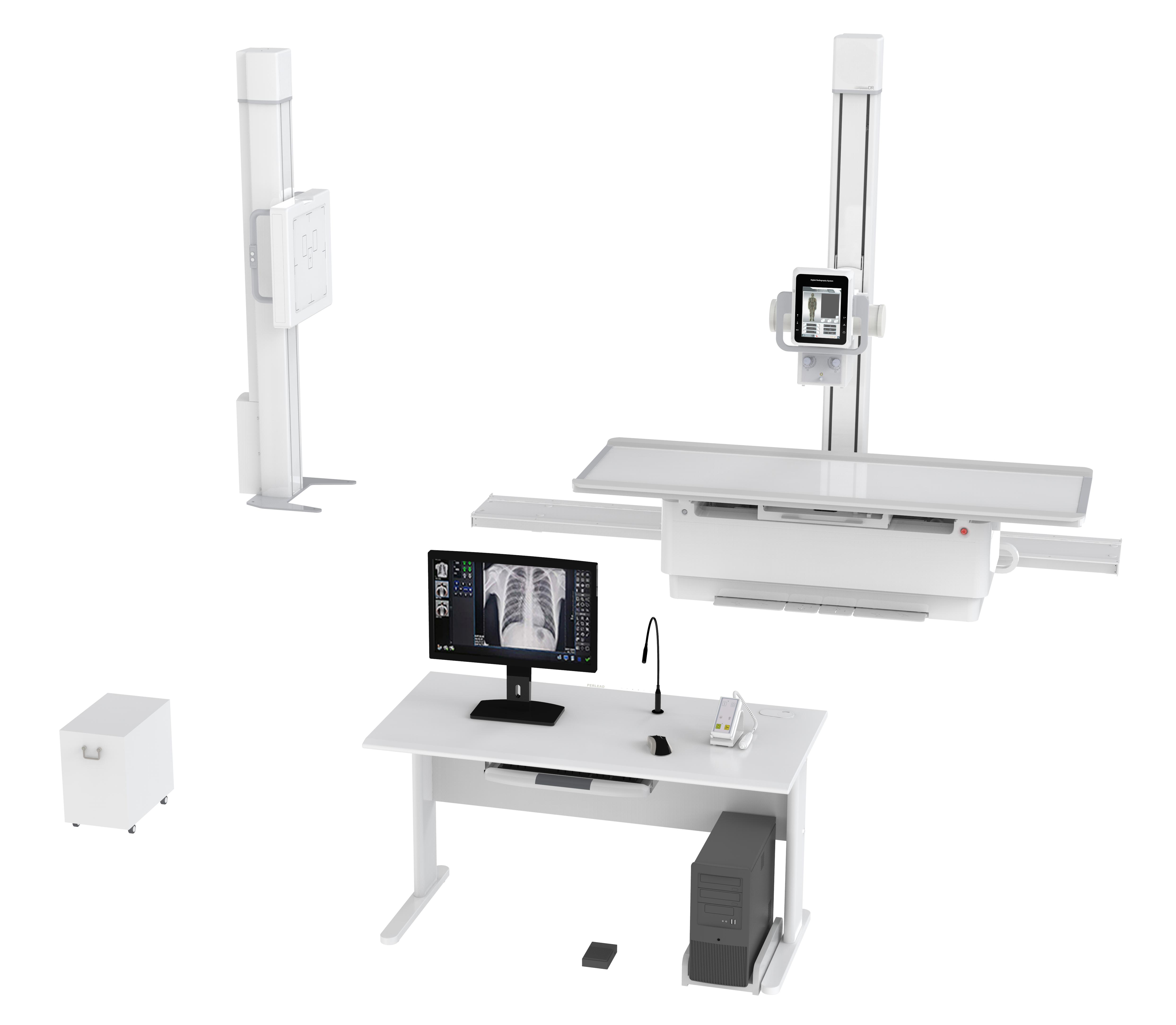

CCX65A 65.5KW 800mA Dual-column 6-dimensional Flat Bed DR Digital X-ray Machine

Core Overview

CCX65A is a floor-mounted dual-column 6-dimensional flat bed DR digital X-ray machine configured with 65.5KW high-frequency high-voltage generator, 800mA tube current, imported Canon X-ray tube and 17*17inch FPD, matched with an elevating table. It features flexible 6-dimensional mechanical movement, humanized table-side touch control system, high-definition imaging performance and a powerful professional digital workstation, supporting high-efficiency radiographic examinations of all human body parts. With easy operation, comprehensive radiation protection and strong system compatibility, it is widely applicable to multiple clinical departments, meeting the imaging needs of routine diagnosis, emergency treatment, intraoperative testing and large-scale physical examinations.

Core Clinical Application

Suitable for radiology department, orthopedics, fever clinic, children’s department, operating room, ward/ICU and physical examination/diagnostic centers; capable of completing radiographic examinations of all human body parts including head, limbs, chest, spine, lumbar vertebrae and abdomen, adapting to diverse clinical diagnosis scenarios with different patient flow and examination requirements.

Key Mechanical Movement & Structural Parameters

1. Elevating Table: Table top height 500mm~720mm, dimensions (LWH) 2250 x 810 mm*(500-720mm), maximum load capacity 200 kg; longitudinal travel 1000mm, transverse travel 260mm, supporting 3-dimensional moving.
2. Tube Column & Head: Tube column longitudinal travel 2500mm, rotation range -180°~+180°; tube up and down travel 1500mm (Tube is lowest 35cm from ground); tube head rotation range -90°~+90°.
3. Detector & Bucky Stand: Equipped with Bucky stand; detector mechanism center travel range 1500 mm, center of the detector to the floor 35cm.
4. Grid Configuration: 2 sets of standard high-density wire grids (1 m and 1.8 m focal length), specification 18inch*18inch, 103LP, 10:1; removable design for low-dose examinations.
5. Table-side Control: Digital touch screen control system with over 10 functions, supporting protocol selection, data correction and image review.
6. 6-dimensional Flexible Movement: Tube up and down; Detector of Bucky stand up and down; Table top 3 dimensional moving; Longitudinal moving of spherical column; Tube rotates around the column; Tube Swing around axis.

Core Technical Specifications

Power & High Frequency High Voltage Generator

• Power supply: Voltage 380V±38V, Frequency 50Hz±10Hz, Electrical Power Three phase
• Output Power: 65.5KW, Inverter Frequency 500KHz
• Exposure parameters: Tube voltage 40kV - 150kV (1 kv step), Tube current 10mA - 800mA, mAs 0.1-800mAs
• Collimator: Illumination brightness >=200Lux
• Filter: >=1mmAL

Canon X-ray Tube (Model: E7252X)

• Tube Focus: big/small 1.2mm /0.6mm
• Input power: Big focus 75kW, Small focus 27kW
• Target surface: 12°
• Anode thermal capacity: 300KHU (rotating anode)
• Anode Heat dissipation: 870W
• Tube Capacity: 1250KHU
• Filter: 0.9mm AL/75KV
• Rotary anode speed: 9700rpm
• Work voltage: 40-150KV

Flat Panel Detector (FPD)

• Materials: A-Si(Amorphous Silicon)- CSI
• Active area: 430(H)×430(V)mm
• Pixel matrix: 3072(H)×3072(V)
• Pixel pitch: 139μm
• Spatial resolution: 3.7LP/mm
• A/D: 16bit

Professional Digital Workstation & Software Functions

Equipped with a 19〞imported LCD high resolution medical monitor screen (Brightness and Contrast up to 1000NIT), the workstation fully supports DICOM3.0 standard and integrates complete imaging, processing and management functions, with the following core features:

1. Intelligent Registration: Auto registration, equipped with Dicom Worklist SCU, simplifying input process and improving work efficiency.
2. Efficient Image Acquisition: Automatic window adjustment, Automatic cropping, Automatic transmit.
3. Powerful Image Processing: Supports Tissue equilibrium, W/L adjustment, Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen, pseudo color and other processing functions; provides length/angle/rectangular/elliptic measurement tools; built-in algorithms for image optimization according to different physiological structures and parts of the body; supports multi-angle rotation, mirror image and image zooming.
4. Comprehensive Image Output: DICOM3.0 format for Transmit/Image Storage/Image viewing/Image printing; compatible with PACS/HIS/RIS system; supports Film printer output, Paper report interface (with reference at most 3 images for comments) and USB/DVD driver image copy.
5. Humanized Support: Built-in operation manual via Help button; equipped with microphone and remote exposure control outside the X-ray room.
6. Reliable System Protection: Various infrared facilities to prevent misoperations; overloading system with error code alarming self-protection design; pre-stored more than 200,000 predefined anatomical programs.

Core Product Advantages

1. High-End Imported Configuration & High-Definition Imaging: Adopts Canon brand X-ray tube (Model E7252X) and 17*17inch high-performance FPD (16bit A/D, 3.7LP/mm spatial resolution), matching 65.5KW high-frequency generator, ensuring stable radiation output and high-definition, detail-rich imaging for all body parts.
2. Humanized Table-side Touchable Control System: Synchronized with the workstation, supporting cross-room exam creation in X-ray/control room without repeated settings; with functions of post-exposure image preview, real-time SID stretching display, human graphic body part selection, 3D model Positioning demonstration and Gravity Sensor Automatic Rotate; exclusive Emergency exams access for shooting first then patient registration with automatic record, saving emergency treatment time.
3. Unique Low Positioning Radiography: 35cm minimal distance between X-ray tube and the floor, enabling low profile radiography with wide range tube movement, meeting the shooting needs of special body positions and special patients.
4. 6-Dimensional Flexible Movement & Strong Adaptability: Integrates multi-directional movement of table, tube and detector, adapting to various clinical positioning requirements; 200kg large table load capacity is suitable for all types of patients; the equipment can be flexibly operated in different examination scenarios.
5. Dual Grid Radiation Protection & Safe Operation: Standard 2 sets of removable high-density wire grids (1m/1.8m) for bucky stand and table, effectively filtering scattered rays to improve image quality; removable for children or low-dose parts shooting, reducing radiation damage to doctors and patients; equipped with infrared anti-misoperation facilities and overloading self-protection system, ensuring operational safety.
6. High Efficiency & Strong System Compatibility: Automatic acquisition/processing/transmit functions plus more than 200,000 predefined anatomical programs, realizing standardized and one-click radiography, greatly improving examination efficiency for large-scale physical examinations; full DICOM3.0 compatibility, seamless connection with PACS/HIS/RIS systems, facilitating image sharing, archiving and remote diagnosis.

Ⅰ. Machine Movement Parameters

1. Table type: Elevating table
2. Tabletop height: 500mm~720mm
3. Table column longitudinal travel: 2500mm
4. Tabletop longitudinal travel: 1000mm
5. Tabletop transverse travel: 260mm
6. Tabletop dimensions (LWH): 2250 x 810 mm*(500-720mm)
7. Tube column rotation angle: -180°~+180°
8. Tube lifting travel: 1500mm (Minimum distance from tube to ground: 35cm)
9. Tube head rotation angle: -90°~+90°
10. Maximum table load capacity: 200 kg
11. Table matching grid: 18inch*18inch, 103LP, 10:1, Focal length 1.0m
12. Bucky stand configuration: Equipped
13. Detector mechanism center travel: 1500 mm
14. Distance from detector center to ground: 35cm
15. Bucky stand matching grid: 18inch*18inch, 103LP, 10:1, Focal length 1.8m
16. Table-side control: Digital touch screen control system (over 10 functions)

Ⅱ. Product Specification Parameters

1. Power Supply

• Voltage: 380V±38V
• Frequency: 50Hz±10Hz
• Power type: Three phase

2. High Frequency High Voltage Generator

• Output Power: 65.5KW
• Inverter Frequency: 500KHz
• Tube voltage: 40kV - 150kV (1 kv step)
• Tube current: 10mA - 800mA
• mAs: 0.1-800mAs

3. Collimator & Filter

• Collimator illumination brightness: ≥200Lux
• Filter: ≥1mmAL

4. Canon X-ray Tube (Model: E7252X)

• Tube focus (big/small): 1.2mm /0.6mm
• Input power (big focus/small focus): 75kW /27kW
• Target surface: 12°
• Anode thermal capacity: 300KHU (rotating anode)
• Anode heat dissipation: 870W
• Tube capacity: 1250KHU
• Special filter: 0.9mm AL/75KV
• Rotary anode speed: 9700rpm
• Working voltage: 40-150KV

5. Flat Panel Detector (FPD)

• Material: A-Si(Amorphous Silicon)- CSI
• Active area: 430(H)×430(V)mm
• Pixel matrix: 3072(H)×3072(V)
• Pixel pitch: 139μm
• Spatial resolution: 3.7LP/mm
• A/D conversion: 16bit
