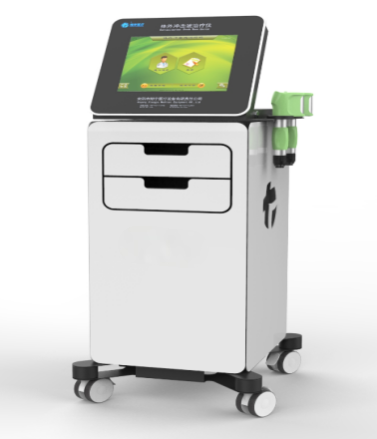

DUAL-GUN INTELLIGENT EXTRACORPOREAL SHOCK WAVE THERAPY DEVICE

WORKING PRINCIPLE

The device generates pneumatic pulsed sound waves through a compressor into precise ballistic shock waves, which act on the human body via air or liquid to produce biological effects. The high‑energy pressure wave releases rapidly to release adhesions and dredge soft tissues for pain relief.

PRODUCT PARAMETERS

Luxurious appearance with cart‑type design for easy mobility.

Dual storage cabinets for separate storage of treatment conductors and accessories.

Imported oil‑controlled compressor for silent operation.

12.1‑inch HD integrated touch screen for easy operation.

Standard dual therapeutic guns, equipped with 8 conductors (deep, variable frequency, acupuncture, focus, divergent) and 3 bullets with 3 ballistics.

Dual guns can work simultaneously.

Pressure range: 1×10² kPa–5.5×10² kPa, adjustable step 0.1×10² kPa; max energy density 7 mJ/mm².

Shock wave frequency: 1–25 Hz, step 0.5 Hz.

Built‑in 200 treatment prescriptions, customizable.

Number of impacts: 100–9900, adjustable step 100.

Equipped with human anatomical diagrams for prescription selection by body part.

Patient database stores over 50,000 records; supports data export and printing via wired/wireless printer.

Built‑in VAS pain scale for static, dynamic and sleep pain assessment.

Voice broadcast for start, stop and treatment end prompts.

Automatic gun identification and detection function.

PRODUCT ADVANTAGES

Stylish cart design with dual storage cabinets; imported silent compressor.

Dual guns with multiple conductors for versatile treatment.

Adjustable pressure, frequency and impact count for personalized therapy.

Intelligent system with pre‑set prescriptions, anatomical guidance, patient database and VAS assessment.

Voice prompts and automatic gun detection enhance usability.

INDICATIONS

Chronic soft tissue injuries: frozen shoulder, tendinitis, bursitis, epicondylitis, tenosynovitis, arthritis, plantar fasciitis, Achilles tendinitis, neck/shoulder/waist muscle pain.

Bone diseases: fracture nonunion, delayed union, femoral head avascular necrosis.

Other conditions: muscle spasm, nerve injury, scar healing, diabetic foot, pressure sore, andrology disorders, postpartum rehabilitation, pelvic floor pain.
