Product info

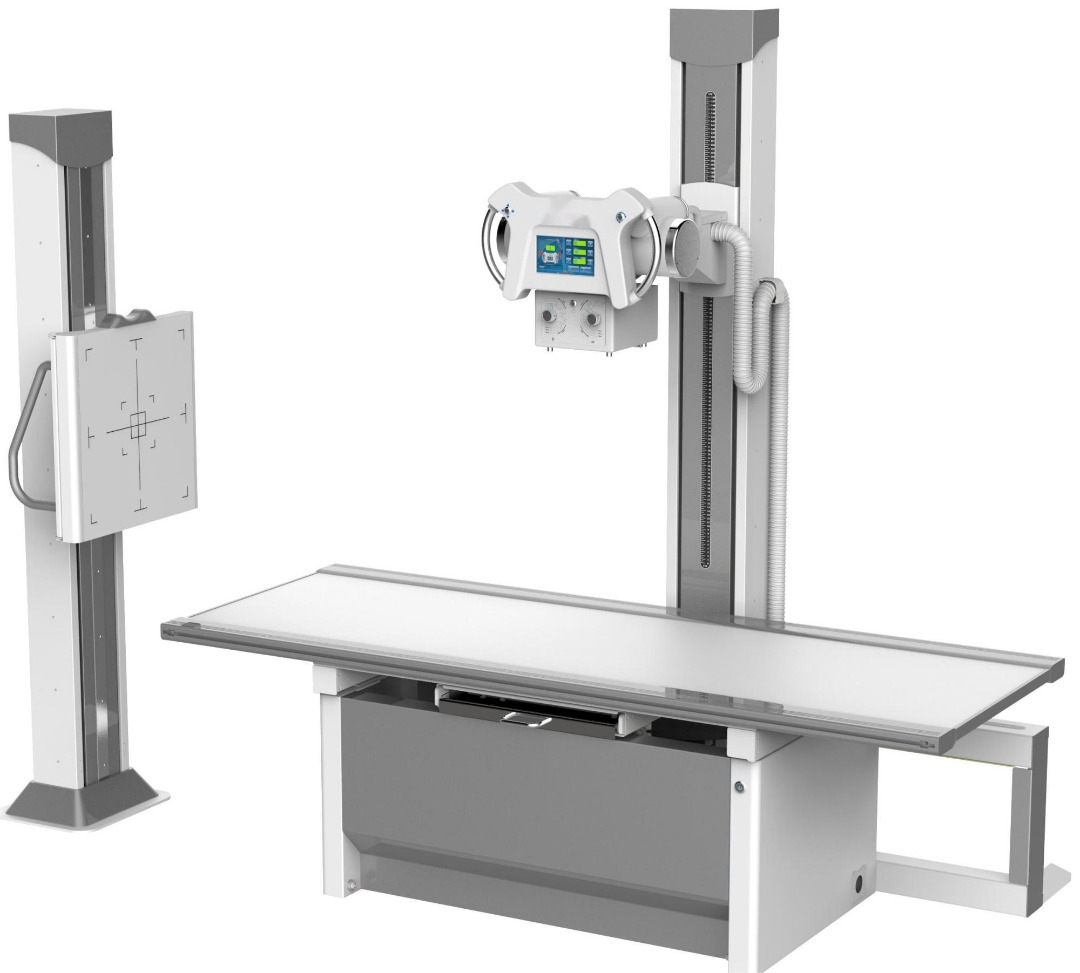

- Product name:Digital medical X-ray photography system
- Product code:CCX50DR-P
Packaging Specifications
- Outer Packaging Size:1 × 1 × 3.71 m
- Gross Weight:791 kg
- Net Weight:0 kg
- Volume:3.71
Description
Floor-mounted Digital Radiography System
Technical Specifications
X-ray Generator (including console)
| Parameter | Specification |
|---|---|
| Output Power | 50KW |
| Power Voltage | 380V ± 38V |
| kV range | 40~150kV |
| mA range | 10~630mA |
| mAs range | 0.1~630mAs |
| Exposure time | 0.002~6.3S |
X-ray Tube
| Parameter | Specification |
|---|---|
| Small focus | 0.6 |
| Large focus | 1.2 |
| Anode speed | 3000r/min |
Collimator
| Parameter | Specification |
|---|---|
| Inherent filtration | 1.0mm Al/75kV |
| Light Source | LED |
Radiographic Table
| Parameter | Specification |
|---|---|
| Top Table Size | 2100×800×650mm |
| Bucky Size | 18×18inch |
| Table longitudinal movement | ≥900mm |
| Cassette Movement Distance | ≥500mm |
Vertical Chest Stand
| Parameter | Specification |
|---|---|
| Vertical moving range | ≥1200mm |
| Bucky Size | 18×18inch |
Wire Flat Panel Detector
| Parameter | Specification |
|---|---|
| Size | 17×17inch |
| Scintillator | CSI |
| Pixels | 3072×3072 |
| Resolution | 3.6 |
| AD Conversion | 16 |
Computer & LCD
| Parameter | Specification |
|---|---|
| CPU | ≥2.8GHz |
| Memory | ≥4GB |
| Disk Capacity | ≥1T |
| Medical LCD | 23inch |
System Features
X-ray Generator
- Rich DR upgrade reserve interface
- Fault self-diagnosis and protection
- Automatic calibration of tube current
- Infrared photoelectric switch for four-way table
- X-ray tube with filament dormancy function
- AEC function (different ionization chamber optional)
- Analog-digital double-loop control for simple operation and high intelligence
- High kV, high current, high power, strong penetration, suitable for obese patients
Profession Acquisition Software
- Supports multi-languages
- Supports professional tools
- Supports different brands of X-ray generators
- Supports RIS/PACS/DICOM Printer connection
Professional DR Workstation
- Image capture
- Print and storage
- Image post-processing
- Patient management
Application
- Applicable to orthopedics, emergency room, operating room, etc.
- Supports medical diagnosis of human head, limbs, chest, spine, lumbar spine
