CCX59A 85KW 1000mA Floor-Mounted Elevating Table Digital Radiography (DR) X-ray Machine

Core Overview

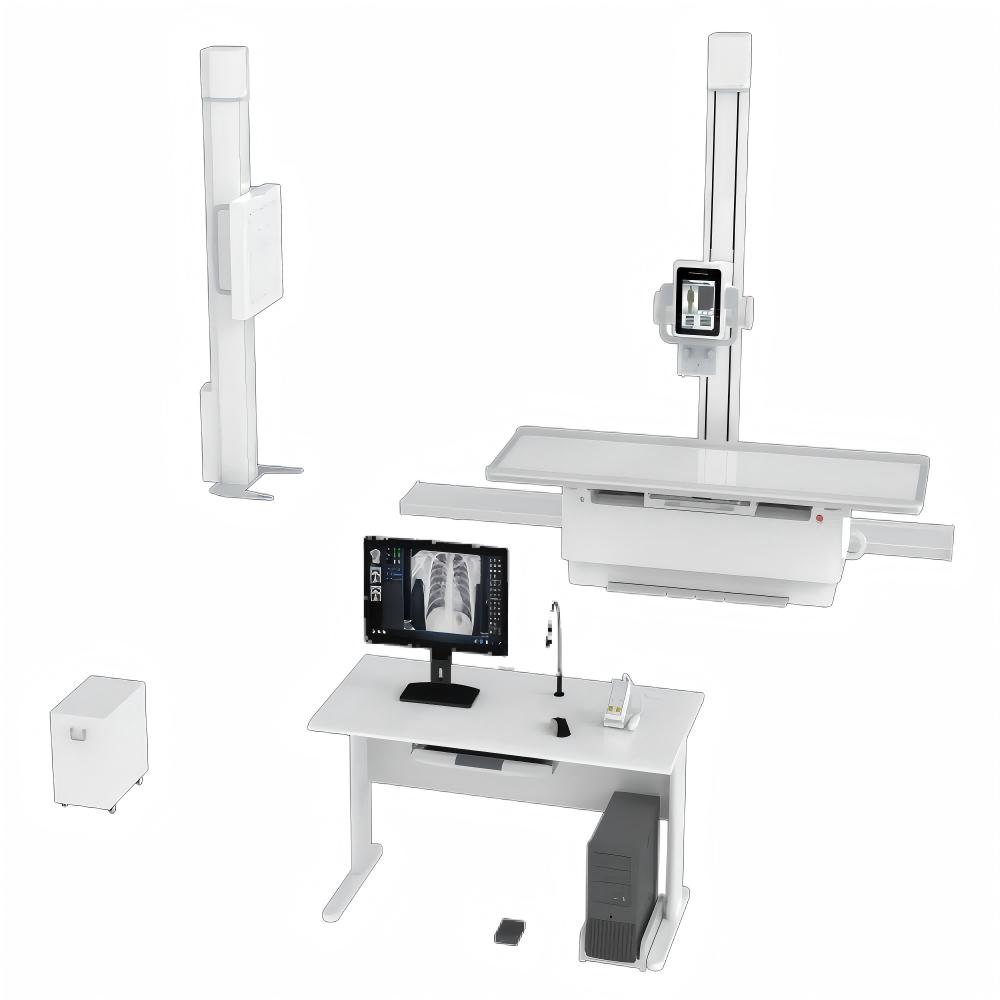

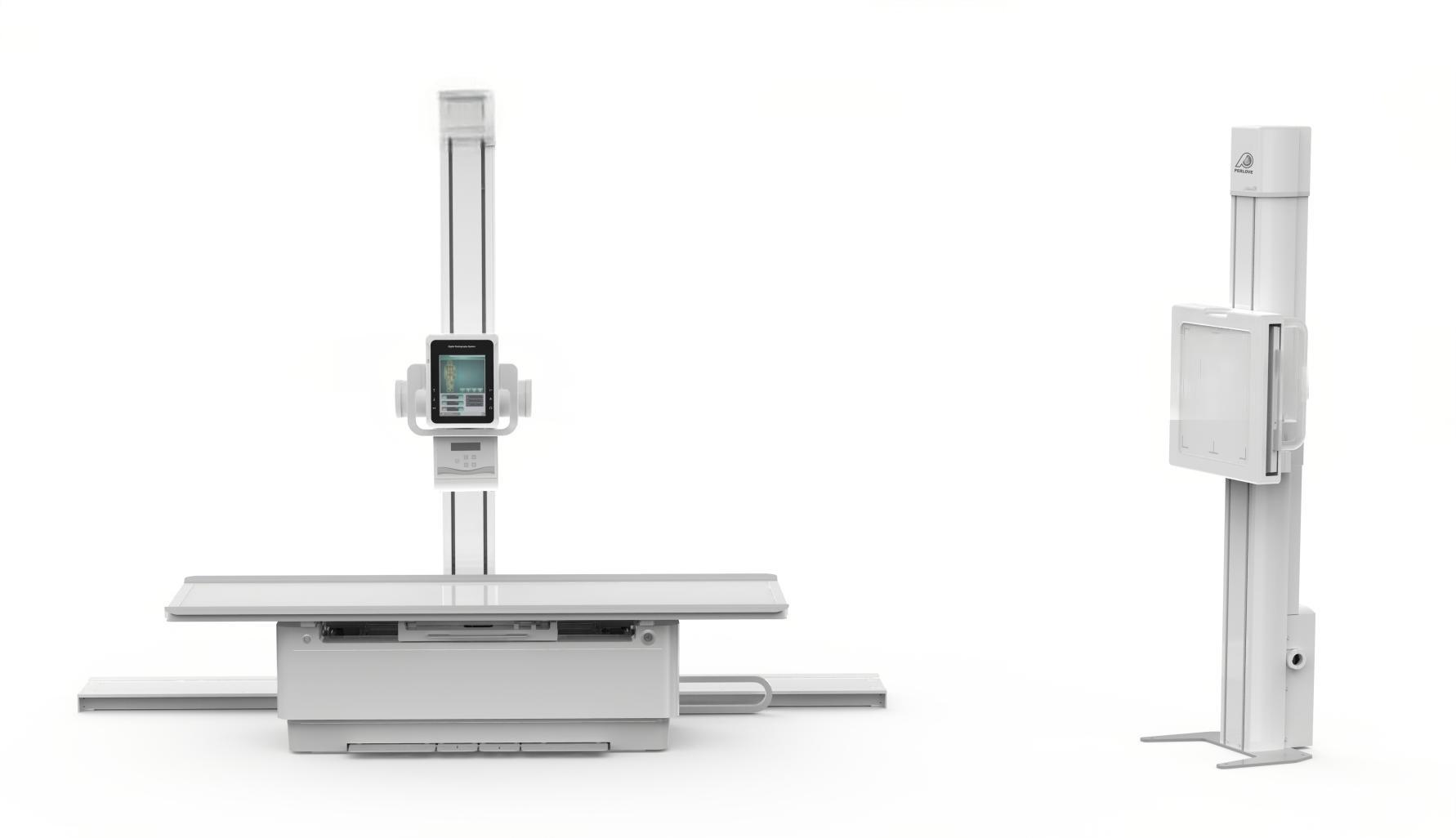

CCX59A is a high-end floor-mounted DR X-ray machine with core configurations of 85KW high-frequency high-voltage generator, 1000mA tube current, imported Canon X-ray tube and 17*17inch wireless flat panel detector (FPD), matched with an elevating table. It features ultra-high power output, flexible multi-dimensional mechanical movement, humanized table-side touch control and a powerful professional digital workstation, supporting high-definition radiographic examinations of all human body parts. With easy operation, high efficiency and comprehensive radiation protection, it is widely applicable to multiple clinical departments and meets the high-demand imaging needs of routine diagnosis, emergency treatment, intraoperative testing and large-scale physical examinations.

Core Clinical Application

Suitable for radiology department, orthopedics, fever clinic, children's department, operating room, ward/ICU and physical examination/diagnostic centers; capable of completing radiographic examinations of all human body parts including head, limbs, chest, spine, lumbar vertebrae and abdomen, adapting to diverse clinical diagnosis scenarios with different patient flow and examination needs.

Key Mechanical Movement & Structural Parameters

1. Elevating Table: Height adjustable 500mm~720mm, size 2250×810mm, maximum load capacity 200kg; longitudinal travel 1000mm, transverse travel 260mm, supporting 3-dimensional movement of the table top.
2. Tube Column & Head: Longitudinal travel of tube column 2500mm, rotation range -180°~+180°; tube up/down travel 1500mm (35cm minimum distance from ground for low positioning radiography); tube head rotation range -90°~+90°.
3. Detector & Bucky Stand: Equipped with Bucky stand; detector mechanism center travel range 1500mm, 35cm from detector center to the floor.
4. Grid Configuration: 2 sets of standard removable high-density wire grids (1m/1.8m focal length), specification 18inch*18inch, 103LP, 10:1; removable for low-dose examinations such as for children.
5. Table-side Control: Multi-functional digital touch screen control system (over 10 functions), supporting protocol selection, data correction, image review and real-time display of operation parameters.
6. Additional Movement: Supports up/down movement of Bucky stand detector, longitudinal movement of spherical column, rotation and swing of tube around the column/axis.

Core Technical Specifications

Power & High-Frequency High-Voltage Generator

• Power supply: 380V±38V, 50Hz±10Hz, three phase
• Output power: 85KW, inverter frequency 500KHz
• Exposure parameters: Tube voltage 40kV-150kV (1kV step), tube current 10mA-1000mA, mAs 0.1-1000mAs
• Collimator & Filter: Illumination brightness ≥200Lux, filter ≥1mmAL

Imported Canon X-ray Tube (Model E7254FX)

• Dual focus: 1.2mm (big)/0.6mm (small), input power 102kW/40kW
• Structural & performance parameters: Target surface 12°, rotating anode speed 9700rpm; anode thermal capacity 400KHU, heat dissipation 1180W, total tube capacity 1664KHU
• Special filter: 0.8mm AL/75KV, working voltage 40-150KV

Wireless Flat Panel Detector (FPD)

• Material: A-Si(Amorphous Silicon)-CSI
• Active area: 430(H)×430(V)mm (17*17inch), pixel matrix 3072×3072, pixel pitch 139μm
• Imaging performance: Spatial resolution 3.7LP/mm, 16bit A/D conversion, capturing subtle tissue details for high-definition imaging

Professional Digital Workstation & Software Functions

Equipped with a 19〞imported high-resolution medical LCD monitor (brightness/contrast up to 1000NIT, far superior to ordinary 400NIT LCD screens), the workstation fully supports DICOM3.0 standard and integrates complete imaging and management functions:

1. Intelligent Registration: Auto registration with DICOM Worklist SCU, simplifying manual input and improving work efficiency.
2. Efficient Image Acquisition: Automatic window adjustment, cropping and transmit, realizing one-click fast imaging.
3. Powerful Image Processing: Rich processing tools (tissue equilibrium, W/L adjustment, Gamma correction, noise reduction, sharpening, pseudo color, etc.) and measurement functions (length, angle, area, etc.); built-in optimization algorithms for different human physiological structures and parts, supporting multi-angle rotation, mirroring and local magnification.
4. Comprehensive Image Output: DICOM3.0 format transmission (compatible with PACS/HIS/RIS systems); support film printer output, paper report (up to 3 reference images) and USB/DVD image copy/storage.
5. System Support & Protection: Built-in operation manual; equipped with microphone, remote exposure control (outside X-ray room) and infrared anti-misoperation facilities; overloading system with error code alarm and self-protection design; pre-stored more than 200,000 anatomical programs for standardized exposure parameter selection.

Core Product Advantages

1. High-End Configuration & Superb Imaging Performance: 85KW ultra-high power generator matches imported Canon high-performance X-ray tube, ensuring stable radiation output, meeting imaging needs of obese patients and thick tissue parts, and supporting long-time continuous high-intensity exposure; 17*17inch wireless FPD with 16bit A/D conversion delivers high-definition, high-contrast images, and wireless design improves clinical operation flexibility.
2. Humanized Table-side Touch Control System: Synchronized with the workstation, supporting cross-room exam creation (X-ray/control room) without repeated settings; with functions of post-exposure image preview, real-time SID stretching display, human graphic body part selection, 3D model positioning demonstration and gravity sensor automatic rotation; exclusive emergency exam access (shoot first then register with automatic record) for saving emergency treatment time.
3. Unique Low Positioning Radiography & Flexible Movement: 35cm minimum distance between X-ray tube and ground enables low profile radiography, matching wide-range tube movement to meet shooting needs of special positions; 3-dimensional table top movement plus multi-directional movement of tube/detector adapts to various clinical positioning requirements, with 200kg large table load capacity for all types of patients.
4. Dual Radiation Protection & Safe Operation: 2 sets of removable high-density wire grids effectively filter scattered rays to improve image contrast, and can be removed for low-dose examinations to reduce radiation exposure for doctors and patients; equipped with infrared anti-misoperation facilities, overloading alarm, self-protection design and remote exposure control, fully ensuring the safety of medical staff and equipment operation.
5. Efficient Integrated Workflow & Strong Compatibility: Automatic acquisition/processing/transmit functions plus over 200,000 predefined anatomical programs realize standardized and one-click radiography, greatly improving examination efficiency for large-scale physical examinations; full DICOM3.0 standard compatibility realizes seamless connection with hospital information systems, facilitating image sharing, archiving and remote diagnosis.
