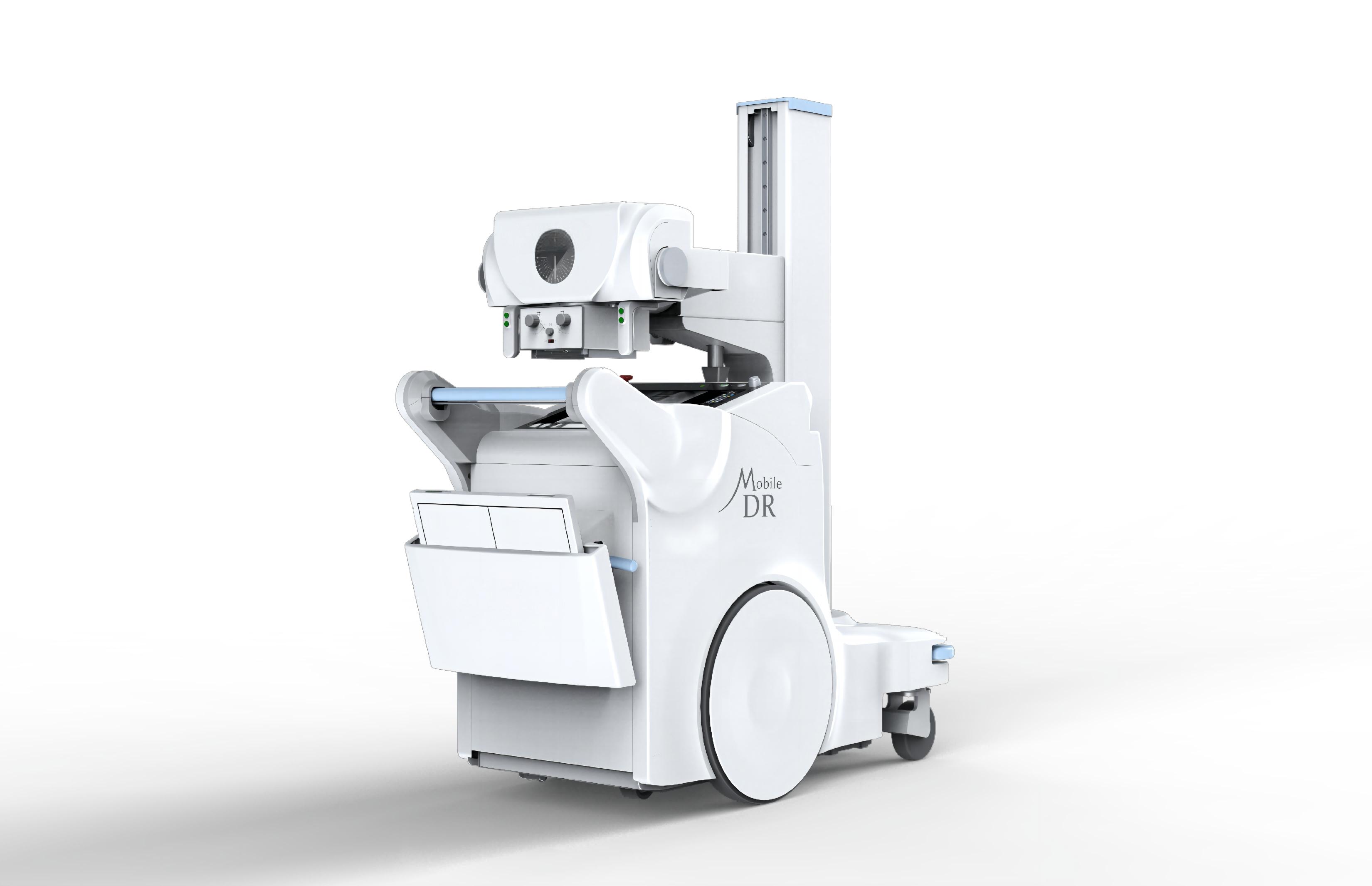

CCX52A 50KW 500mA Mobile Digital X-ray Machine (DR)

Core Overview

CCX52A is a 50KW/500mA mobile digital X-ray machine featuring the core advantages of mobility, accuracy and versatility, designed for flexible use in radiology departments, wards, ICUs and operating rooms. It integrates a high-power high-frequency generator, high-performance wireless flat panel detector (FPD) and intelligent dose control technology, delivering high-definition diagnostic images with low radiation dose. With a compact ergonomic design, ultrasonic precise positioning, dual independent power supply and humanized intelligent control system, it supports full-body digital radiography examinations, adapts to various complex clinical environments, and greatly improves the efficiency of mobile radiographic diagnosis.

Core Clinical Capabilities

Supports comprehensive digital radiography examinations for all anatomical regions, including chest, extremity (elbow, ankle, etc.), spinal (lumbar spine, lateral lumbar spine) and other parts imaging, meeting the mobile diagnosis needs of in-patient ward rounds, ICU critical care, operating room intraoperative testing and emergency on-site examination.

Key Technical Advantages & Core Configuration

1. High-Definition Imaging with Strong Diagnostic Value

• 50kW High-Frequency HV Generator: Stable radiation output, matching high-performance X-ray tube, ensures consistent high-quality imaging and clear clinical diagnostic images for diverse positioning requirements.
• High-Performance Wireless FPD: Standard 17×17-inch large field of view detector with 16-bit grayscale, capturing subtle tissue variations and reproducing sharp image details; optional 10×12-inch compact lightweight FPD, specially suitable for infant incubators and NICUs.
• Advanced Image Post-Processing: Built-in professional algorithms enhance image quality while maintaining diagnostic accuracy at low radiation doses, highlighting key lesion information.

2. Intelligent Dose Optimization & Radiation Safety

• Intelligent Dose Control Technology: Automatically adapts radiation parameters according to human anatomical regions and patient morphology, optimizing dose efficiency and significantly reducing unnecessary radiation exposure for patients and medical staff.
• Dual Exposure Modes: Handswitch mode and wireless remote shielded control mode, allowing operators to maintain a safe distance during exposure, further minimizing medical staff's radiation intake and ensuring seamless clinical workflow.

3. Reliable Power Supply for Uninterrupted Mobile Work

• Dual Independent Power Groups: Separate power supplies for mobility and exposure, with a specialized supercapacitor system for exposure (fast charging, low reliance on external power sources); single cable connection enables simultaneous charging of supercapacitor and lithium battery, adapting to wards, emergency rooms, ICUs and other environments without fixed power supply.
• Large Heat Capacity X-ray Tube: Superior heat dissipation performance, supporting extended continuous operation and meeting high-frequency mobile examination needs.
• Pluggable FPD Battery: Equipped with backup battery, swapable for uninterrupted operation; high-performance batteries with fast charging and long cycle life, ensuring continuous clinical workflow.

4. Compact Flexible Design & Precise Positioning

• Motor Frame & Labor-Saving Movement: Configured with motor frame, supporting wide-range rotation of the column and horizontal free expansion/contraction of the arm; can complete shooting in small spaces, meeting various clinical positioning needs.
• Ultrasonic Distance Measurement: Equipped with ultrasonic measuring beam limiter, digitally displaying SID photography distance, assisting rapid and precise positioning without frequent patient movement.
• Lightweight & Maneuverable: Dual motor drive with excellent mechanical design, one-hand operable by operators; smooth and quiet motor operation, low traveling noise, avoiding disturbing patients in quiet wards.

5. Humanized Intelligent Control & Integrated Workstation

• Integrated All-in-One Workstation: Integrates image acquisition system and X-ray generator control system, with functions including patient management, image acquisition/processing/observation and case reporting; supports DICOM3.0 standard, realizing image transmission with PACS system for seamless hospital information integration.
• Friendly Human-Computer Interaction: Large-size graphical touch screen with understandable icons, shortening the machine running-in period for medical staff and saving training time/cost; built-in preset parameters for standardized postures, graphical display of common clinical postures, supporting re-editing and memorizing of posture parameters for personalized exposure parameter adjustment.
• Ergonomic Design: Conforms to human body structure, relieving muscle soreness and physical fatigue caused by long-term operation, helping improve medical staff's work efficiency.

Additional Practical Design & Strong Environmental Adaptability

1. Anti-Collision Protection: The front of the machine is equipped with an automatic collision protection device, effectively protecting both personnel and the equipment during mobile use.
2. No Special Installation Required: Does not need to modify on-site facilities or install ground rails/hangers; can be used in any location with proper radiation protection, with strong adaptability to complex clinical environments.
3. High Mobility & Productivity: Agile and flexible movement, suitable for flexible use in hospital corridors, wards, ICUs, outpatient and emergency departments, fully satisfying the high-frequency mobile radiographic diagnosis needs of medical institutions.
