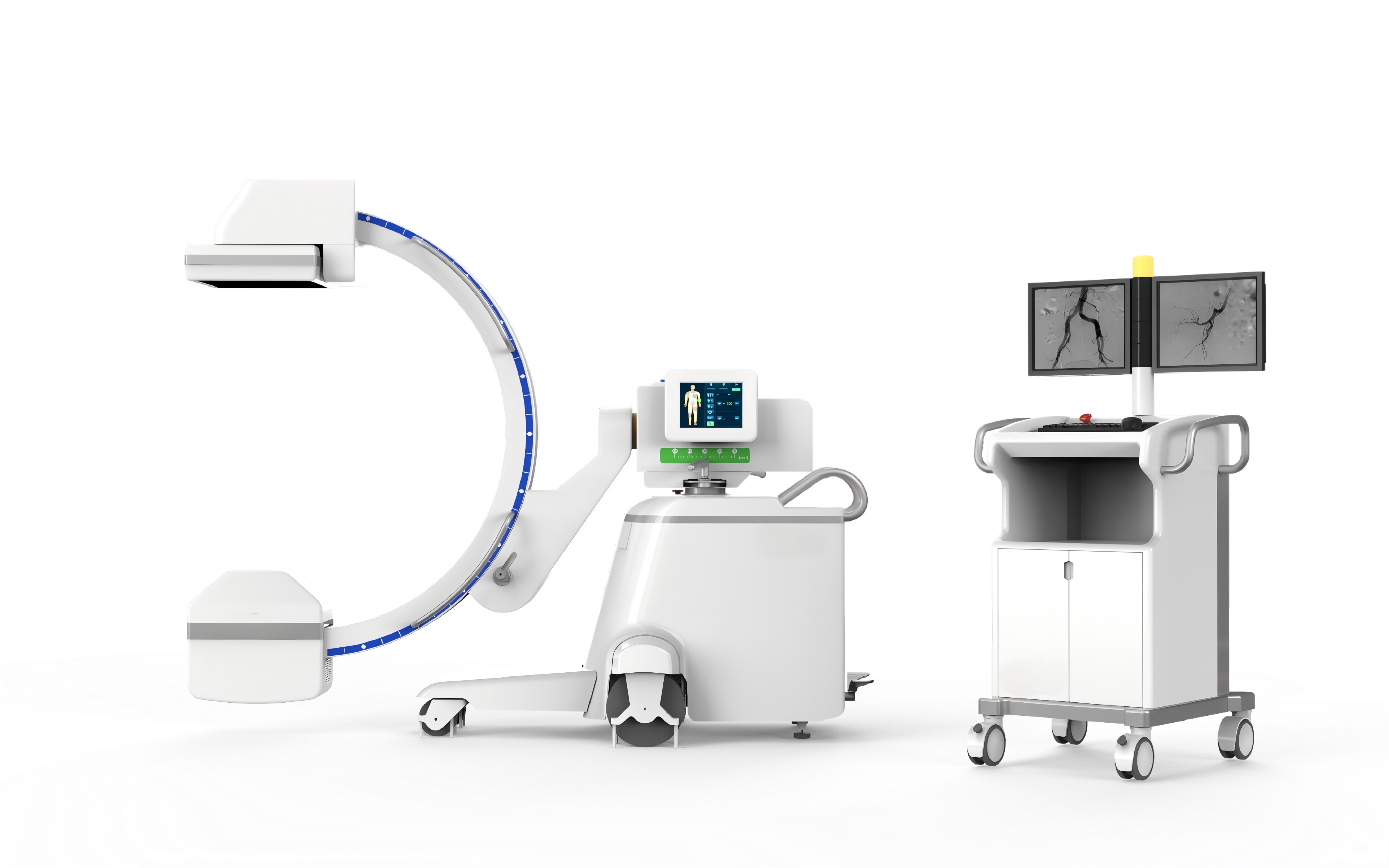

CCX7100A Digital Dynamic Flat Panel Interventional C-arm Machine

Core Overview

CCX7100A is a high-performance HF mobile digital large flat-panel C-arm system from a manufacturer with 30+ years of technical accumulation and over 200 R&D patents, integrating radiography, fluoroscopy and DSA functions. It features a high-quality stable digital image chain, multiple radiation dose protection technologies, flexible five-dimensional electric mobile design and professional interventional imaging capabilities, with low operating room space requirements and strong mobility. Configured with a 30×30cm large flat-panel detector, 25kW high-frequency generator and complete image processing system, it delivers high-definition distortion-free images while significantly reducing radiation exposure, and supports long-time X-ray fluoroscopy with unique vascular image processing functions. Suitable for a variety of clinical interventional surgeries and conventional examinations, it has a global after-sales service network and is an ideal device for interventional procedures in various departments.

Basic Product Parameters

• Packing: 2 cases (1#3150×1450×1610mm, 2#1070×700×830mm), total volume 8.5m³
• Weight: Gross weight 900kg, Net weight 630kg
• Power Supply: 220V±22V

Core Clinical Applications & Multi-functions

Wide Clinical Applicability

Covers orthopedics, general surgery, traumatic surgery, urology, spinal surgery, pain surgery, gastroenterology, gynecology and peripheral angiography, applicable for tumor/non-vascular interventional surgery, ERCP, vascular stenting, uterine artery embolization, ureteral calculi therapy, orthopedic reduction, vertebroplasty and other procedures, as well as head, chest, abdomen and limb examinations.

Core Functional Advantages

1. DSA Function: Digital subtraction angiography removes bony/dense soft-tissue interference, accurately depicting blood vessels, and is essential for vascular interventional radiology.
2. High-Definition Spot Imaging: Realizes visual high-definition spot imaging, avoiding missed/misdiagnosis caused by blind shots.
3. Bedside & Table-side Control: Special bedside controller completes equipment motion, exposure parameter adjustment and image viewing/saving; table-side control system with angiography kit (Land mark, Road map) supports interventional surgery operations.
4. High-Pressure Injector Interface: Reserved interface for automatic contrast agent injection during fluoroscopy, simplifying workflow and obtaining high-quality images quickly.
5. Adjustable FPD & SID: 30×30cm flat panel detector supports wide-range electric lifting, flexible SID adjustment (955~1155mm) to get closer to the inspection area for clearer fluoroscopic images.

Key Technical Configuration & Performance

1. Core Hardware Configuration

表格

2. Key Technical Parameters

• Radiography: Tube voltage 40kV~125kV, mAs 0.1mAs~320mAs
• C-arm Movement: Slide angle ≥120° along rail arc; rotation ±180° along horizontal axis; left/right swing ±15°; forward/backward 200mm; up/down 400mm; opening 744~944mm; depth 826mm; guide wheels 360° rotatable, main wheel 0~90°
• Imaging System: Real-time zoom/rotation/mirror, sub-window display, single frame/sequence image storage/echo; support labeling, measuring, window adjustment and 90° rotation for post-processing

3. High-Quality Digital Image Chain

1. Large-Size Flat Panel Detector: 30×30cm field of view (doubles conventional size), covers thoracic/abdominal/pelvic cavity in full, avoids overlap/omission, reduces exposure time and radiation dose; small pixel size ensures distortion-free high-definition images, 16-bit gray scale realizes optimal imaging of soft/bone tissue.
2. 25kW High-Frequency Generator: Stable output, meets pulse fluoroscopy imaging requirements for obese patients/thick high-density tissue parts, and satisfies high-power instantaneous exposure for digital radiography (suitable for peripheral/comprehensive interventional treatment).
3. High Heat Capacity X-ray Tube: 1000kJ thermal capacity with intelligent heat capacity management and advanced heat dissipation technology, greatly improving continuous working ability and supporting multiple interventional procedures in succession.
4. Powerful Image Processing: Built-in automatic optimization/enhancement module, real-time histogram equalization/Gamma correction, and rich functions (noise reduction, smoothing, sharpening, ROI, etc.); dedicated medical LCD display presents clear, multi-level clinical images with high contrast.

Core Product Advantages

1. Multiple Radiation Dose Protection & Safety

• Intelligent Pulse Control: Intelligently adjusts pulse width, improves instantaneous X-ray quantity and single-frame image quality, extends continuous fluoroscopy time to more than 3 times under the same condition.
• Intelligent Dose Control: Precisely adjusts radiation dose according to different body types/parts, ensuring clear images with low radiation in any clinical environment.
• Collimator Preview Function: Previews effective exposure field of view on the screen, reduces unnecessary exposure and radiation damage to medical staff/patients.
• Removable High-Density Grid: Effectively filters scattered X-rays to improve image contrast; manually pullable for dose-sensitive people, significantly reducing exposure dose.

2. Flexible Five-Dimensional Electric Mobile Design

• Five-Dimensional Electric Control: Realizes electric lifting/horizontal/orbital/rotary motion and electric FPD lifting, adapts to different surgical beds, and facilitates surgeons to adjust the best position angle/orientation/radiography distance.
• Space-Saving & Easy Installation: Only ~2m² footprint, saves operating room space for composite operating room construction; no need to modify operating rooms or install ground rails/hangers, reducing initial construction costs of intervention departments.
• Free Mobility: Can be moved to any operating room freely, greatly improving equipment utilization rate.

3. Complete Image & Workflow System

• Integrated Image Processing/Report/Print: Supports real-time image optimization, post-processing measurement/labeling, customizable diagnostic terms for report writing, and DICOM-standard medical film layout/printing.
• DICOM3.0 Compatibility: Digital workstation with DICOM3.0 port realizes seamless connection with hospital PACS system, facilitating image transmission and archiving.
• Humanized Operation: Dual human graphical touch screens, hand controller for mechanical movement and double exposure foot brakes, simple and convenient operation for clinical staff.

Brand Strength & After-Sales Service

1. Strong R&D & Quality: 30+ years of technical accumulation, over 200 R&D patents, perfect quality control system, and nationwide service network in China.
2. Global Professional After-Sales: Professional pre-sales/in-sales/after-sales service team; more than 100 overseas local engineers in 60 countries + 100+ Chinese after-sales engineers serving the global market.
3. Safe Logistics: Cooperates with professional sea/air/land logistics providers to ensure safe and reliable delivery of the equipment.
