Product info
- Product name:Dental Soft Tissue Laser 7w/980nm
- Product code:CCDL7
Packaging Specifications
- Outer Packaging Size:0.52 × 0.48 × 0.21 m
- Gross Weight:9 kg
- Net Weight:0 kg
- Volume:0.05
Description

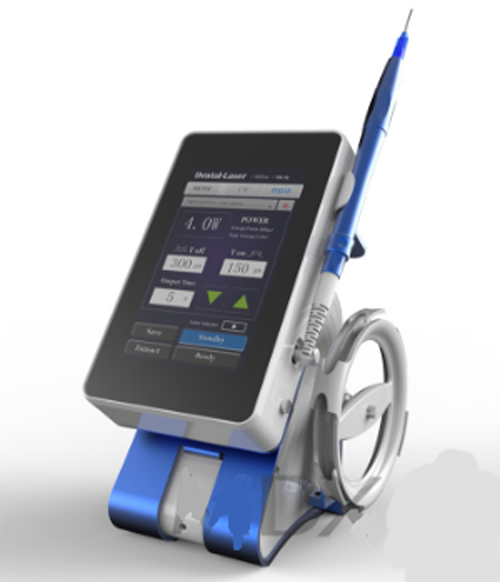

CCDL7 Dental Soft Tissue Laser (7W/980nm)
Core Overview
CCDL7 is a portable, high-precision dental diode laser dedicated to dental soft tissue treatment, featuring a 980nm wavelength and 7W maximum continuous power output. It supports CW/pulsed dual operation modes with a high repetition rate of 10,000Hz, and is equipped with a 5-inch full touch screen, wireless foot pedal and multi-spec delivery fibers. With an ultra-compact size and light weight (only 0.8kg), it realizes flexible and precise operation for dental soft tissue procedures, and adapts to different power grid conditions with wide voltage support, being an ideal professional laser device for dental clinics and stomatological institutions.
Core Technical Specifications
| Category | Parameter Details |
|---|---|
| Laser Type | Dental Diode Laser (for soft tissue treatment) |
| Model | CCDL7 |
| Max CW Power | 7W |
| Wavelength | 980nm |
| Operation Mode | CW (continuous) / Pulsed dual mode |
| Pulse Performance | Pulse duration: 50μs-1s; Repetition rate: 10,000Hz |
| Pilot Beam | 3mW/635nm Red Diode (red light positioning) |
| Delivery System | 200μm, 300μm, 400μm, 600μm fibers (4 specifications optional) |
| Control Mode | 5" Full Touch Screen (intuitive parameter adjustment) |
| Laser Activation | Wireless Foot Pedal (free operation, no cable constraints) |
| Power Supply | AC 110V~220V±20%, 50Hz~60Hz±1Hz (wide voltage adaptation) |
| Physical Parameters | Dimensions (LWH): 1559335mm; Net weight: 0.8kg |
Core Product Advantages
- Specialized for Dental Soft Tissue: 980nm dedicated wavelength matching 7W power output is highly suitable for dental soft tissue treatment scenarios, ensuring precise, efficient laser action with good tissue compatibility.
- Flexible Operation Modes: Supports CW/pulsed dual working modes, with pulse duration adjustable from 50μs to 1s and 10,000Hz high repetition rate, meeting the diverse parameter requirements of different dental soft tissue procedures.
- Precise Positioning & Delivery: 635nm red diode pilot beam (3mW) realizes accurate laser positioning to avoid misoperation; 4 optional delivery fiber specifications (200/300/400/600μm) match different treatment handpieces/tips for flexible clinical application.
- Ultra-portable & Space-saving: Ultra-compact size (1559335mm) and ultra-light weight (0.8kg), easy to hold and operate by hand, convenient to carry and store, and takes up almost no clinic bench space.
- Humanized & Convenient Control: 5-inch full touch screen for simple and intuitive parameter setting and adjustment; wireless foot pedal for hands-free laser activation, freeing up the operator's hands for more precise surgical operation.
- Strong Environmental Adaptability: Wide voltage design (110V~220V±20%) and adaptive frequency (50Hz~60Hz±1Hz), compatible with power grid conditions of different countries and regions, with no additional power conversion required.
- Stable & Reliable Performance: Standardized diode laser core design, with stable power output and consistent pulse waveform, ensuring the safety and effectiveness of dental soft tissue laser treatment.
Core Clinical Application
Specialized for dental soft tissue treatment in stomatological clinical practice, applicable to various dental soft tissue procedures that require precise laser intervention, meeting the daily clinical needs of dental clinics and stomatological institutions for soft tissue laser treatment.
