Product info

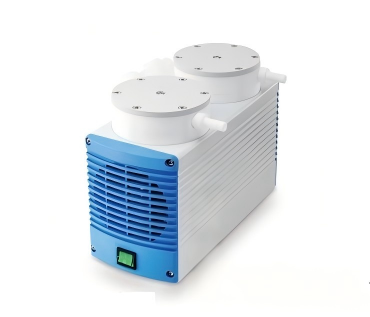

- Product name:Corrosion-resistant Diaphragm Vacuum Pump
- Product code:C260526161
Packaging Specifications
- Outer Packaging Size:0.49 × 0.3 × 0.26 m
- Gross Weight:10.15 kg
- Net Weight:0 kg
- Volume:0.04
Description
Optional Add-ons
Distillation System Connection
Chemistry-design Diaphragm Pump
- Maximum Vacuum: 13 mbar
- Work Mode: Continuous Operation
- Nozzle Size: 8 mm
- Power: 95 W
- Motor Speed: 1450 rpm
- Noise: 50 dB
- Flow Rate:| mbar | 1000 | 880 | 750 | 600 | 480 | 280 || :--- | :---: | :---: | :---: | :---: | :---: | :---: || L/min | 25 | 22 | 20 | 12 | 7.5 | 5 |
Regulator / Moisture
| Cat. No. | Description |
|---|---|
| 18900186 | Material: PVDF, PTFE, ABS, Borosilicate Glass, Stainless Steel |
Seals and Other Accessories
| Cat. No. | Description |
|---|---|
| 18204186 | Vacuum seal (PTFE+Viton) |
| 18204187 | Evaporation bottle spring, used with 18204186 |
| 18900190 | Evaporation flask clip (red), NS29/42 |
| 18900188 | Evaporation flask clip (green), NS24/40 |
| 18901001 | Evaporation flask clip (black), NS24/40, adapted to 3L/5L evaporating flask |
| 18901002 | Evaporation flask clip (black), NS29/32, adapted to 3L/5L evaporating flask |
| 18900871 | Cooling water silicone hose line |
| 18900879 | Secondary Condenser Component |
| 18900744 | Rotary Evaporator Protective Shield Assembly (compatible with RE100-Pro) |
| 18900789 | Rotary Evaporator Protective Shield (RE100-S) |
