Description

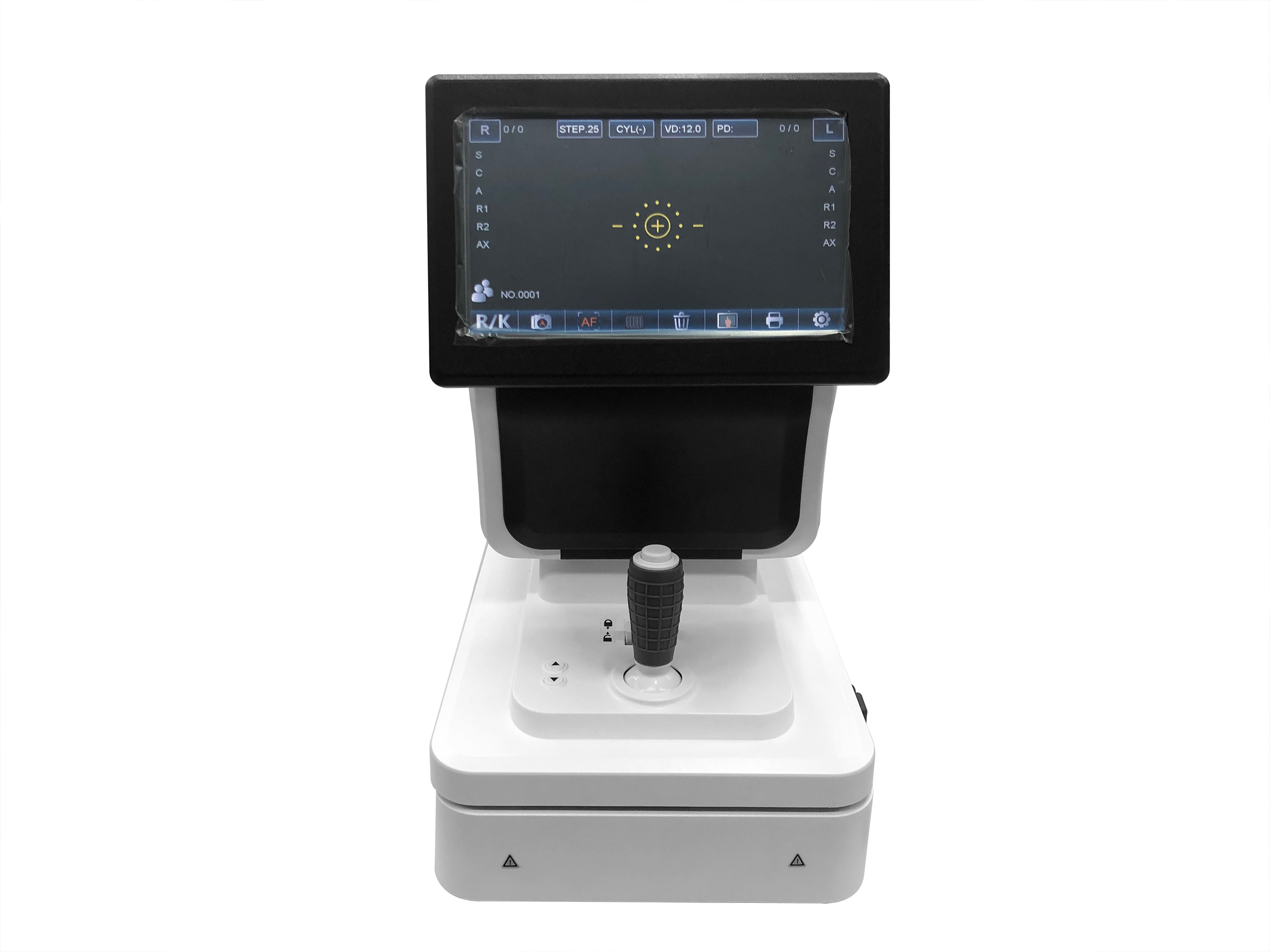

Automatic Refractometer

CE FDA

New Technologies And Powerful Functions Simple operation interface provides with accurate operation experience.

Features

Hartman Type Refractor

High Definition Clear Retina Image with New Optics

Adapted High Speed Image Acquisition and Image Identification

Flip Monitor

Auto Horizontal, Vertical and Back Force Motorized Focus

High Speed and Auto Cut Printer

Adjustable LCD Touch Screen

High brightness and contrast 9” wide color TFT LCD screen, smooth touch mode, different angle can be adjusted

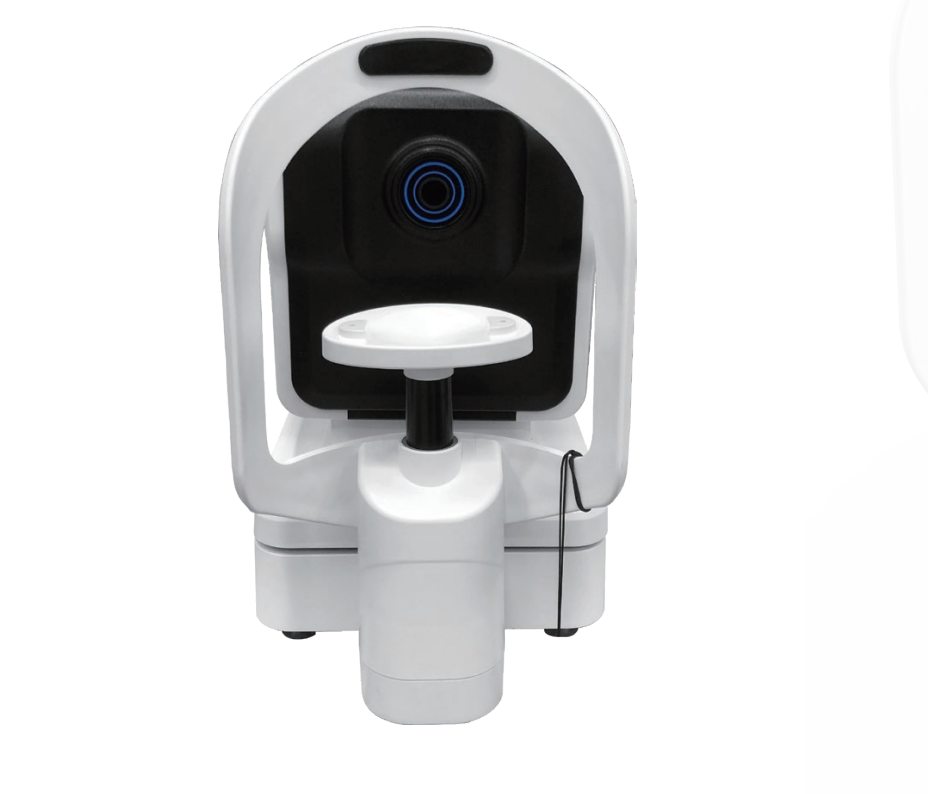

Motorized Chin Rest

By pressing the Up & Down buttons, the users can set and adjust the height of the patient’s chin freely and quickly

Data Record

3 groups of data stored each measurement, maximum 10 groups of data can be stored

UP/down Auto Tracking

Measure peripheral keratometry precision of eyes with contact lenses fitting

Hartmann Imaging Processing Technology

Lenslet Array creates a lot of separated focal spots on the lens as pattern, of which subdivide the imaging for extreme precision processing

Operation Interface Function

STEP.25CYL(-) VD:12.0:

Printing

Data Record

Menu Set

Manual Measuring

Keratometry

Auto Measuring

Up/down Auto Tracking

Intuitive icons provide the user an easier operating circumstances, and make the measurement become more convenient and the data to be measured more accurate and fast

Specification

VD Range: 0.0, 12.0, 13.75, 15.0

Spherical Range: -20.00D ~ +20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 Increments)

Cylinder Range: 0.00D ~ +10.00D (0.06, 0.12, 0.25 Increments)

Axis: 1° ~ 180° (1° Increments)

Cylinder Symbol: -, +, ±

PD: 10 ~ 86mm

Mini Pupil Size: 2.0mm

Average Measurement Time: <0.5 seconds

Pupil Distance: 2.00 - 8.00mm

Max Brightness: <30uw (safety Assure)

Curvature Radius: 5.0 ~ 10.0mm (0.01mm Increments)

Refractive Power: 33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375)

Corneal Power: 0.00D ~ -15.00D (0.06D / 0.12D / 0.25D Increments)

Date Save: 10 Group Left/Right Eye

Target: Auto Fog

Monitor: 9-inch TFT Touch Screen (Flip)

Printer: 57mm Width, Auto Cut

Power: AC 100 ~ 250V, 50 / 60Hz, Wide Voltage

Net Weight: 22 Kgs

Gross Weight: 26.5 Kgs

Packing: (L) 680mm x (W) 400mm x (H) 640mm
