Description

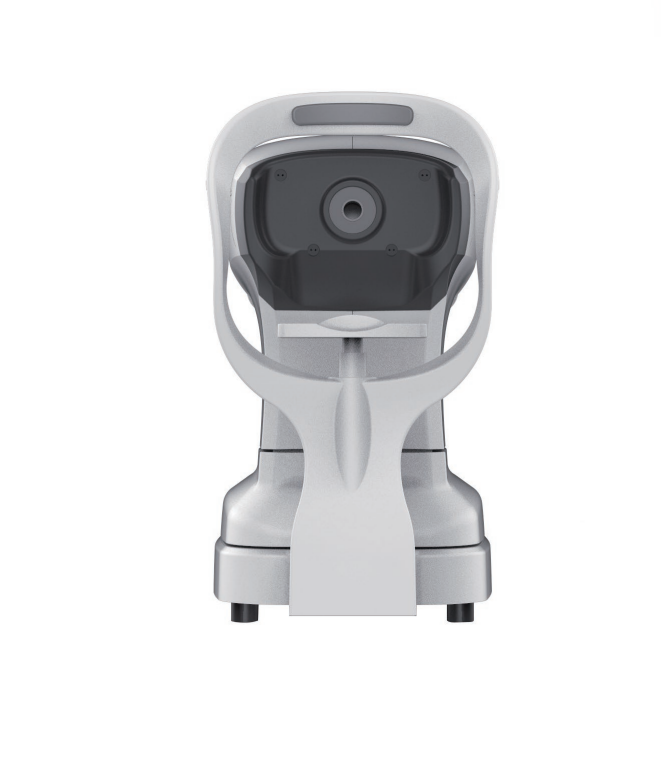

Auto Ref/Keratometer

CE FDA

New Technologies And Powerful Functions Simple operation interface provides with accurate operation experience.

Professional Design

Partial details design

◆ Humanized detail design

◆ Comfortable operation and smooth measurement

◆ Adjustable LCD screen for convenient measurement

Operation Interface Function

12/12 STEP.01CYL(-)VD.0.0PD.68.5 12/12

Reset Set up Mode selection

Clear Data record

Print Hartman array

Start measuring

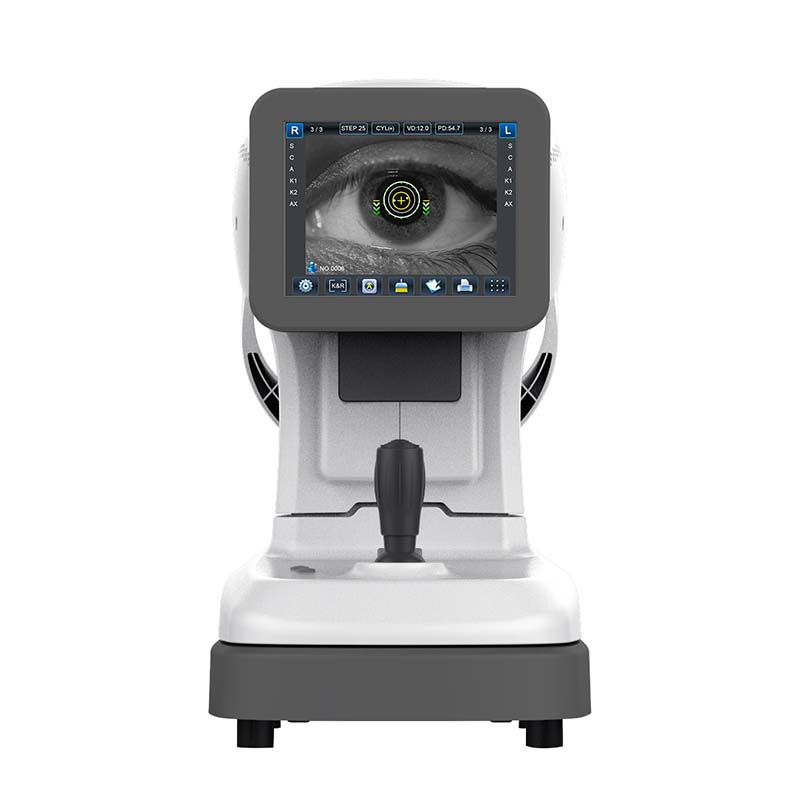

Adjustable LCD Touch Screen

High brightness and contrast 8” wide color TFT LCD screen, smooth touch mode, different angle can be adjusted

Motorized Chin Rest

By pressing the Up & Down buttons, the users can set and adjust the height of the patient’s chin freely and quickly

Data Record

3 groups of data stored each measurement, maximum 10 groups of data can be stored

UP/down Auto Tracking

Z-Direction

Y-Direction

90° 135° 24° 225° center

Measure peripheral keratometry precision of eyes with contact lenses fitting

Hartmann Imaging Processing Technology

illumination system

decon system

light source

Lenslet Array creates a lot of separated focal spots on the lens as pattern, of which subdivide the imaging for extreme precision processing

aberrated wavefront

Leslet array

CCD

Hartmanngram SH-WFS

Specification

Hartmann's Principle

New light path design, clear human eye imaging effect

High-speed image acquisition system, advanced image processing and analysis

The screen can be rotated freely up and down

Automatic eye tracking for lifting, automatic measurement

Electric lifting amount tow

Off-speed printer

Corneal apex distance: 0.0, 12.0, 13.75, 15.0

Spherical mirror degree: -20.00D ~ +20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 units)

Cylindrical power: 0.00D ~ +10.00D (0.06, 0.12, 0.25 units)

Axis position: 1° ~ 180° (1° unit)

Astigmatism symbol: -, +, ±

Interpupillary distance: 10 ~ 86mm

Minimum pupil diameter: 2.0mm

Measurement completion time: <0.5 seconds.

Pupil diameter: 2.00-8.00mm

Measure light energy: <30uw (ensure measurement safety)

Cornea curvature radius: 5.0 ~ 10.0mm (0.01mm accuracy)

Cornea diopter: 33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375)

Corneal astigmatism: 0.00D-15.00D (0.06D / 0.12D / 0.25D units)

Stored data: 10 measurements each

Visual target: Guided cloud map

Display: 8-inch TFT touch screen (adjustable viewing angle)

Printer: 57mm thermal printer

Power supply: AC 100 ~ 250V, 50 / 60Hz, wide power supply

Net weight: 22 kg

Gross weight: 26.5 kg

Packing size: (length) 680mm x (width) 400mm x (height) 640mm
