Product info
- Product name:Class B Autoclave LCD Display with Printer
- Product code:CCDHJR1
Packaging Specifications
- Outer Packaging Size:0.67 × 0.55 × 0.5 m
- Gross Weight:48 kg
- Net Weight:45 kg
- Volume:0.18
Description

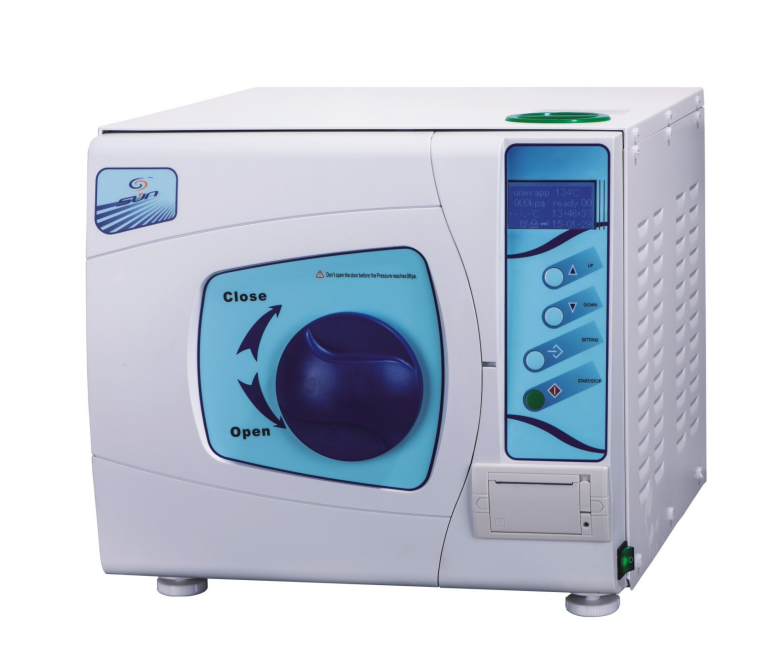

CCDHJR1 Dental Sterilizer Autoclave
Core Overview
CCDHJR1 is a fully automatic dental sterilizer autoclave compliant with the EN13060 standard, available in three capacity specifications (12L/18L/23L) to meet different dental clinical sterilization needs. It features a humanized design with LCD real-time display, customizable sterilization programs, and a range of professional sterilization modes for different materials/tools. Equipped with multiple safety protections, a high-quality vacuum pump and built-in steam generator, it supports fast sterilization (20 minutes) and professional tests (B&D/vacuum), with optional printer and color customization, making it a reliable sterilization device for dental clinics and related medical institutions.
Core Specifications (Three Capacity Versions)
| Specification | 12L | 18L | 23L |
|---|---|---|---|
| Chamber Size | Φ200×360mm | Φ250×350mm | Φ250×450mm |
| Product Size (L×W×H) | 560×450×410mm | 560×450×410mm | 680×450×410mm |
| Net Weight (N.W.) | 45KG | 48KG | 50KG |
| Gross Weight (G.W.) | 49KG | 50KG | 55KG |
| Display | LCD (unified) | LCD (unified) | LCD (unified) |
| Optional Accessory | Printer (unified) | Printer (unified) | Printer (unified) |
Key Sterilization Program Parameters
All programs support adjustable time (except fixed test programs), with matching temperature and pressure for different sterilization objects:
| Program | Temperature (°C) | Pressure (KPA) | Time (min) | Applicable Object |
|---|---|---|---|---|
| Unwrapped (134°C) | 134 | 210 | 4-20 | Unwrapped dental tools |
| Unwrapped (121°C) | 121 | 110 | 15-30 | Unwrapped dental tools |
| Wrapped (134°C) | 134 | 210 | 4-20 | Wrapped dental tools |
| Wrapped (121°C) | 121 | 110 | 15-30 | Wrapped dental tools |
| Cotton | 121 | 110 | 15-30 | Cotton dental supplies |
| Plastic | 121 | 110 | 15-30 | Plastic dental tools/supplies |
| B&D test | 134 | 210 | 3.5 (fixed) | B&D leakage test |
| Vacuum test | 105 | 20 | 5 (fixed) | Vacuum performance test |
Core Product Advantages
- Multi-spec Capacity & Space Adaptable: Three capacity options (12L/18L/23L) with compact overall size, 12L/18L share the same external dimensions for unified space layout, 23L with larger chamber for high-volume sterilization needs.
- EN13060 Standard & Professional Sterilization: Compliant with international EN13060 sterilization standard, 8 dedicated programs for unwrapped/wrapped tools, cotton, plastic and professional tests, covering all dental clinical sterilization scenarios.
- Fully Automatic & Efficient Operation: Built-in steam generator + high-quality vacuum pump, realizing fully automatic sterilization process; supports 20-minute fast sterilization cycle, greatly improving clinical work efficiency.
- Real-Time Visualization & Customization: LCD display shows real-time temperature, pressure, time and working status; supports program customization (temperature/sterilization time/drying time adjustable), meeting personalized sterilization needs.
- Humanized Operation Design: User-friendly 4-button keypad for easy browsing and setting of programs/directories; open-type water tank design for easy cleaning and maintenance; high-density filter ensures sterilization air quality.
- Comprehensive Safety Protections: Equipped with over-temperature and over-pressure protection functions; advanced self-test system monitors equipment status in real time, eliminating potential safety hazards during operation.
- Professional Test & Data Record: Standard with B&D test and vacuum test programs to verify sterilization and equipment performance; optional high-quality built-in thermal printer for paper printout of sterilization data, facilitating traceability and record-keeping.
- Flexible Customization: Optional printer and color customization, adapting to different clinical configuration and aesthetic needs of medical institutions.
Core Configuration & Functional Features
- Core Components: Built-in steam generator, high-quality vacuum pump, high-density filter, advanced self-test system
- Display & Operation: LCD real-time display, 4-button easy pad, program parameter setting/directory browsing
- Safety Features: Over-temperature protection, over-pressure protection, real-time working state monitoring
- Cleaning & Maintenance: Open-type water tank (easy to clean), modular component design
- Optional Functions: Built-in thermal printer (data printout), color customization
- Key Tests: B&D test (leakage), Vacuum test (equipment performance)
