Description

Ambulance

1. Overall dimensions (L×W×H): 5495×2040×2740 mmMedical cabin dimensions (L×W×H): 3140×1825×1900 mm
2. Engine model: FICE8481M
3. Wheelbase: 3300 mm
4. Emission standard: GB3847-2005, GB17691-2018 National VI, Euro V
5. Front track: 1742 mm
6. Rear track: 1538 mm
7. Tire: 195/75R16LT
8. Air conditioning: Front and rear independent air conditioning
9. Transmission: 5MT manual transmission
10. Braking system: Front disc/rear disc
11. Drive mode: Front-engine front-wheel drive
12. Passenger capacity: 6-9 persons
13. Safety airbag: Equipped
14. Seat belt reminder: Equipped
15. ABS+EBD: Equipped
16. Central door lock + remote control key: Equipped
17. Body type: Non-load-bearing body
18. Fuel type: Diesel
19. Displacement: 1994ml
20. Power: 109Kw
21. Fuel tank capacity: 100L
22. Entertainment system: USB playback + radio

II. Special Standard Configuration

1. Exterior identification First aid logo Exterior color bar reference announcement picture
2. Warning system 100W alarm and hand-held control Install embedded warning lights on the top of the vehicle head Strobe lights on left and right sides
3. Oxygen supply system 2 × 10L oxygen cylinders (including pressure reducing valves) 1 set of hidden oxygen pipeline 1 set of national standard oxygen port + 2 humidification bottles
4. Exhaust system 1 ventilation fan
5. Lighting system 4 top-mounted cabin lights (sufficient and soft light in the cabin) 2 top-mounted spotlights 1 rear cabin light
6. Sterilization system 1 ultraviolet disinfection lamp (filament adopts high-efficiency cold cathode, effective sterilization space up to 12 cubic meters, can also be delayed to turn off the function)
7. Stretcher system 1 automatic loading stretcher (high-strength aluminum alloy material, light operation) 1 folding stretcher Stretcher pad and guide plate
8. Power supply system 1 set of control system and battery isolation device 1 1000W inverter 4 220V power sockets 12 12V plugs
9. Intercom system 1 front and rear intercom
10. Floor assembly Environmental protection wear-resistant solid wood floor
11. Medical cabin interior Medical special wear-resistant floor leather, with flame retardant, anti-slip, moisture-proof, easy to clean, wear-resistant and acid-base resistance
12. Partition wall assembly Polymer middle partition, with movable push-pull window on the upper part of the middle partition
13. Operation cabinet assembly Hard top modification of medical cabin ceiling 1 whole medical cabinet installed on the left side of medical cabin 1 sliding storage rack installed on the left top 2 × 10L oxygen cylinder cabinets on the left tail 1 single seat installed on the right side of medical cabin 1 long row seat with safety belt installed on the right side of medical cabin
14. Others 2 fire extinguishers configured at front and rear 1 infusion slide rail and 2 hooks 1 yellow safety handrail on the top 1 sewage barrel

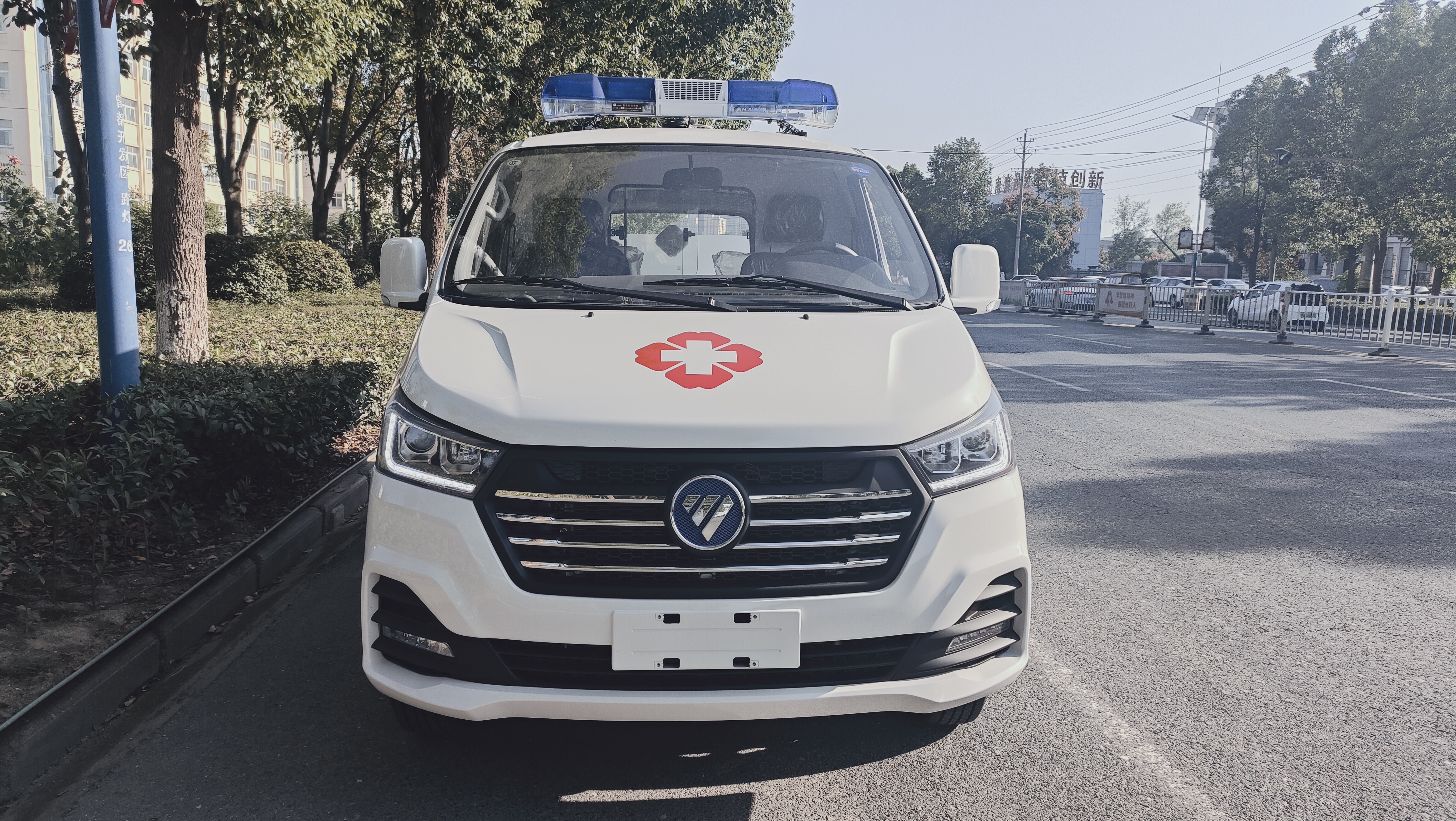

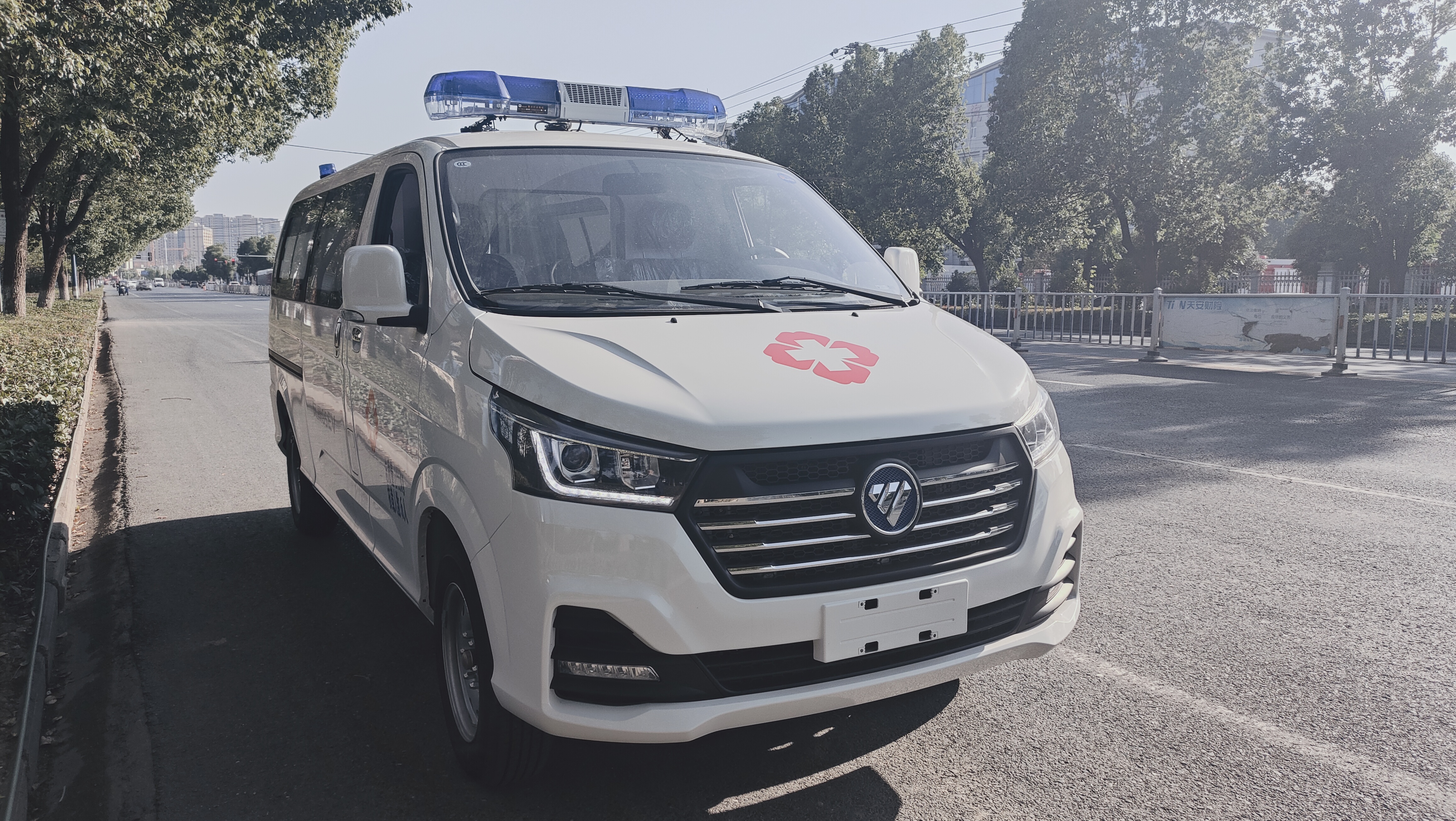

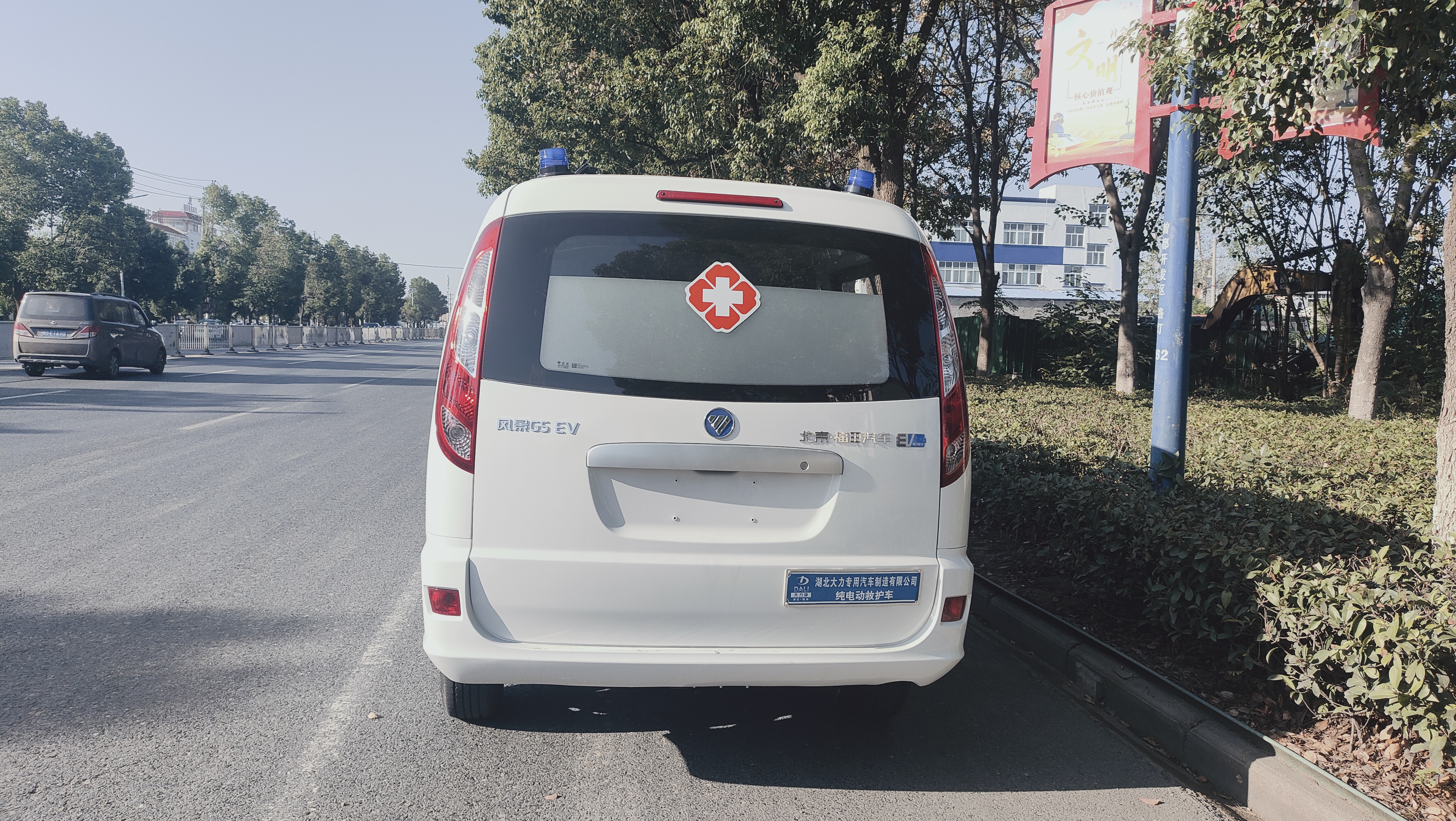

DLQ5030XJH6BEVSX Electric Ambulance

Vehicle Technical Parameters

• Vehicle Model: DLQ5030XJH6BEVSX Ambulance
• Overall Dimensions (mm): 5245 × 1825 × 2230
• Wheelbase (mm): 3430
• Engine Model: FTTB045
• Fuel Type: Pure Electric
• Range: 400 km
• Curb Weight (kg): 2310, 2200
• Gross Weight (kg): 2755
• Seating Capacity: 5-6 persons
• Tire Size: 195/75R16LT
• Battery: CATL 3rd-gen battery, 53.58 kWh, range ≥ 400 km
• Standard Equipment: Front power windows, central locking with remote key, ABS+EBD, fast & slow charging ports

Special Standard Configuration

1. Exterior Markings First aid logos Body graphics (refer to announcement image)
2. Warning System 100W siren with handheld control Full-length roof warning light bar Side strobe lights (left & right)
3. Oxygen Supply System 1 × 10L oxygen cylinder (with pressure regulator) 1 set of concealed oxygen pipeline 1 standard oxygen port + 1 humidification bottle
4. Air Conditioning Medical cabin air conditioning
5. Lighting System 2 ceiling-mounted cabin lights (soft, even illumination)
6. Sterilization System 1 UV disinfection lamp
7. Stretcher System 1 automatic loading stretcher Stretcher pad and guide plate
8. Power Supply System 1 × 500W inverter 2 × 220V power outlets
9. Intercom System 1 front-rear intercom unit
10. Floor Assembly Eco-friendly wear-resistant plywood floor Medical-grade wear-resistant vinyl flooring (flame retardant, anti-slip, anti-mold, easy to clean, wear-resistant, acid/alkali-resistant)
11. Partition Wall Assembly Polymer partition with movable sliding window in the upper section

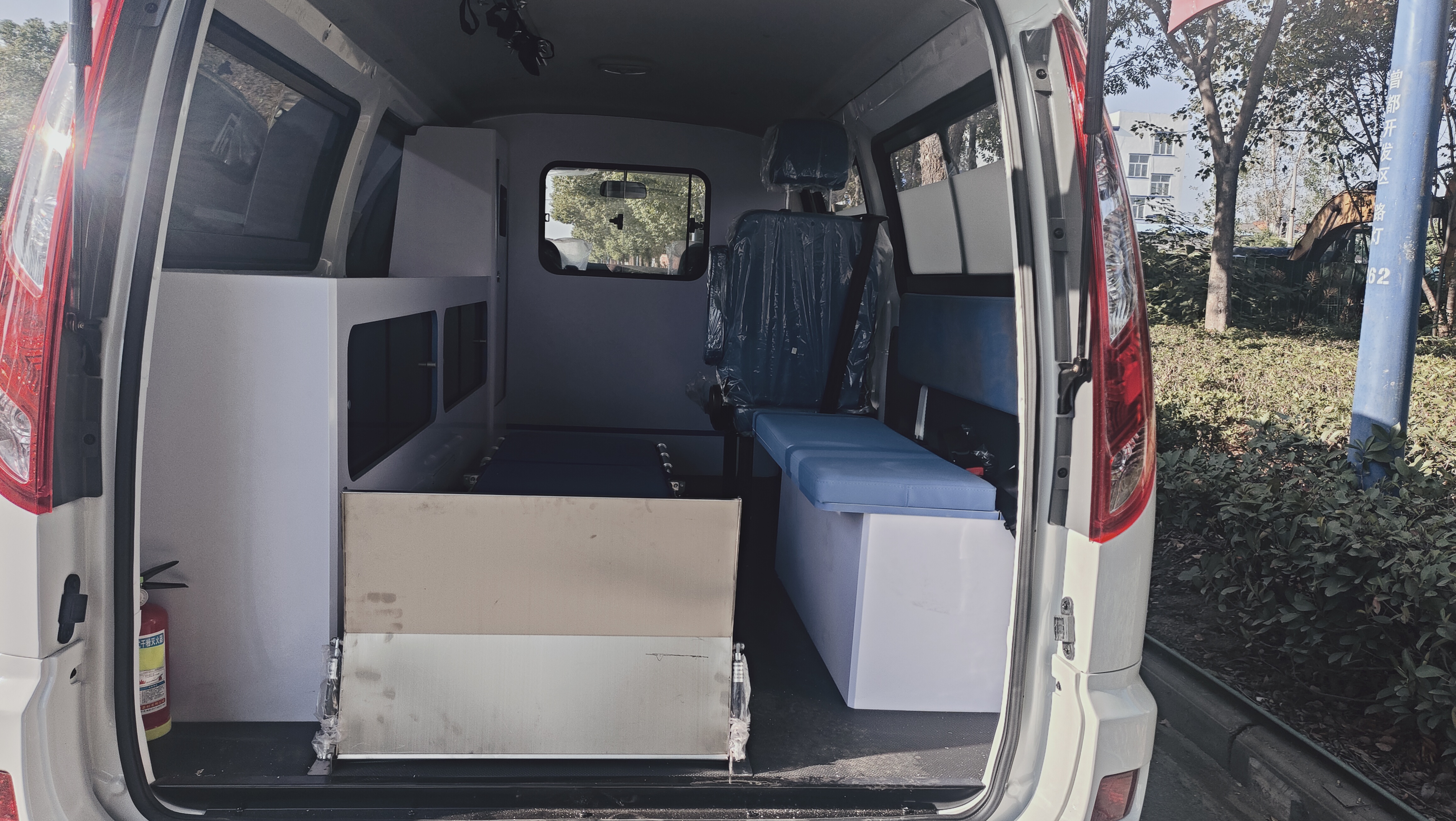

12. Operating Cabinet Assembly Oxygen cylinder cabinet behind the partition Flat window medical cabinet on the left 1 forward-facing single seat on the right Long bench seat on the right
13. Other Equipment 1 fire extinguisher in the rear cabin 2 IV bottle hangers 1 waste bin
