Description

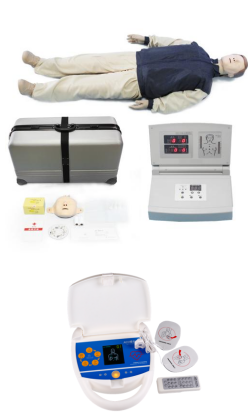

Basic BLS CPR Manikin with AED Simulator

Compliance Standard: In accordance with the 2020 International Guidelines for CPR & ECC issued by the American Heart Association (AHA).This system delivers BLS (Basic Life Support) teaching as well as CPR operational training and assessment functions, consisting of a full-body manikin, microcomputer controller and AED defibrillator simulator.It is capable of simulating trainee posture adjustment, carotid pulse palpation check, hands-on CPR practice and simulated operation of automated external defibrillator.Suitable for CPR training and BLS education in hospitals, medical colleges and medical training institutions.

CPR Function Parameters

1.Digital display, dynamic bar indicator light display, vital sign simulation display, training & assessment, score printout and voice prompt functions.

2.Simulate standard airway opening procedure.

Manual chest compression operation

1.Bar indicator lights reflect compression depth; 2. Digital counting display; 3. Voice prompt.

Green/yellow/red dynamic bar lights visually feedback correct compression depth (5–6 cm), insufficient depth (<5 cm) and excessive depth (>6 cm). The system counts valid/invalid compressions digitally, records detailed error causes including over-compression force, under-compression force and incorrect compression position, alongside corresponding voice alerts.

Voice Prompt: Chinese voice guidance specifies exact compression faults for immediate trainee correction.

Mouth-to-mouth ventilation operation

1.Bar indicator lights display tidal volume; 2. Digital counting display; 3. Voice prompt.

Three-color dynamic bar lights indicate ventilation volume: ≤500mL (insufficient), 600–1000mL (normal). Digital statistics and voice reminders record ventilation errors: overinflation or insufficient insufflation.

Voice Prompt: Chinese voice details ventilation mistakes to facilitate timely adjustment by trainees.

• Compression-to-ventilation ratio: 30:2 for single-rescuer or two-rescuer CPR.
• CPR cycle: One full cycle consists of 30 compressions plus 2 ventilations; complete 5 consecutive cycles for standard CPR practice.
• Compression rate: Latest international guideline: 100–120 compressions per minute.

Operation Modes: Training Mode; Assessment Mode (Standard Assessment / Custom Assessment)

• Timing: Real-time operation timing in seconds.
• Voice Setting: Enable/disable voice prompts and adjust prompt volume as required.
• Score Printing: Thermal printout of assessment results available.
• Pupil Response Simulation: Realistic automatic dilation and constriction of simulated pupils before and after assessment.
• Carotid Pulse Simulation: Palpable simulated carotid pulsation during compression; pulse status changes automatically upon completion of assessment.

AED Defibrillation Simulation Functions

1. Dedicated training AED simulator with adhesive electrode pads and full Chinese voice instruction. Preloaded with 10 training scenarios; intelligent electrode placement detection, pause function and adjustable volume control.
   2.Complies with 10 standard AED scenario protocols defined by AHA (American Heart Association) and American Red Cross.
   3.Identical control layout to genuine AED devices with power switch and shock button.
2. LCD screen displays the ongoing training program.
   5.Intelligent electrode detection: Voice alert triggers if electrodes are missing or improperly positioned.
   6.Equipped with training pause function and adjustable speaker volume.
