Description

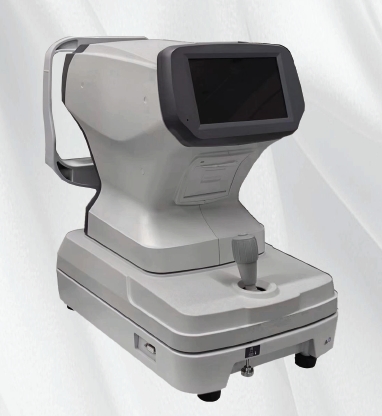

AUTO Ref/Keratometer

Better Detail For Better Quality

New Technologies And Powerful Functions Simple operation interface provides with accurate operation experience.

Features

7” TFT LCD monitor

Bigger, better monitor and icon-display menu for easier operation and setting.

Refractive measurement with Hexagon prism

With high quality of hexagon prism and higly senstive CCD, it provides unmatched accuracy and reliability.

Auto focus function

Just move, it will automatically focus the eye and get the value.

Motorized chinrest

Operator can easily adjust the chinrest with switch located on the operator side and enables speedy reading.

Tilting Screen

Tilting Screen function that allows wide variance of access whether the operator is sitting or standing.

Specification

Refractormeter

Vertex distance: 0mm, 12mm, 13.75mm

Spherical: -20m⁻¹-+20m⁻¹(VD=12mm), 0.12/0.25m⁻¹ Step

Cylinder: -8m⁻¹-+8m⁻¹(VD=12mm), 0.12/0.25m⁻¹ Step

Axis: 0-180º 1 º Step

Cylinder form: -, +, ±

Pupil distance: 45-88mm,1mm Step

Min. pupil size: 2.0mm

Keratometry

Radius of curvature: 5.0-10mm (increment: 1mm)

Corneal diopter: 33.75m⁻¹-67.5m⁻¹(when corner equivalent refractive index is 1.337)

Corneal astigmatism: 0.0-8.0m⁻¹(increment selectable form 0.12,0.25m⁻¹)

Axis: 1-180º (increment: 1º)

Corneal diameter: 2.0-14.0mm (increment: 0.1mm)

Other

Chart: Follow-up colorful fogging chart system

Memory of data: 10 measure value for each right and left eye

Print: Thermal printer

Power supply: 100V-240V~ 50 Hz 60VA

Dimensions: 66x52x66cm

Weight: 16 Kg
