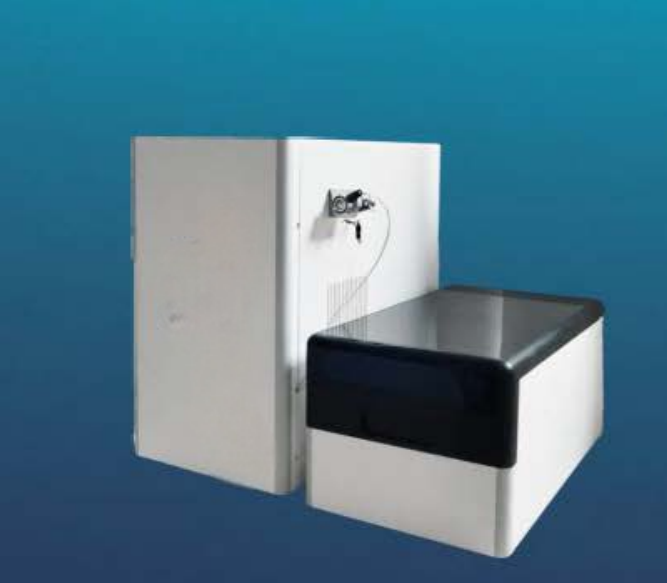

Amino Acid Analyzer

Product Features

Self-R&D and manufactured in China. Adopts self-owned system control software, complies with GLP/21CFR standards with traceable data. Fully automatic operation covers dosing, separation, reaction, detection, cleaning and degassing processes. It meets all current national and international standards and supports analysis of all types of amino acids.

Na-system is designed with regular and high-speed dual analysis modules, suitable for analyzing 18 to 25 kinds of hydrolyzed amino acids. Li-system can analyze 21 kinds of hydrolyzed amino acids or 43 kinds of free amino acids without replacing the column and eluents.

It adopts advanced temperature gradient combined with conventional concentration gradient and pH gradient technology, which can separate amino acids that are difficult to separate by traditional methods. The consumption of eluents is only 20%-30% compared with similar products. Spare parts achieve zero consumption. The detector is equipped with LED light source with service life over 100,000 hours, no need for light source replacement. Built-in all-channel vacuum degaser realizes online degassing. Ninhydrin and eluents are deoxygenated by nitrogen and protected by pressured nitrogen.

Core Components

High Pressure Precision Dual Piston Pump

Flow rate: 0.000~9.999ml/min

Flow rate deviation: 0.1%(0.1ml/min)

Pressure range: 0~40MPa

No traditional seal required

Automatic pump head cleaning to prevent clogging

Injector

Dosing volume: 20μL

High-effect Reactor

Electronic safe heating mode

Temperature range: Ambient ~ 150°C

Temperature precision: ±0.1°C

High reaction efficiency, small dead volume and no diffusion phenomenon

Auto-protection against power cut and auto-reset protection against overheating

Maintenance-free Detector

High precision micro-diode photometer

Wavelength: 570nm/440nm

High sensitivity, no online splitting and no consumables needed

High Resolution Separation Column

High theoretical number of trays

Length: 125mm

Resin: less than 5μm cation exchange resin

Types: typical, high speed, high resolution

Eluents Storage

5 kinds of eluents for Na-system, 6 kinds of eluents for Li-system

Stored at ambient temperature

Shelf life: 2 years for eluents, 1 year for ninhydrin

Column Oven with Temperature Gradient

Peltier temperature control

Temperature range: 20~100°C

Temperature precision: ±0.1°C

Supports temperature gradient separation control

Auto-protection for overheating and liquid leakage

Analysis System Software

Supports equipment control, data collection and processing

Operating system: Windows

Language: Chinese / English

aminoPro dedicated amino acid analysis software supports 24-position high-precision data processing. Resolution reaches 1μV, integral precision 0.05μV. Built-in amino acid database, dual channel 570nm/440nm signal merging, automatic peak identification, statistical function and data export.

Three-level administration authority available. Automatically records 12 system operating parameters per second. Supports remote control and emergency automatic shutdown. The system can automatically clean pipelines after accidental power failure to avoid blockage. Customizable analysis procedures, data reports and electronic signature function are available.

Application

Na-System Application

Applicable for Na-system standard sample testing and feed sample separation analysis.

Li-System Application

Applicable for Li-system standard sample testing and conventional sample separation analysis under 570nm and 440nm dual wavelength.

Technical Specifications

Ambient temperature requirement: 5 ~ 35°C

Relative Humidity: less than 90%

Power supply: AC 110 ~ 240V, 50 ~ 60±0.5 Hz

Retention time repeatability: RSD ≤0.1% for all amino acids

Peak area repeatability: RSD ≤0.5% for all amino acids

Detection limit: all items <3pmol (S/N=2), Asp ≤2.5pmol, His ≤1pmol

Resolution: all hydrolyzed amino acids ≥14.4, average value 24.0

Linearity: r≥0.999 for Gly, r≥0.999 for His

Consumables

100-0018: 18 AA Standards

100-0020: 20 AA Standards

100-0041: 41 AA Standards

200-0018: Try Standard

200-0008: GIn Standard

300-0001: Supplement kit for Na system

300-0002: Supplement kit for Li System

400-0001: Column Kit for Na System

400-0002: Column Kit for Li System

Service

Provide on-site installation and training, sample analysis and analysis method establishment. Offer special technical training, regular telephone return visit and on-site inspection service. Supply standard products and supplementary kits for Na-system and Li-system.
