Product info

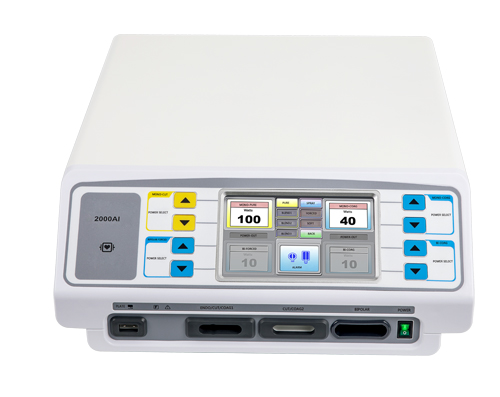

- Product name:Advanced Electrosugical Unit with LCD Touch Screen
- Product code:CCS-2000AI LCD
Packaging Specifications
- Outer Packaging Size:0.65 × 0.55 × 0.3 m
- Gross Weight:17 kg
- Net Weight:9 kg
- Volume:0.11
Description
Main Features
★ Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
★ Nine working modes: pure cut, blend1, blend2, blend3, spray coag, forced coag, soft coag, bipolar coag, bipolar cut.
★ Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
★ Microprocessor controlled, 7-inch LCD touch screen display.
★ With audible and visual indicators and errors codes during the process of outputting.
★ With automatic system self-checking
★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
★ Both hand and foot controlled.
★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
★ Memory function: The unit can preset 10 frequently used working modes and power settings.
★ Remote control function. The surgeon can adjust the output by power control ESU pencil.
★ Two monopolar output Receptacle. Can connect two monopolar instruments for simultaneous coagulation.
★ The ESU unit can be connected with laparoscope and endoscope, etc.
★ Connect with a Bipolar Clamp, Bipolar cut mode can close and cut soft tissues such as fascia and omentums.
★ Protection against over-voltage and over-current.
★ Defibrillation protected.
★ Convection refrigeration without ventilator.
★ Mounted on a 4 wheels cart(optional).
PERFORMANCE CHARACTERISTICS
Duty Cycle: Intermittent loading and continuous operation( 10s/30s)
Nine Working modes
| Function | Modes | Output Power (load) | V-PP | CF |
| Monopolar Cut | Pure cut | 1-400W @800ohm load | 2.6kV | 1.5 |
| Blend1 | 1-300W@800ohm load | 4KV | 1.8 | |
| Blend2 | 1-200W@800ohm load | 4.2KV | 2.1 | |
| Blend3 | 1-150W@800ohm load | 4KV | 2.7 | |
| Monopolar Coagulation | Spray | 1-80W@800ohm load | 5.3KV | 7.4 |
| Forced | 1-120W@800ohm load | 5KV | 3.8 | |
| Soft | 1-120W@800ohm load | 720V | 1.6 | |
| Bipolar | Standard coag | 1-120W@200ohm load | 550V | 1.6 |
| Bipolar cut (Macro-bipolar) | 1-120W@200ohm load | 350V | 1.6 |
Input Power
| Input Voltage | 100-240V～±10% |
| Mains line frequency range | 50-60Hz |
| Power Rating | 1100VA |
| Power consumption | ≤1100VA |
| Fuses(two) | 5A/10A |
| Working frequency | MONO: 512KHz; BIP:1024KHz |
| Monopolar RF leakage current | ＜150mA |
| Bipolar RF leakage current | ＜50mA |
Standards and IEC Classifications
| Class I Equipment IEC 60601-1 |
| Type CF Equipment IEC 60601-1 |
| Spill Resistance IEC 60601-2-2 |
| Electromagnetic Compatibility IEC 60601-1-2 and IEC60601-2-2 |
Dimensions and Weight
| Length: 49cm | Width: 42cm |
| Height : 18cm | Weight: 9kg |
Operating Parameters
| Ambient temperature range: 5℃ to 40℃ |
| Relative humidity: ≤80% |
| Atmospheric pressure: 86kPa to 106kPa |
Configuration Sheet
| Main unit 1set |

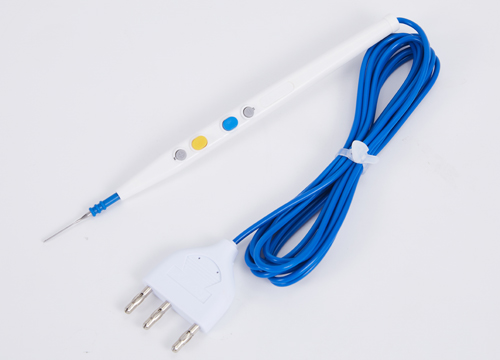

| Electrosurgical Pencil 5pieces |
| Electrosurgical Pad 10pieces |
| Electrosurgical pad cable 1piece |

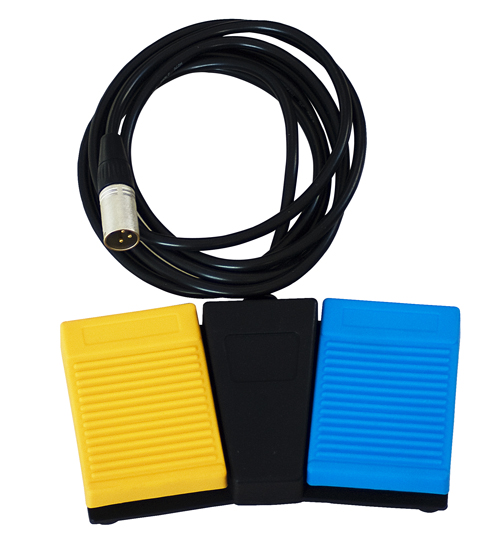

| Monopolar Footswitch 1set |

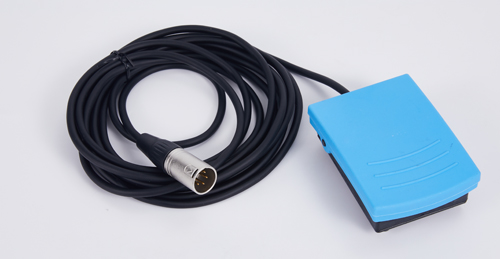

| Bipolar Footswitch 1set |

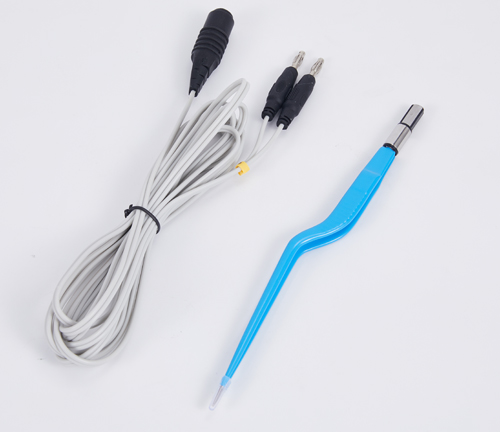

| Bipolar Forceps with cable 1set |
| Tip Clean Sponge 1piece |
| Power cable 1piece |
| Fuse 3pieces |
