Description

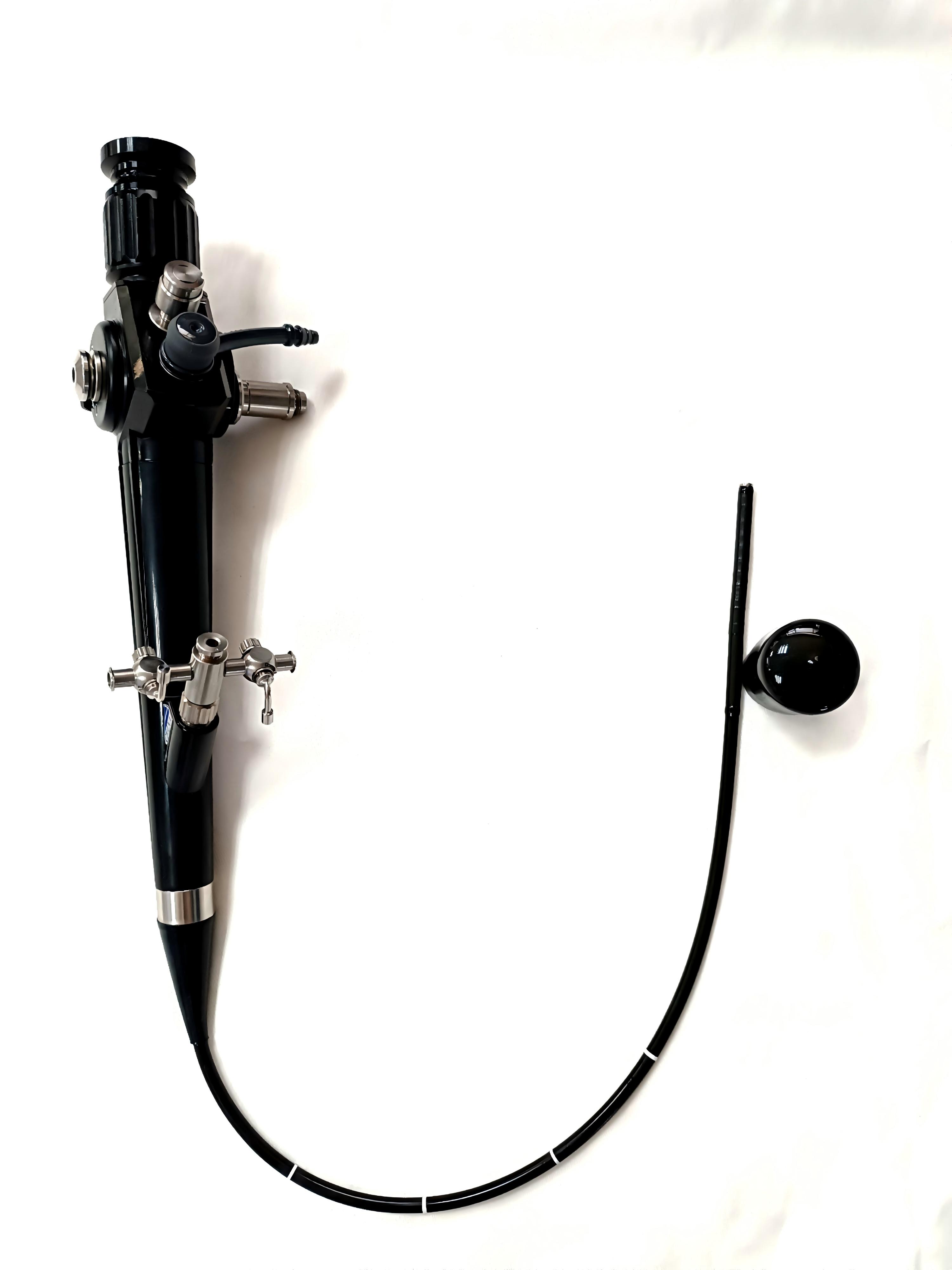

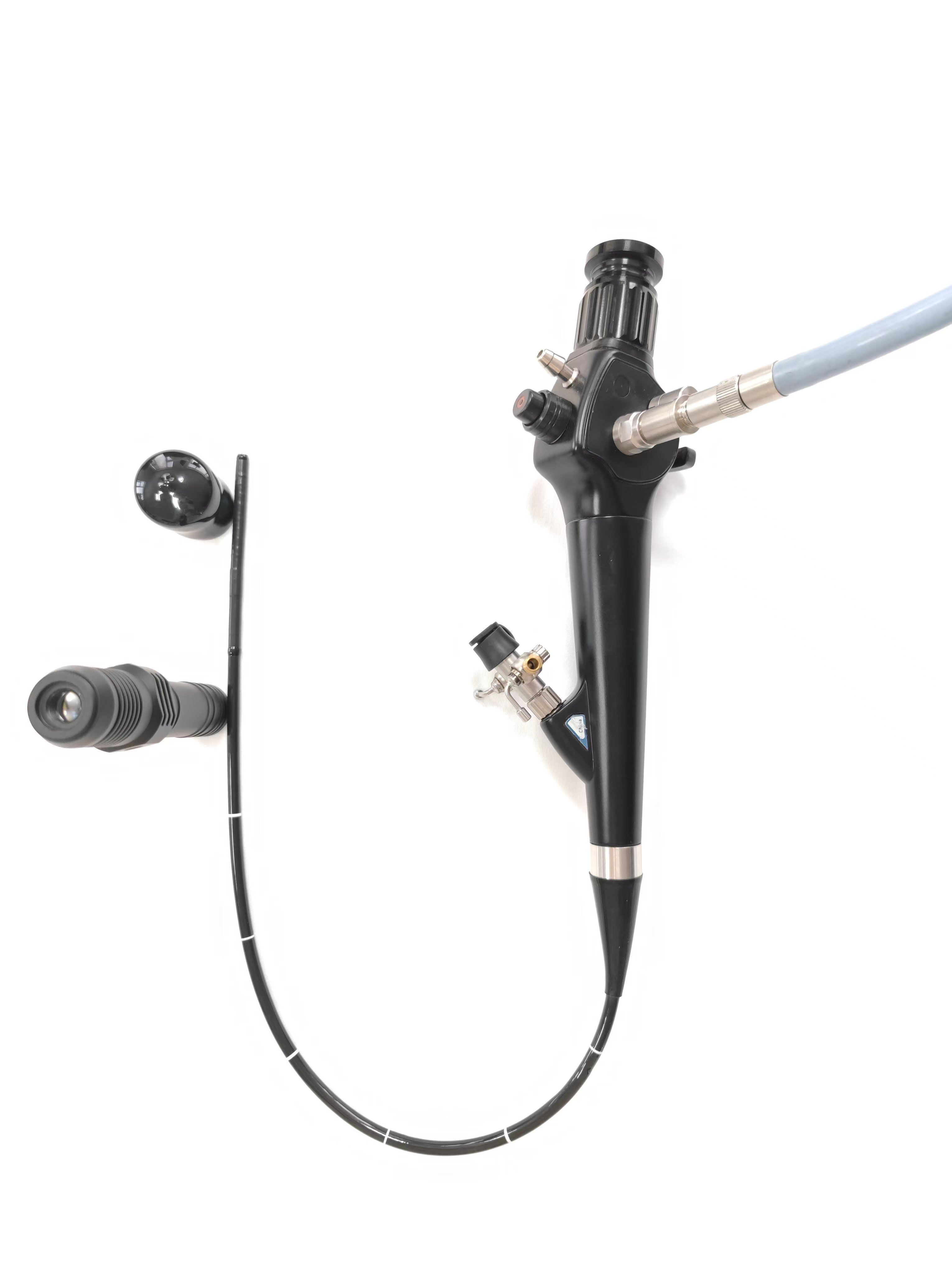

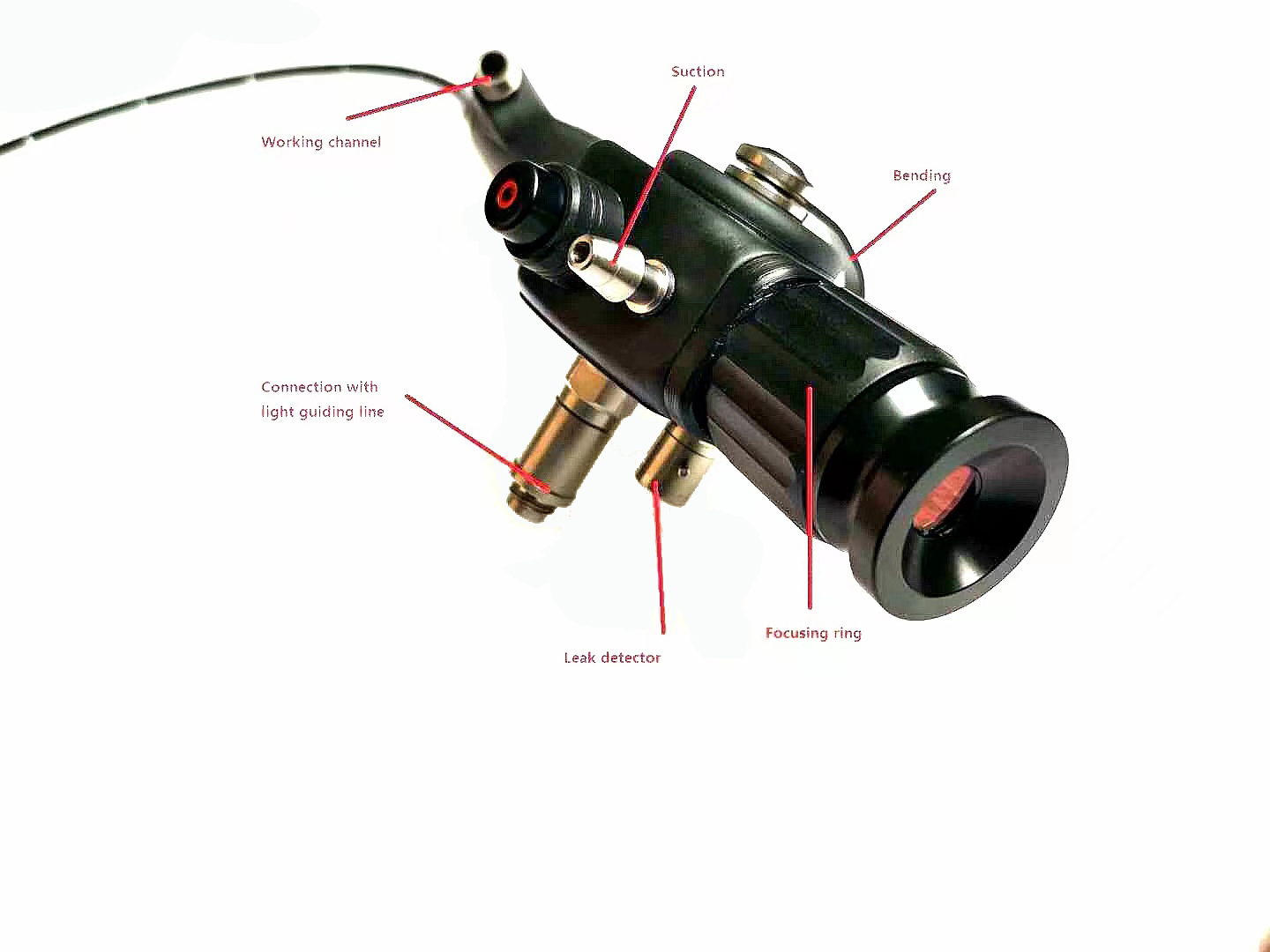

Flexible Nasal Fiberscope / ENT Endoscope System

The flexible nasal fiberscope is a professional ENT endoscopic system designed for examination of the nasal cavity, throat and upper airway.

With fiber optic imaging technology and flexible insertion design, it provides clear visualization and comfortable operation for ENT specialists.

The system can also support bronchoscope, laryngoscope and cystoscope applications with customized configurations.

Key Features

● Flexible fiber optic endoscope design

● Clear image transmission for ENT examination

● Small diameter insertion tube for patient comfort

● Suitable for nasal and airway inspection

● USB interface for image and video recording

● Supports picture capture and data storage

● Compatible with optional rigid endoscope camera head

● OEM customization available

● MOQ: 1 set

Applications

Used for:

● ENT examination

● Nasal cavity inspection

● Laryngeal examination

● Airway observation

● Bronchoscopy applications

● Clinical endoscopy departments

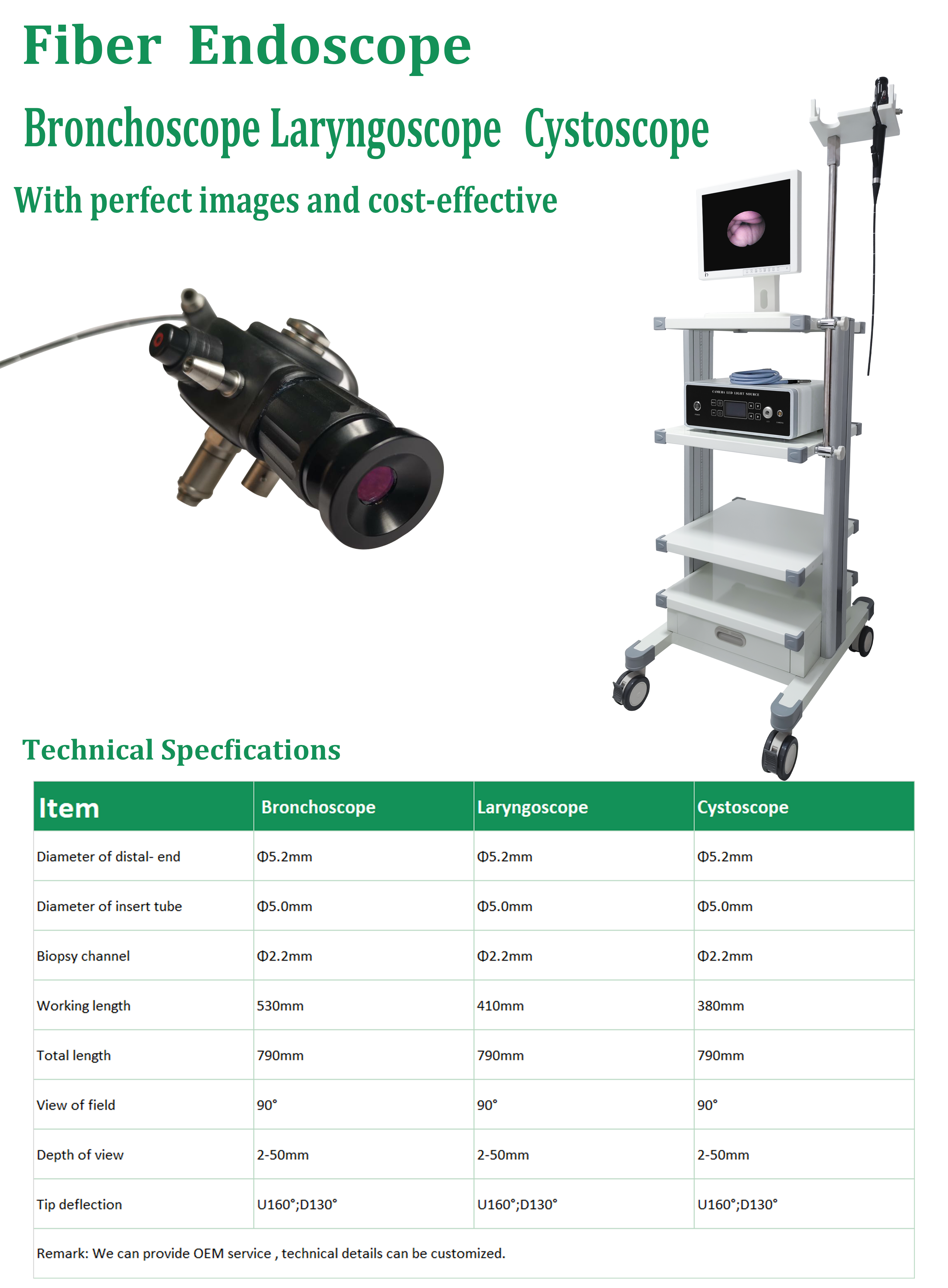

Technical Specifications

Endoscope Parameters

Distal End Diameter:

Φ5.2mm

Insertion Tube Diameter:

Φ5.0mm

Biopsy Channel:

Φ2.2mm

Working Length:

Bronchoscope: 530mm

Laryngoscope: 410mm

Cystoscope: 380mm

Total Length:

790mm

Field of View:

90°

Depth of View:

2-50mm

Tip Deflection:

Up 160° / Down 130°

System Features

Image & Recording

● USB interface support

● Video recording function

● Image capture function

● Easy connection with computer system

Product Advantages

● Flexible operation for difficult anatomical areas

● Multi-function endoscopy applications

● Suitable for hospitals and clinics

● Cost-effective ENT imaging solution

● Customized solutions available

OEM Service

We provide:

● Customized configuration

● OEM branding service

● Technical customization

● Flexible order quantity
