Description

Anesthesia Laryngoscope

Configuration

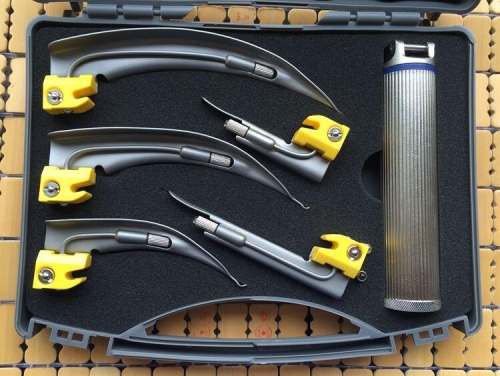

Five Lens (MAC2, MAC3, MAC4, MIL0, MIL1) + One Handle

Introduce

This product is a new type of practical anesthesia laryngoscope, it is a combination of domestic and foreign similar products.

Our product adopts the ultra bright LED lights, the top fan space high brightness can reach 17000 MCD, it exceed all the anesthesia laryngoscope's lighting intensity, can provide clear vision for the operator.

Ultra bright LED is cold light source, can avoid hot bulb burn oral mucosa, The effect is better than the existing import anesthesia laryngoscope.

The handler use 3pcs AG10 button batteries, change one time batteries can used for many times operation!

The lens adopted an integration design, use more security, the lens never will be breakage.

Adopting no welding technology, making the lens environmental, more beautiful!

Size: For different Lens

• MAC1: 90MM
• MAC2: 100mm
• MAC3: 130mm
• MAC4: 155 + 5mm
• MIL0: 75 + 5mm
• MIL1: 102 + 2mm

Size: For different handle

• 28.5 mm (adult)
• 18.5mm (children)

Photoluminescence

halogen bulbs (cold light sources - through fiber transmission)

Light bulb power

2.5V 600MA

Packing

plastic box packaging.

Every adult contains MAC2, MAC3 and MAC4 optical fiber lenses. One handle and one spare bulb.

Every child contains MIL0, MIL1 optical fiber lens, each handle is one, spare bulb is one.

Weight

• 0.7kg/ set (adult)
• 0.5kg/ set (children)

Single set size

22.5cm16.8cm2.5cm

Matters of attention

The user must read and understand the instructions of the product carefully before using the maintenance laryngoscope.

Tracheal intubation requires professional training, and people who receive professional training can use it.

Laryngoscope may spread infectious diseases among patients, so it is necessary to sterilize between the two patients.

Be strictly checked before use, and do not try to use it if it does not meet the requirements.

Technical parameters

1. First check whether the visible tube is completely inserted into the fixed sleeve before the operation.
2. Check whether it is in normal working condition, for example, whether the mirror is clean, and whether there is enough brightness. If the front and rear lenses are blurring, please drop the right amount of antifogging cleaner.
3. The lens is hooked to the handle connector. When the lens is lifted to the operation position, the light will shine when the power is connected. After the operation is completed, the lens will be removed from the handle. Otherwise, the bulb will not extinguish, which will affect the battery life.
4. If it is found that the light bulb is not bright, please check whether the fiber-optic tube bulb is completely embedded in the middle of the mirror hook.
5. To replace the bulb: the fiber tube on the base junction has a six angle screw hole, use a 1.5mm inner six angle screwdriver to loosen the screw, pull out the fiber tube, then replace the bulb. After the fiber tube is inserted into the base hole, tighten the locking screw, and then insert into the mirror hook central groove for use.
