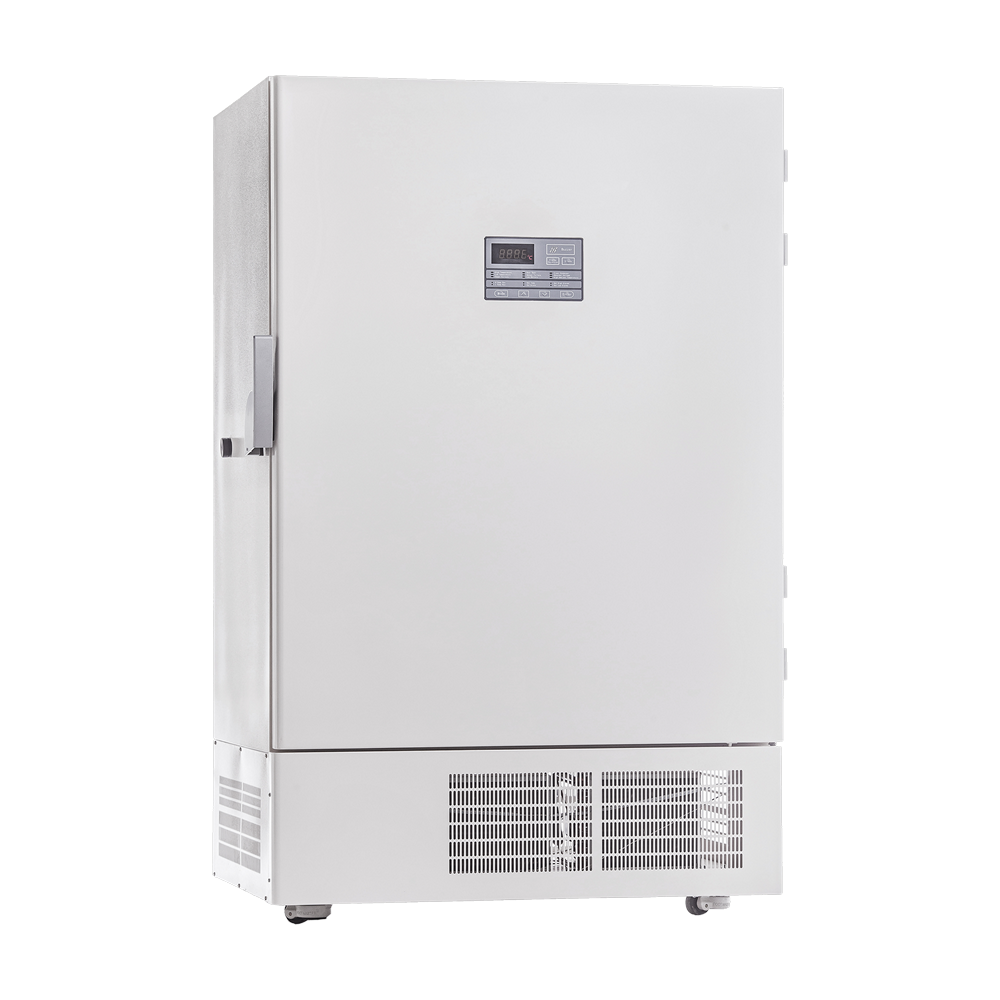

The -40 °C medical deep freezers are designed to store vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and medical fields.

Features

Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C

HC green refrigerant is energy-saving and environmentally friendly.

Wide available voltage range: 220V±10%.

Security

Safety door lock and controller password to prevent unauthorized access.

Built-in backup battery to display temperature and alarms when power failure or system error.

Visual and audible alarm system.

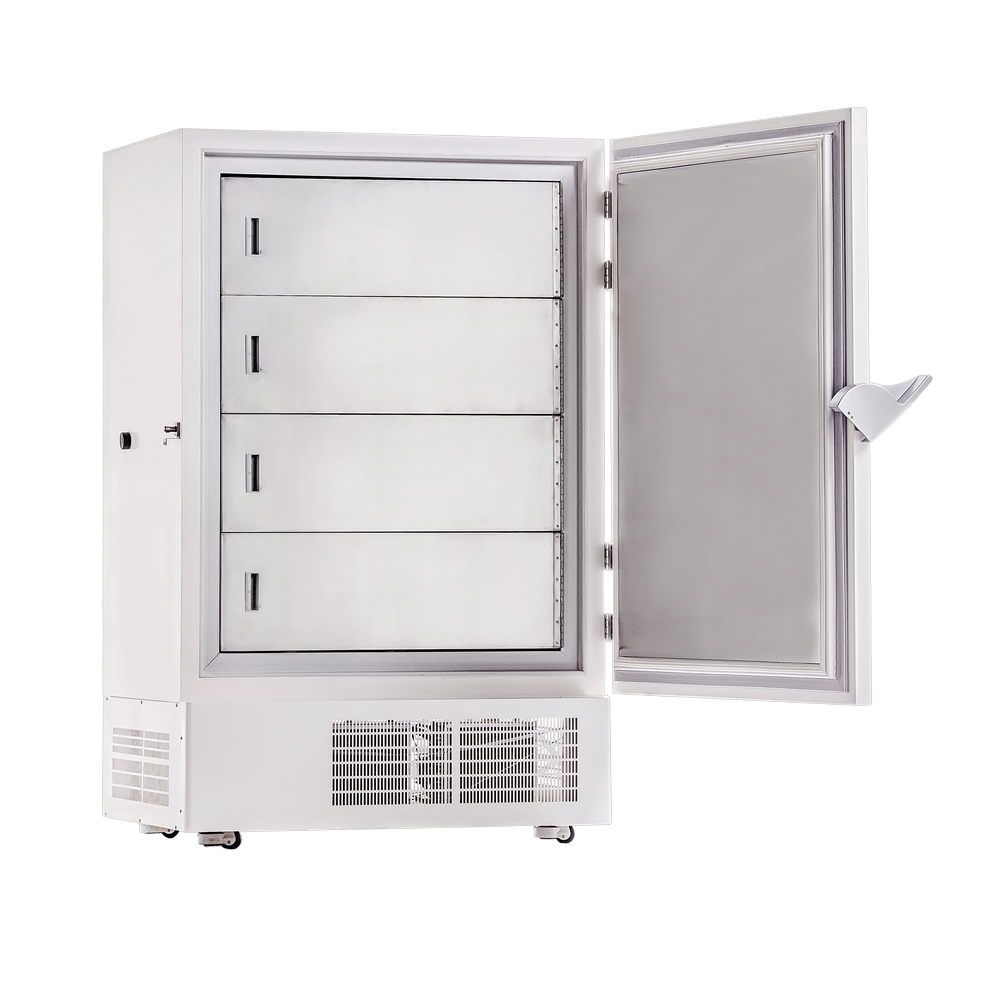

Inner doors to prevent cold air from leaking out when the outside door is opening.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

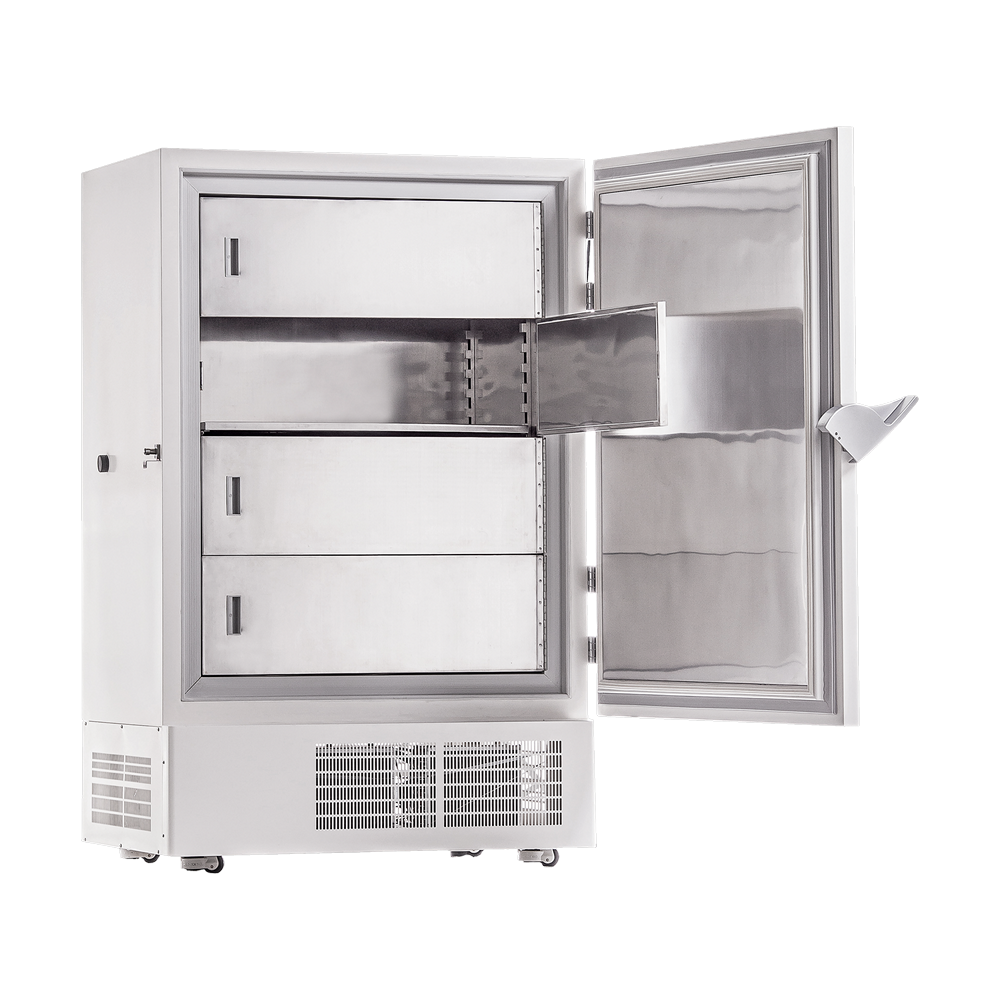

Adjustable shelves for easy storage.

Casters with stoppers for easy moving and fixation.

Specifications


Model NO.C260324058
Main Specifications
Temperature Range-20 ~ -40 ℃
Ambient Temperature10~32℃
Capacity (L/Cu. Ft.)936 / 33.1
Interior Dimensions (W×D×H) mm1000×700×1335
Exterior Dimensions (W×D×H) mm1304×1000×2017
Weight378 kgs
Noise50 dB
Control and Power
ControllerMicroprocessor
DisplayDigital
SensorPTC
Voltage and Frequency220V±10%, 50/60Hz
Power1000 W
Electric Current5.8 A
Power Consumption (kWh/24h)14.5
Audible and Visual Alarms
High / Low Temp. AlarmYes
Power Failure AlarmYes, 72h
Sensor Error AlarmYes
Controller Error AlarmYes
Door Ajar AlarmYes
Abnormal Voltage AlarmYes
Abnormal Ambient Temp. AlarmYes
Battery Error AlarmYes
Condenser Error AlarmYes
Refrigeration
Refrigeration TypeDirect Cooling
DefrostManual
Compressor (Brand/pcs)SECOP / 2
Refrigerant / WeightR404A / 320g
Cabinet
Door (pcs)Foamed Solid Door / 1
Inner Door (pcs)Foamed Solid Door / 4
Adjustable Shelf (pcs)3
Interior Cabinet MaterialStainless Steel
Exterior Cabinet MaterialCoated Steel
Insulation MaterialPURF (δ120mm)
Door LockYes
Test Hole (pcs)1
Castors (pcs)4
Accessories
USB Data Download PortYes
Remote Alarm PortYes
RS485 PortOptional
Temperature DataloggerOptional
Temperature PrinterOptional
Temperature Chart RecorderOptional
Shipping
PackagePlywood box with pallet
Shipping Weight413 kgs
Shipping Size (W×D×H)1370×1110×2200
Shipping Volume3.35 CBM
