Description

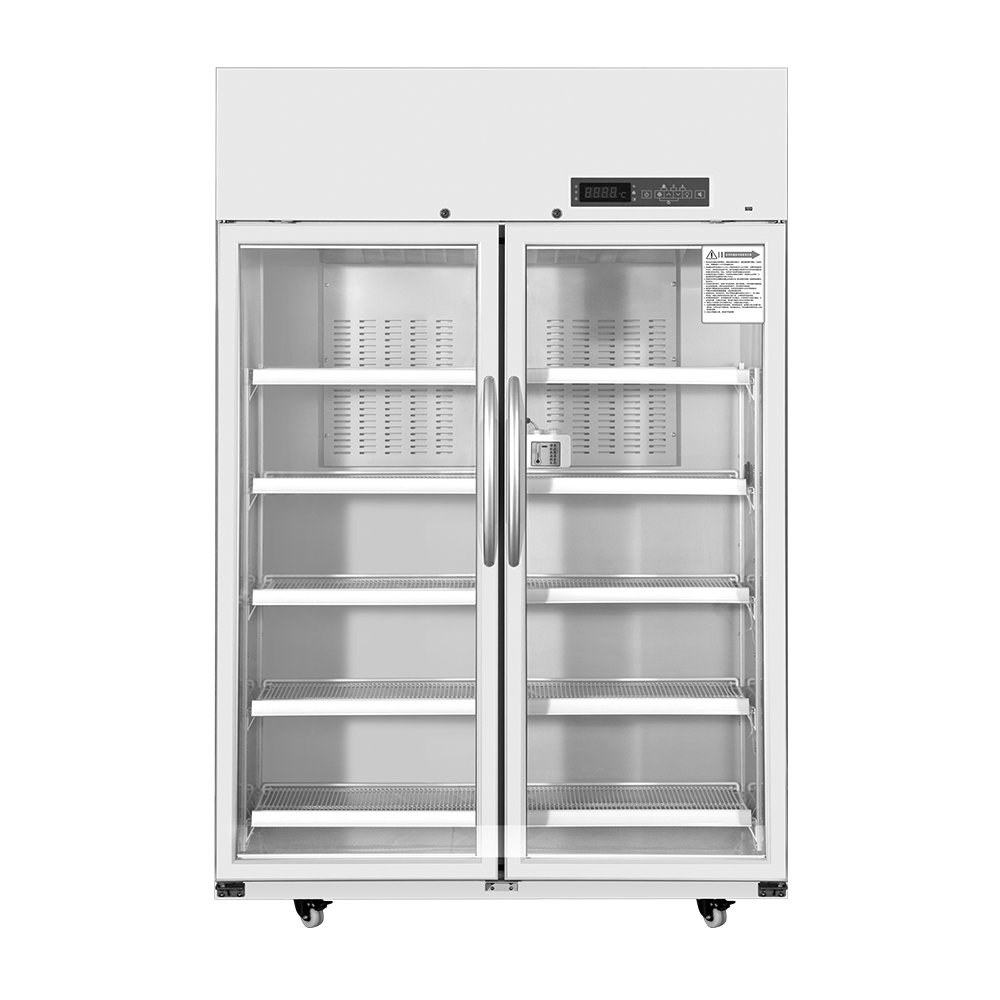

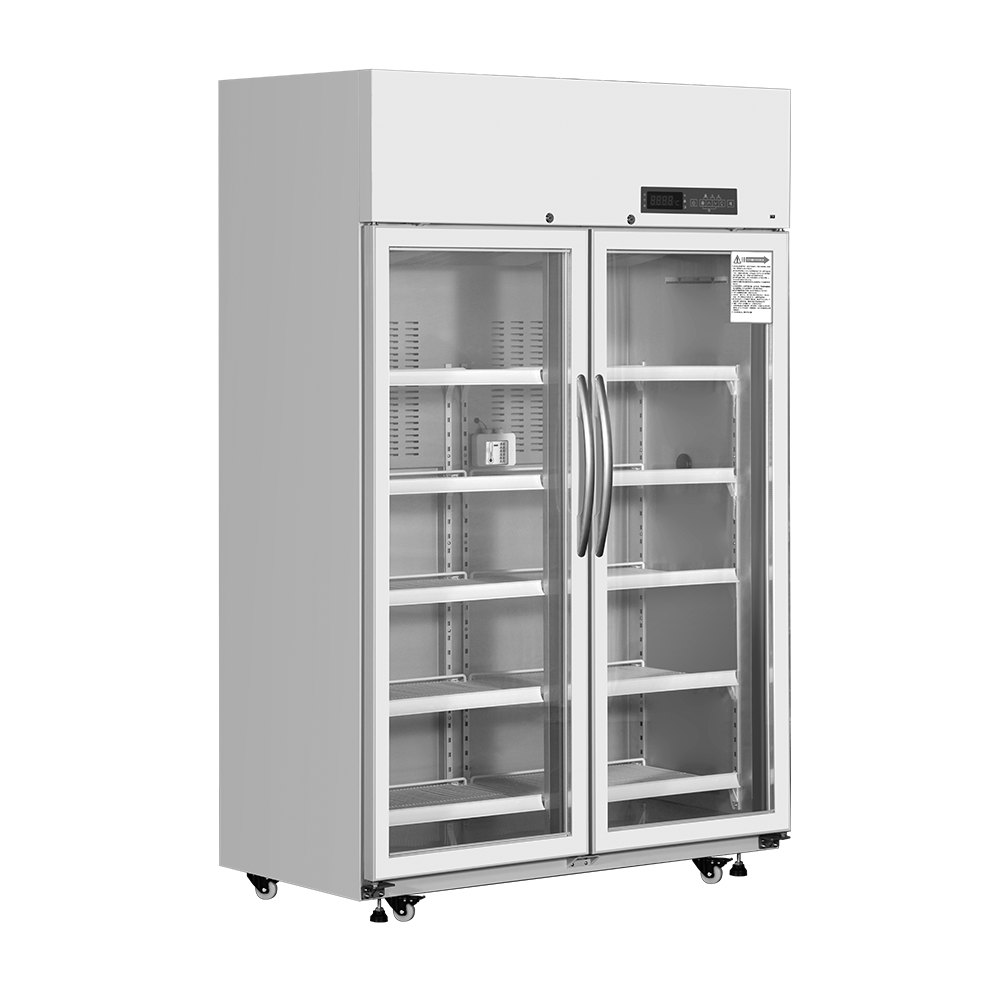

2~8°C Biomedical Refrigerator (Forced-air Cooling System)

Applications

2~8°C biomedical refrigerators are specially designed to store medicines, vaccines, reagents and bio-medical products.

Features

Microprocessor control, ensure the inside temperature is within 2~8°C, accuracy is 0.1°C.

Suggested ambient temperature: +10~32°C.

Specially designed forced-air cooling system, ensures frost-free cabinet and good temperature uniformity.

Double toughened glass door with heater, available for high humidity area.

Wide available voltage range: 220V±10%.

Security

Safety door lock and controller password to prevent unauthorized access.

8h built-in backup battery to power the controller and save temp. data when power failure or system error.

Visual and audible alarm system.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

Special designed service-free drainage system, ensure no water in the cabinet.

10 adjustable shelves for easy storage.

Casters with stoppers for easy moving and fixation.

Auto on/off LED light with manual switch on the control panel.

Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.

Specifications

Temperature Range: 2 ~ 8 °C

Ambient Temperature: 10~32℃

Capacity (L/Cu. Ft.): 1000 / 35.31

Interior Dimensions (W×D×H) mm: 1129×690×1370

Exterior Dimensions (W×D×H) mm: 1229×882×1895

Weight: 160 kgs

Noise: 53 dB

Control and Power

Controller: Microprocessor

Display: Digital

Sensor: NTC

Voltage and Frequency: 220V±10%, 50/60Hz

Power: 545 W

Electric Current: 3.13 A

Power Consumption (kWh/24h): 10.5

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Power Failure Alarm: Yes, 48h

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Door Ajar Alarm: Yes

Refrigeration

Refrigeration Type: Forced-air Cooling

Defrost: Auto

Compressor (Brand/pcs): Chinese Brand / 1

Refrigerant / Weight: R290 / 100g

Cabinet

Door (pcs): Self-closing Heating Glass Door / 2

Adjustable Shelf (pcs): 10

Interior Cabinet Material: Stainless Steel

Exterior Cabinet Material: Coated Steel

Insulation Material: PURF (δ50mm)

Door Lock: Yes

LED Lamp: Yes

Test Hole (pcs): 1

Castors / Leveling Feet (pcs): 4 / 2

Accessories

Remote Alarm Port: Yes

USB Data Download Port: Yes

RS485 Port: Optional

Temperature Datalogger: Optional

Temperature Printer: Optional

Temperature Chart Recorder: Optional

Shipping

Package: Carton box with pallet

Shipping Weight: 195 kgs

Shipping Size (W×D×H): 1280×920×1980

Shipping Volume: 2.33 CBM

• Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
