Description

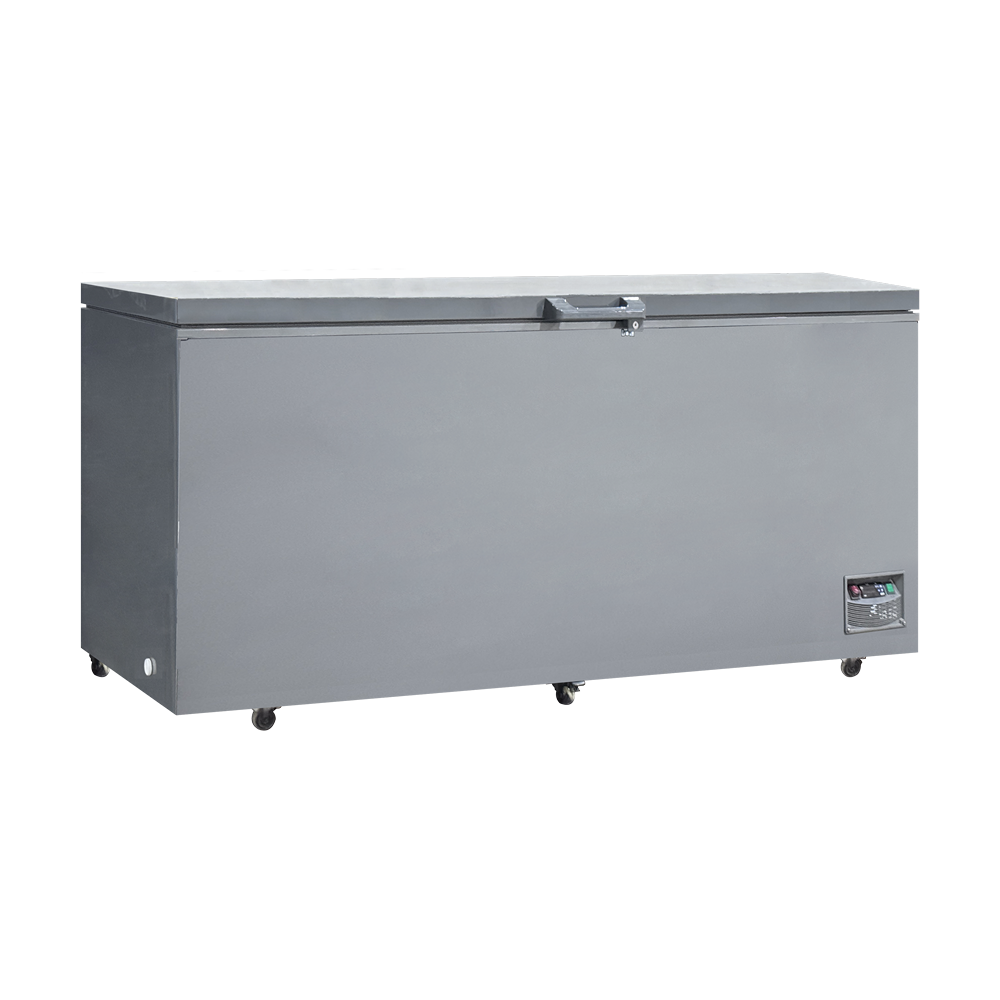

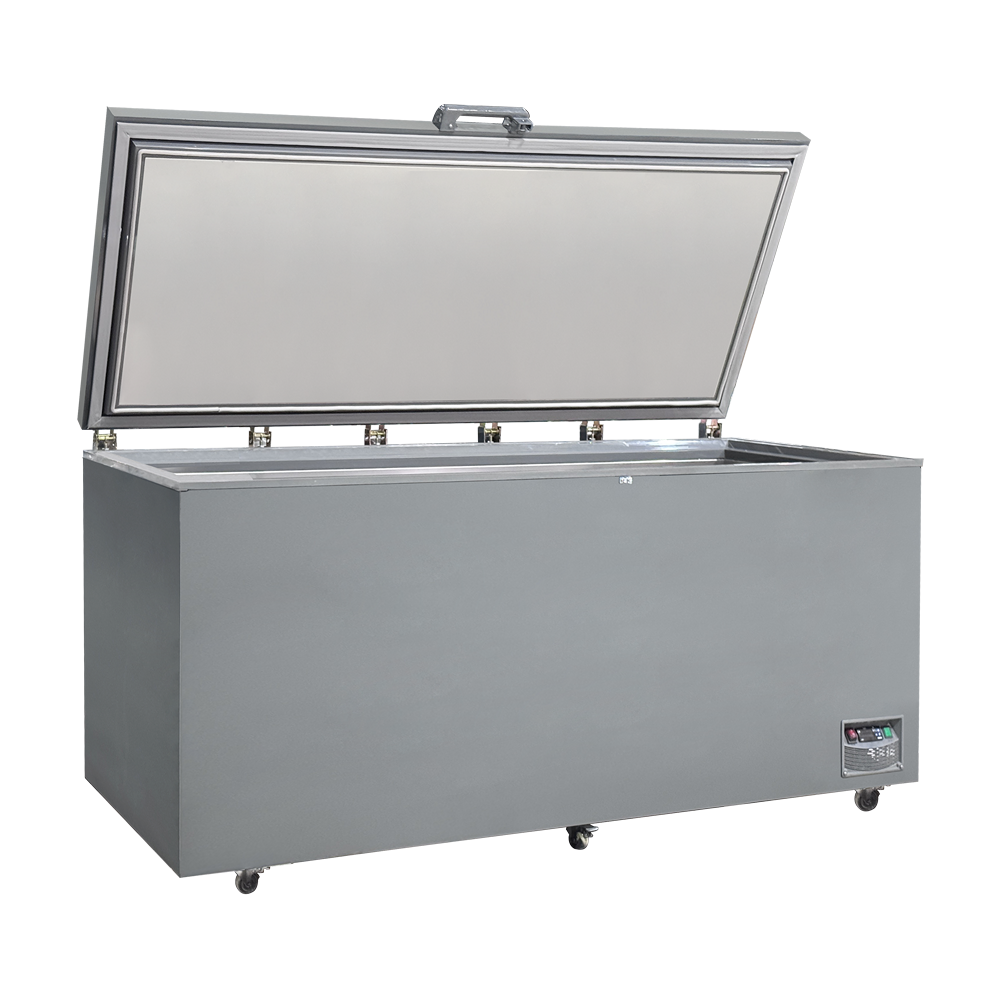

-60°C ULT Freezer

Applications

The -60°C ultra-low temperature freezers are designed for the long-term preservation of viruses, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.

Features

Accurate temperature controller, setting temperature range is -25 ~ -60°C, accuracy is 0.1 °C.

Suggested ambient temperature: +10~32°C.

Stainless Steel inner chamber for friendly use and easy cleaning.

Brand compressor to ensure excellent stability of the cooling system.

Patented refrigeration technology, high-efficiency mixed gas for the cooling system.

Security

Safety door lock to prevent unauthorized access.

Visual and audible alarm system: High/low temperature, sensor failure, controller error.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

Casters with stoppers for easy moving and fixation.

Special-designed service-free drainage system.

Specifications

Temperature Range: -25~-60℃

Ambient Temperature: 10~32 ℃

Capacity (L / Cu. Ft.): 105 / 3.71

Interior Dimensions (W×D×H) mm: 480×380×665

Exterior Dimensions (W×D×H) mm: 680×580×935

Weight: 65 kgs

Noise: 53 dB

Control and Power

Controller Display: Microprocessor Digital

Sensor: NTC

Voltage and Frequency: 220V±10%, 50/60Hz

Power: 380W

Electric Current: 2.36 A

Power Consumption (kWh/24h): 3.17

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Refrigeration

Refrigeration Type: Direct-cooling

Defrost: Manual

Compressor (pcs): CUBIGEL / 1

Refrigerant (weight): R4001 / 170g

Cabinet

Door (pcs): Foamed Solid Door / 1

Interior Cabinet Material: Stainless Steel

Exterior Cabinet Material: Coated Steel

Insulation Material: PURF (δ100mm)

Test Hole (pcs): 1

Castors (pcs): 4

Accessories

Temperature Datalogger: Optional

Protective Gloves: Optional

Shipping

Package: Carton box with pallet

Shipping Weight: 73 kgs

Shipping Size (W×D×H) mm: 760×740×1050

Shipping Volume: 0.59 CBM

• Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
