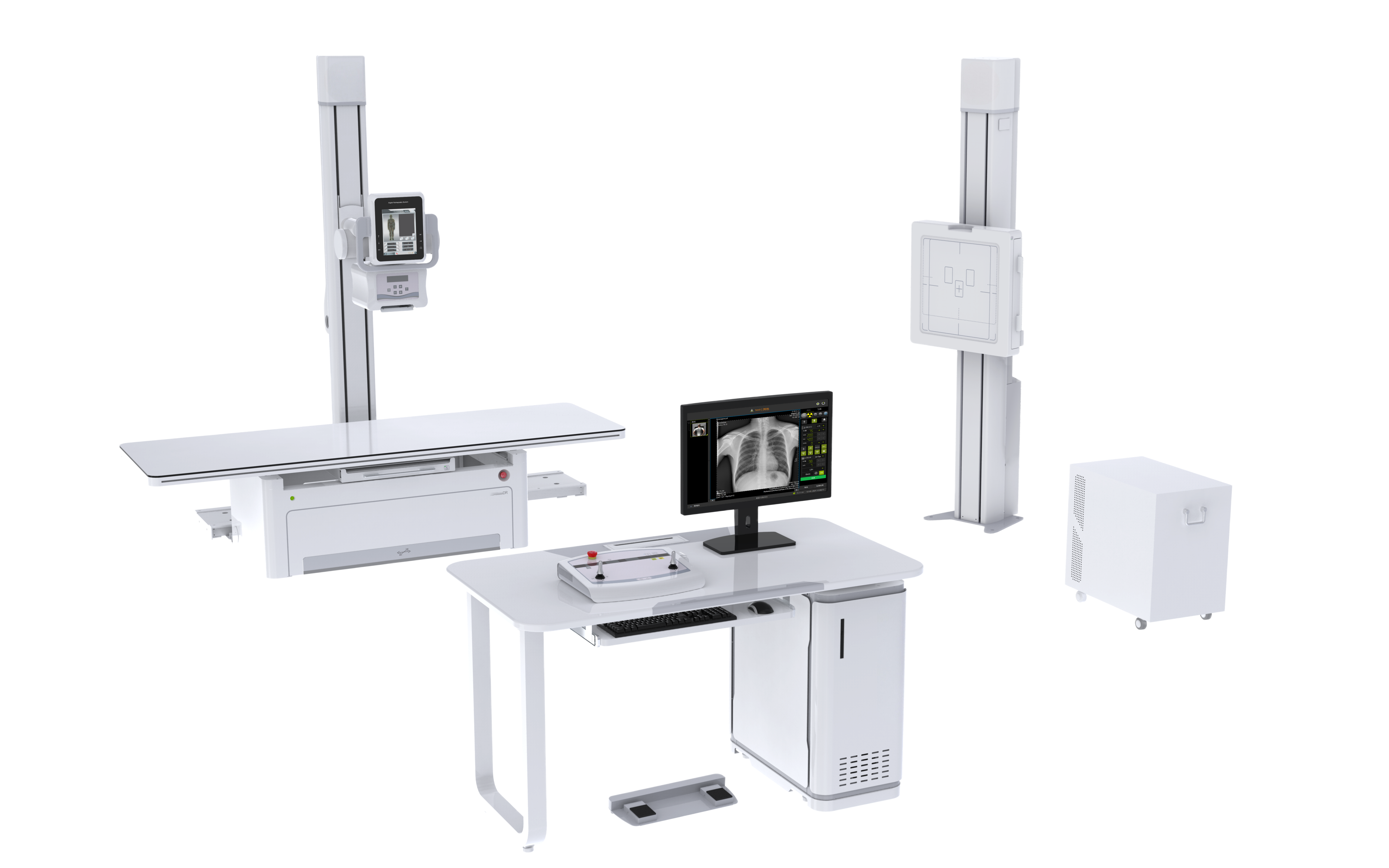

C260313001 All-In-One Digital Fluoroscopy X-ray System (DRF)

Core Overview

C260313001 is a high-performance all-in-one DRF digital fluoroscopy X-ray system that integrates digital radiography, dynamic fluoroscopy, digital gastrointestinal graphy and digital angiography in one device, with optional advanced functions such as DSA, tomosynthesis, dual energy, AEC and DAP. Equipped with a 65.5KW high-power high-frequency generator, Canon professional X-ray tube and 17×17 inch high-definition dynamic FPD, it features high-quality imaging, intelligent mechanical design, humanized operation and comprehensive clinical applicability. The product has obtained ISO9001, ISO13485 and CE certifications, with a global after-sales service network covering over 60 countries, and is suitable for all clinical departments of general radiology, gastroenterology, urology, gynecology and other specialized departments.

Core Clinical Functions & Applicable Scenarios

Four Core Examination Capabilities

1. Digital Radiography: Covers radiographic examination of all human body parts, supporting conventional radiography, image stitching, precise visual radiography, large-area fracture radiography and large-scale physical examination radiography, applicable to all general radiology departments.
2. Digital Fluoroscopy: Realizes fluoroscopy, fluoroscopic positioning and puncture for all body parts, suitable for gastroenterology, urology, gynecology and other departments.
3. Digital Gastrointestinal Graphy: For esophageal, upper gastrointestinal and total gastrointestinal angiography, mainly used in gastroenterology and general surgery.
4. Digital Angiography: Adapts to oral cholecystography, IVP, hysterosalpingography, ERCP and other general/special angiography, applicable to digestive surgery, urology, gynecology, etc.

Unique Visual Radiography

Supports millisecond high-definition spot imaging during fluoroscopy, captures lesions accurately through multi-angle dynamic inspection, avoids missed/misdiagnosis from blind shooting, and realizes rapid foreign body positioning, which is crucial for early detection of occult lesions and emergency rescue.

Comprehensive Examination List

Covers 35+ common radiography positions (chest, abdomen, spine, joints, skull, etc.) and various dynamic fluoroscopy/angiography items (gastrointestinal barium meal, barium enema, urography, etc.), with optional DSA, tomosynthesis and dual energy to meet personalized clinical needs.

Key Technical Specifications

Power & X-ray Generator System

• Power condition: 380V±38V, 50Hz±10Hz, capacity ≥105kVA, internal resistance ≤0.17Ω
• Generator parameters: 65.5KW power, 500KHz inverter frequency; radiography tube voltage 40kV-150kV, tube current 10mA-800mA, mAs 0.1mAs-1000mA, exposure time 1.0~10000ms
• Fluoroscopy parameters: non-industrial frequency, 0.5mA~10mA continuous fluoroscopy, 5mA~20mA pulse fluoroscopy

X-ray Tube (Canon E7254FX)

• Focus: 1.2mm (big)/0.6mm (small), input power 102kW/40kW (180Hz)
• Anode thermal capacity: 285KJ (400KHU), rotary anode speed: 9700rpm (180Hz), target angle 12°

Dynamic Flat Panel Detector (FPD)

• Active area: 427mm×427mm (17×17 inch), pixel matrix 3072×3072, pixel pitch 139μm
• Limiting resolution ≥3.71 line pair/mm, 16 bit A/D transition, acquisition speed up to 30fr/s, energy range 40-150kVp

Collimator & Filter

• Collimator: LED view light (DC3.6V/5W), brightness >100Lux, visible light illumination 5s~45s (adjustable)
• Filter: ≥1mmAL; standard double high-density grids (removable for low-dose examinations)

Diagnostic Table & Mechanical Movement

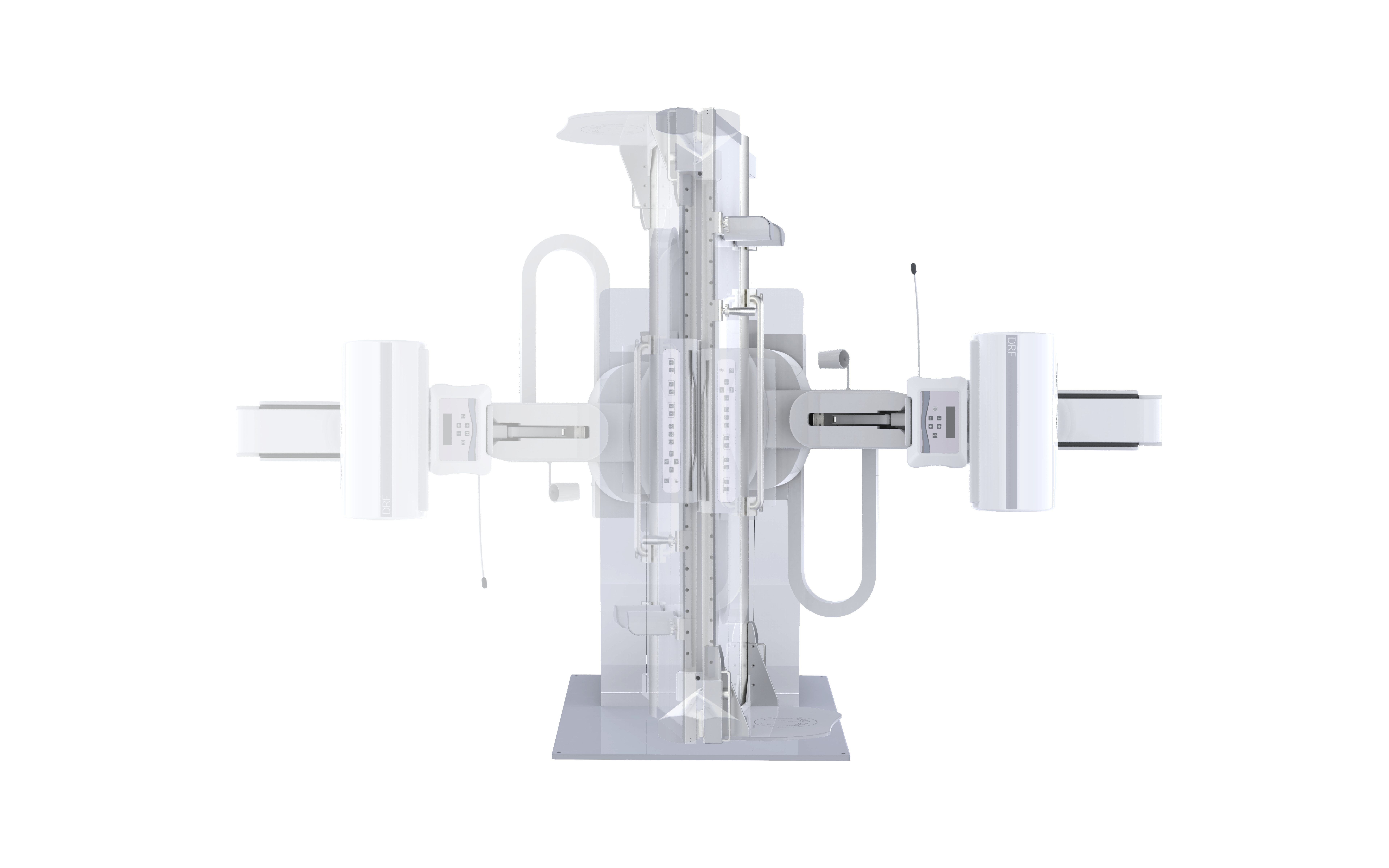

• Table performance: tilting range +90°~0°~-90°, elevating 550-1350mm, lateral movement 320mm, loading capacity 200KGS

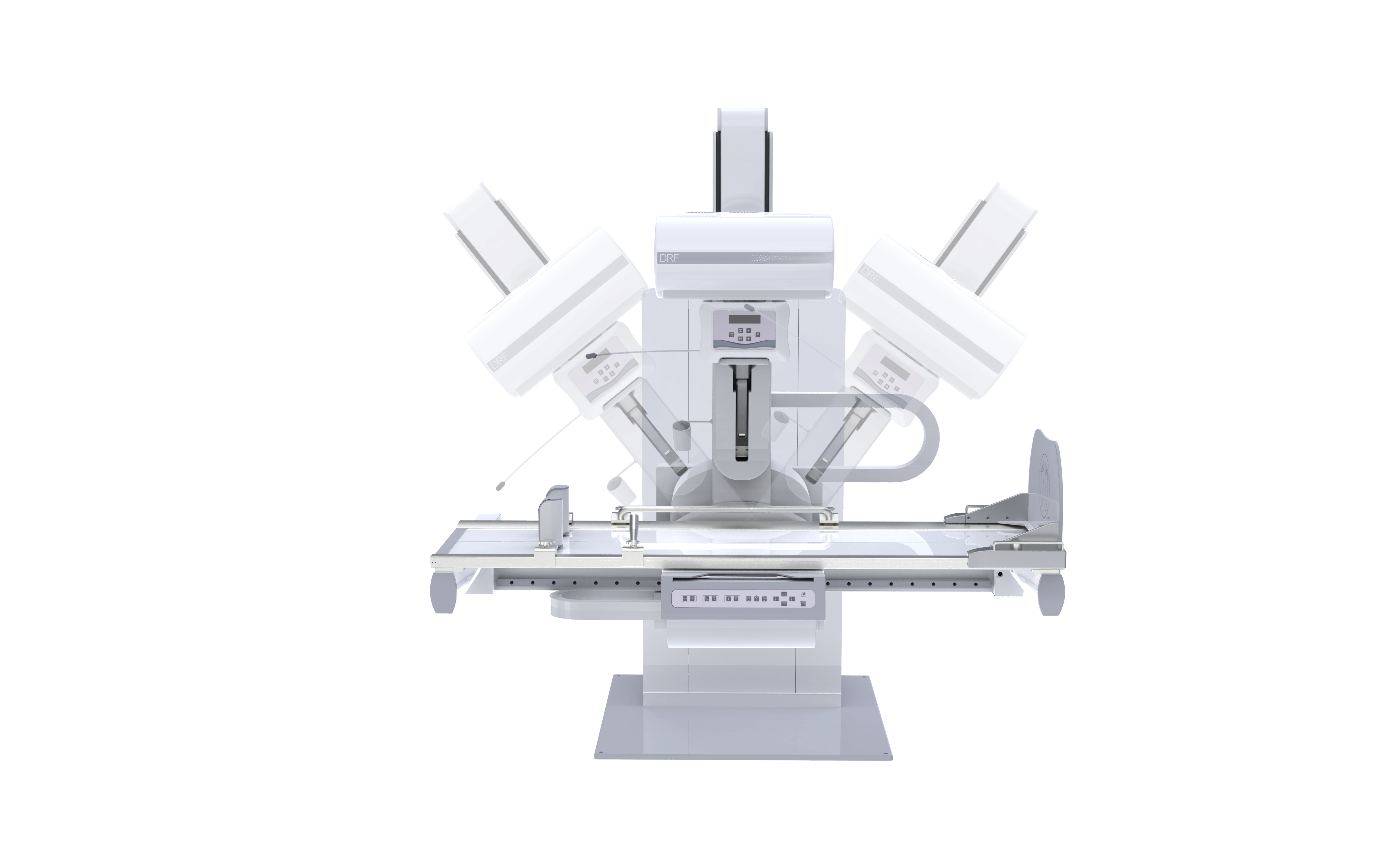

• Mechanical range: detector vertical movement 1300mm, tube swing ±45°, SID stretch 1000mm~1800mm

Workstation Computer System

• Hardware: CPU i5-7500, RAM 8GB, storage 500G+1TB, 2M gray scale display
• Software: supports one-button switch between radiography/fluoroscopy mode, with complete image acquisition, processing, management and measurement functions

Core Product Advantages

1. High-Quality Imaging Chain: 500kHz ultra-high inverter frequency generator ensures stable, low-dose radiation output; Canon high-speed high-heat-capacity X-ray tube supports long-time continuous work; 17×17 inch dynamic FPD with 30fps frame rate provides distortion-free, high-resolution static/dynamic images, and millisecond spot imaging captures lesions accurately.
2. Intelligent Mechanical Design:
3. Efficient & Humanized Operation:
4. Rich Standard & Optional Functions: Standard with double high-density grids and image stitching; optional AEC (automatic exposure control), DAP (radiation dose monitoring), DSA, tomosynthesis, dual energy and specialized surgical console, meeting the diverse needs of different medical institutions and clinical scenarios.
5. Reliable Quality & Global After-Sales: Obtained ISO9001, ISO13485, CE certifications; the manufacturer has 20 years of industry experience, serving nearly 10,000 global customers; with over 100 overseas local engineers in 60 countries and 100+ Chinese after-sales engineers, matching professional multi-modal logistics to ensure safe delivery and timely maintenance.

Optional High-Value Functions

1. DAP Function: Intelligent radiation dose monitoring system, records single examination dose and manages patient radiation absorption, meeting European and American export standards with visualized safety data.
2. AEC Function: Automatically controls exposure time, ensures uniform image brightness for different parts/patients, reduces operation difficulty, and is suitable for large-scale physical examinations and outpatients.
3. Image Stitching: Realizes panoramic stitching of full spine/full lower limb images, providing reliable basis for preoperative planning and postoperative review of spinal/lower limb deformity treatment.
4. Specialized Surgical Console: Enables on-site operation by doctors near the equipment, shortens the distance between the machine room and operating area, and improves the efficiency of interventional surgery.
5. Advanced Imaging Functions: Optional DSA (digital subtraction angiography), tomosynthesis and dual energy imaging, further enriching clinical diagnostic capabilities.

Global Layout & Certification

• Quality Certifications: ISO9001, ISO13485, CE
• Global Installation: Covering more than 100 countries and regions, with targeted marketing activities in Southeast Asia, Africa, Central Asia, the Middle East, Latin America and Europe
• After-Sales Network: Professional pre-sales/in-sales/after-sales service team, over 100 overseas local engineers and 100+ Chinese after-sales engineers, with global logistics cooperation to ensure safe and fast delivery.
