Applications

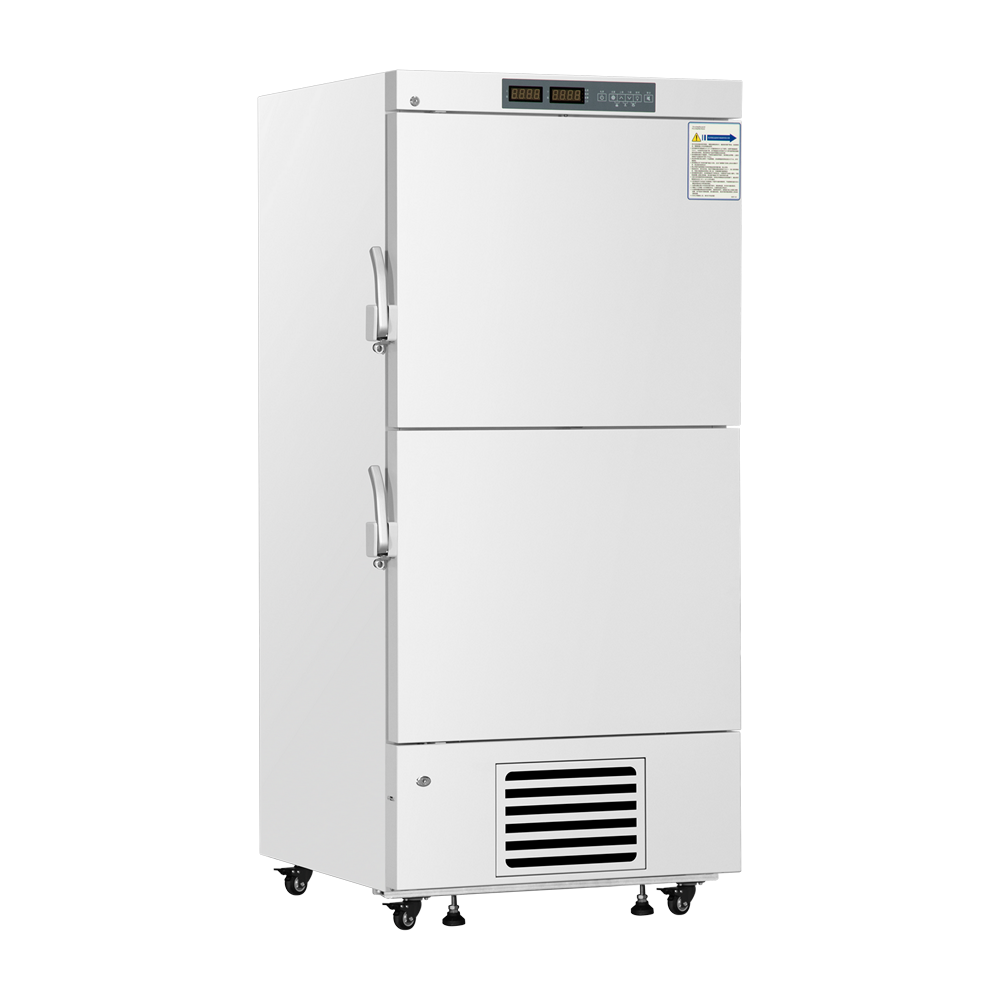

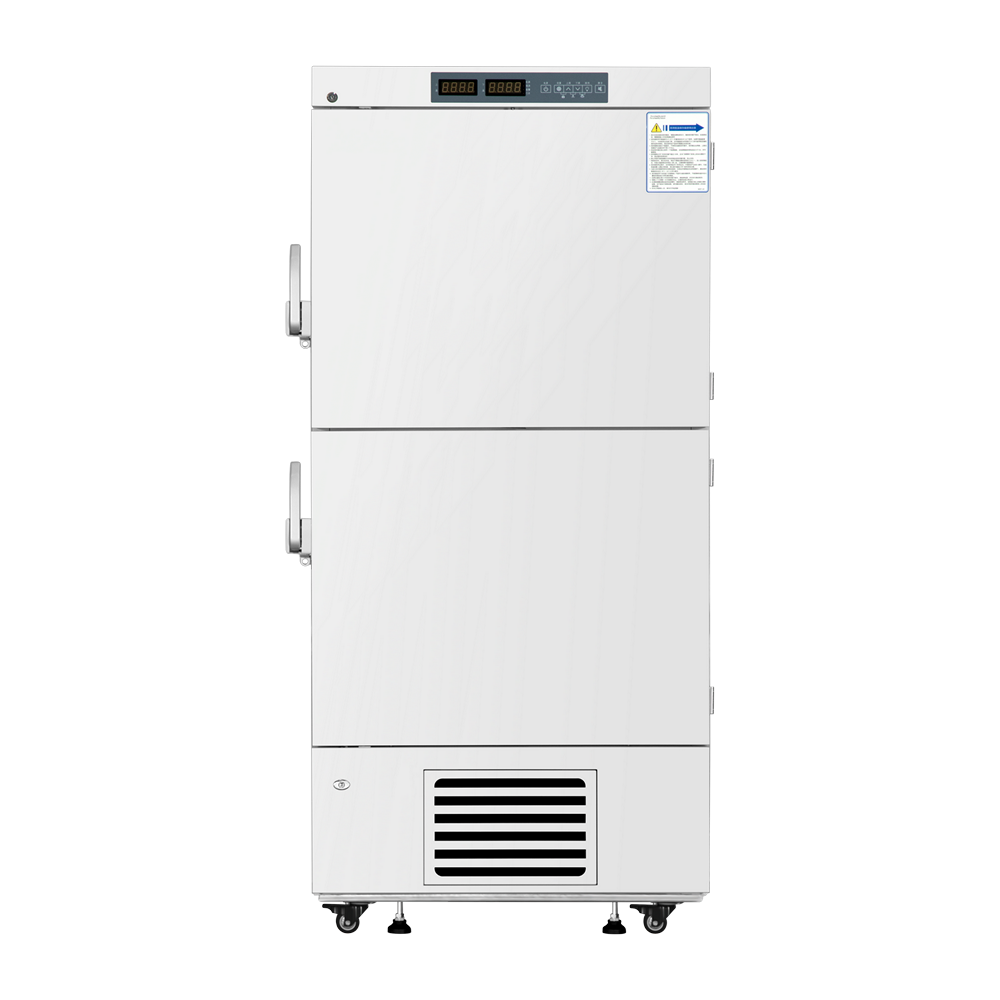

The -40 °C medical deep freezers are designed to store vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and medical fields.
Features
■ Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C
■ Double outside doors and two independent freezer chambers.
■ HC green refrigerant is energy-saving and environmentally friendly.
■ Wide available voltage range: 220V±10%.
Security
■ Safety door lock and controller password to prevent unauthorized access.
■ Built-in backup battery to display temperature and alarms when power failure or system error.
■ Visual and audible alarm system.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.
Humanized design

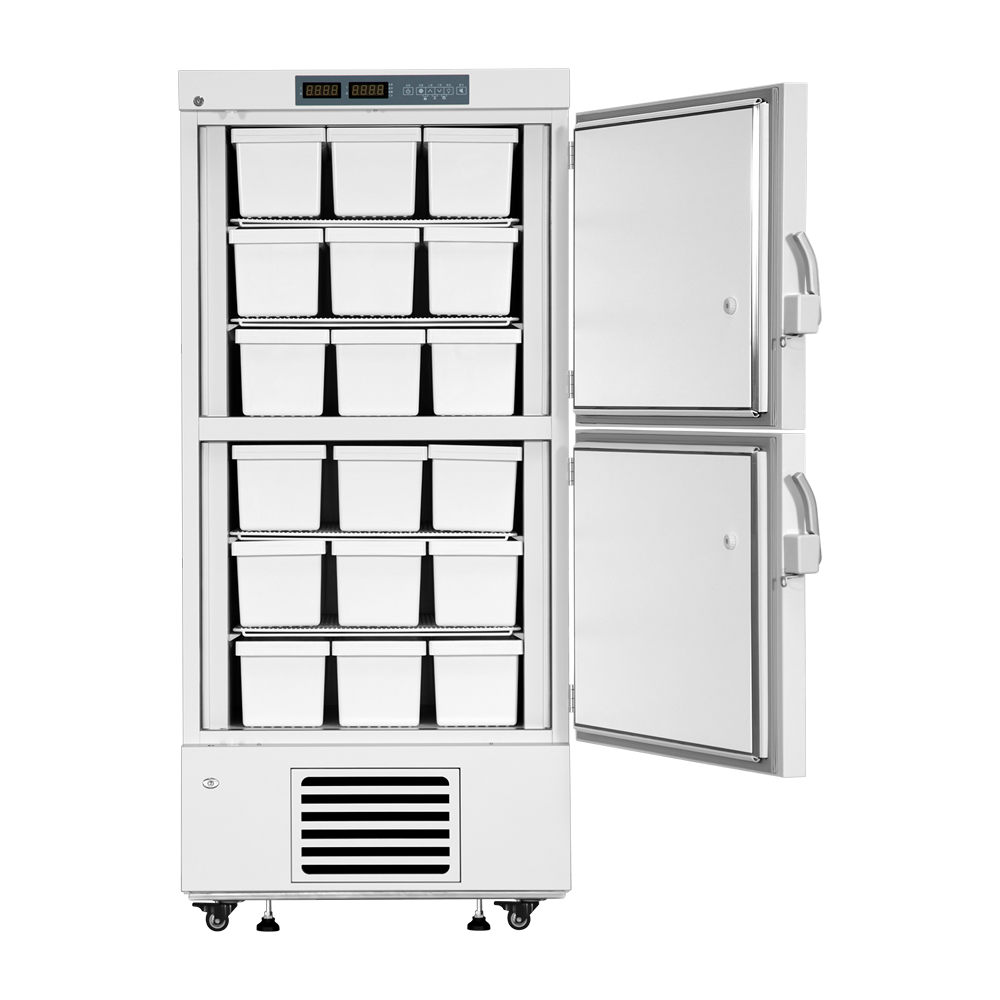

■ Drawers for easy storage.
■ Casters with stoppers for easy moving and fixation.
Specifications
| Model NO. | C260324060 |
| Main Specifications | |
| Temperature Range | -20 ~ -40 ℃ |
| Ambient Temperature | 10~32℃ |
| Capacity (L/Cu. Ft.) | 264×2 / 9.33×2 |
| Interior Dimensions (W×D×H) mm | 651×632×635×2 |
| Exterior Dimensions (W×D×H) mm | 900×818×1875 |
| Weight | 160 kgs |
| Noise | 55 dB |
| Control and Power | |
| Controller | Microprocessor |
| Display | Digital |
| Sensor | NTC |
| Voltage and Frequency | 220V±10%, 50/60Hz |
| Power | 452 W |
| Electric Current | 3.2 A |
| Power Consumption (kWh/24h) | 7.81 |
| Audible and Visual Alarms | |
| High / Low Temp. Alarm | Yes |
| Power Failure Alarm | Yes, 8h |
| Sensor Error Alarm | Yes |
| Controller Error Alarm | Yes |
| Door Ajar Alarm | Yes |
| Abnormal Ambient Temp. Alarm | Yes |
| Refrigeration | |
| Refrigeration Type | Direct Cooling |
| Defrost | Manual |
| Compressor (Brand/pcs) | CUBIGEL / 2 |
| Refrigerant / Weight | R290 / 172g |
| Cabinet | |
| Door (pcs) | Foamed Solid Door / 2 |
| Shelf (pcs) | 4 |
| Drawer (pcs) | 18 |
| Interior Cabinet Material | Coated Steel |
| Exterior Cabinet Material | Coated Steel |
| Insulation Material | PURF (δ95mm) |
| Door Lock | Yes |
| Test Hole (pcs) | 2 |
| Castors (pcs) | 4 |
| Leveling Feet (pcs) | 2 |
| Accessories | |
| USB Data Download Port | Yes |
| Remote Alarm Port | Yes |
| RS485 Port | Optional |
| Temperature Datalogger | Optional |
| Temperature Printer | Optional |
| Temperature Chart Recorder | Optional |
| Shipping | |
| Package | Carton box with pallet |
| Shipping Weight | 190 kgs |
| Shipping Size (W×D×H) | 930×980×2020 |
| Shipping Volume | 1.84 CBM |
