Description

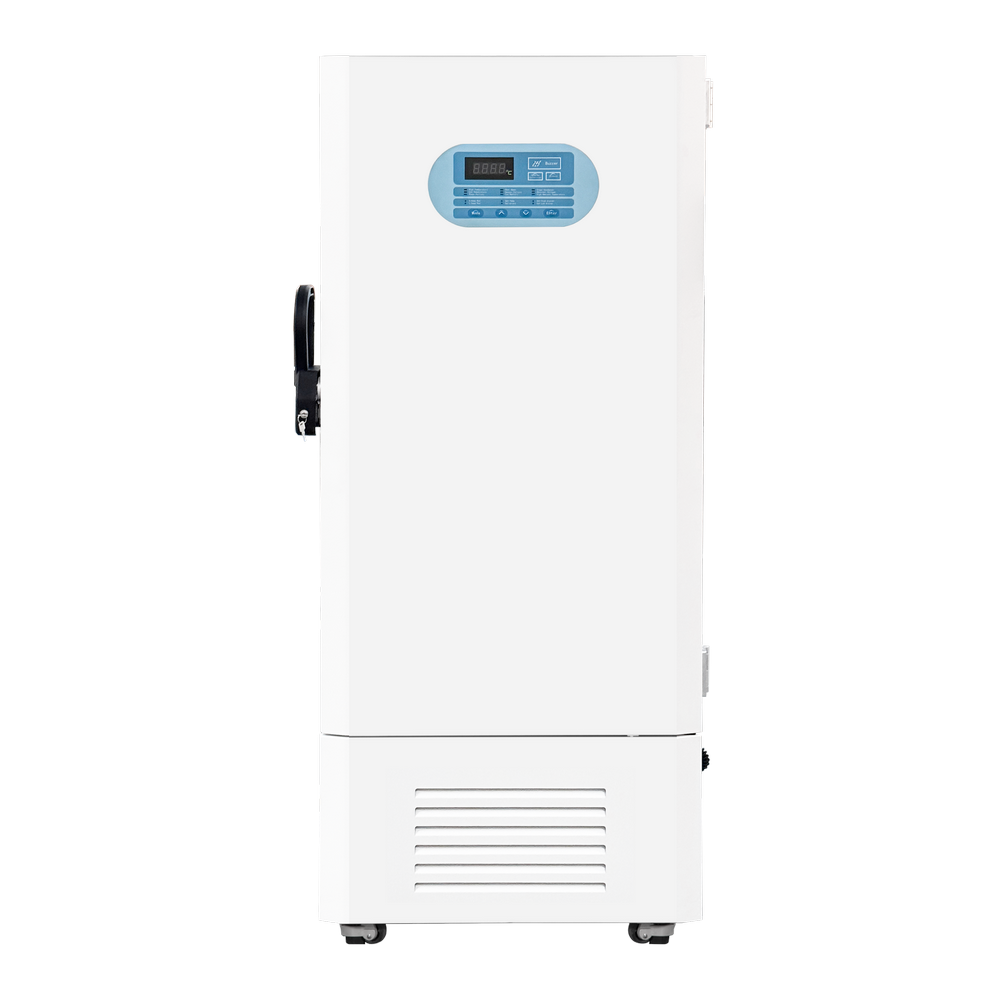

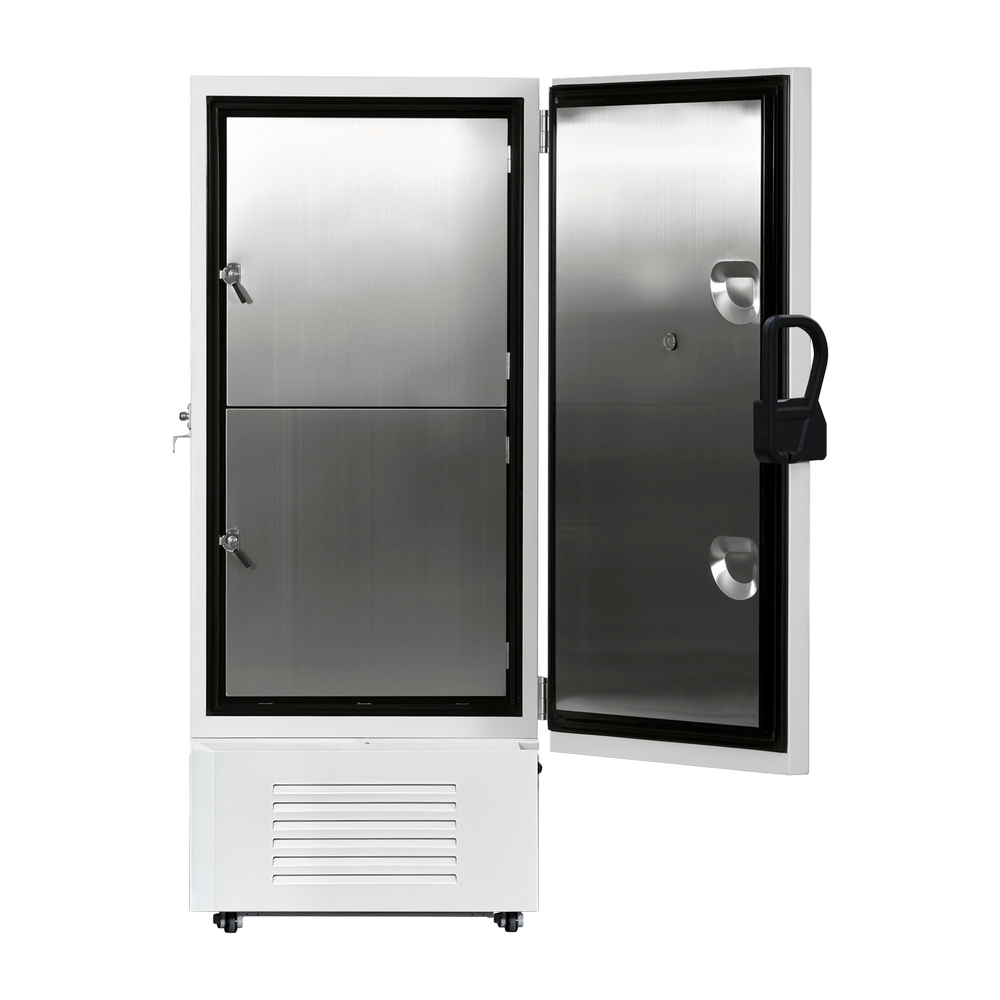

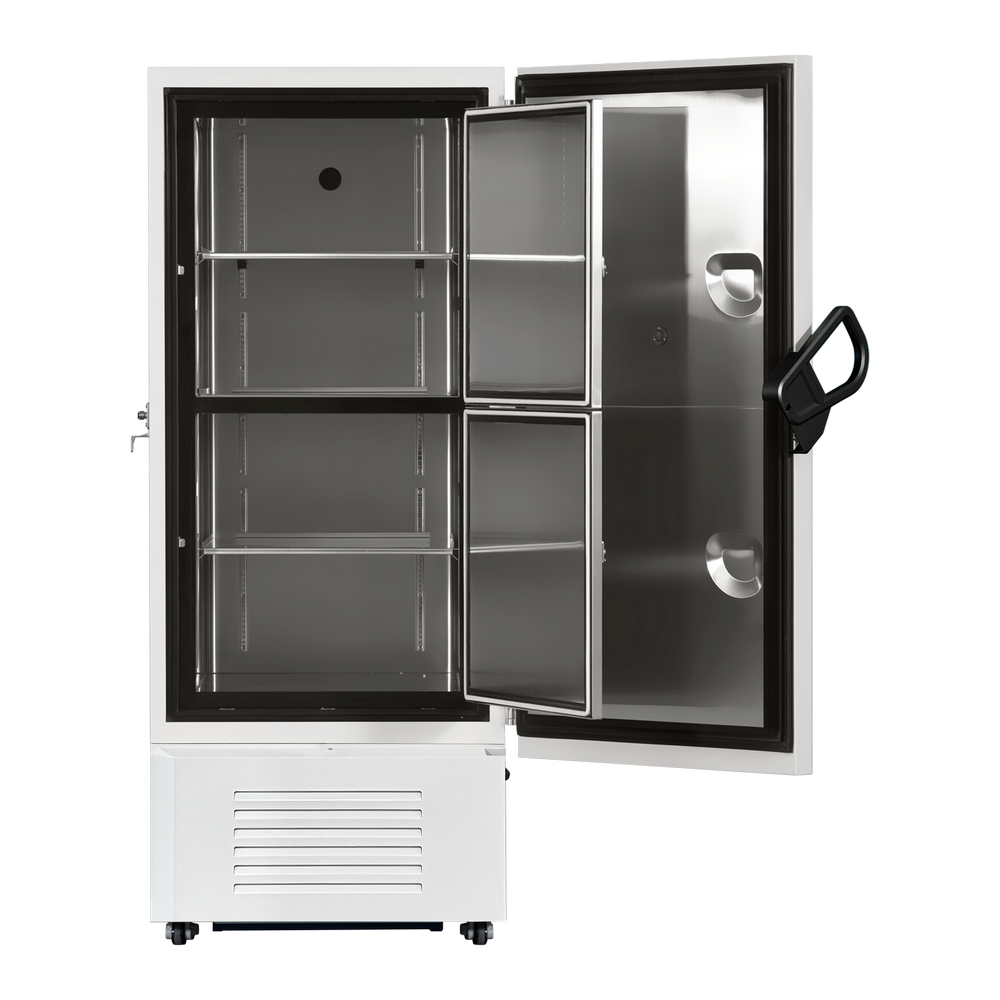

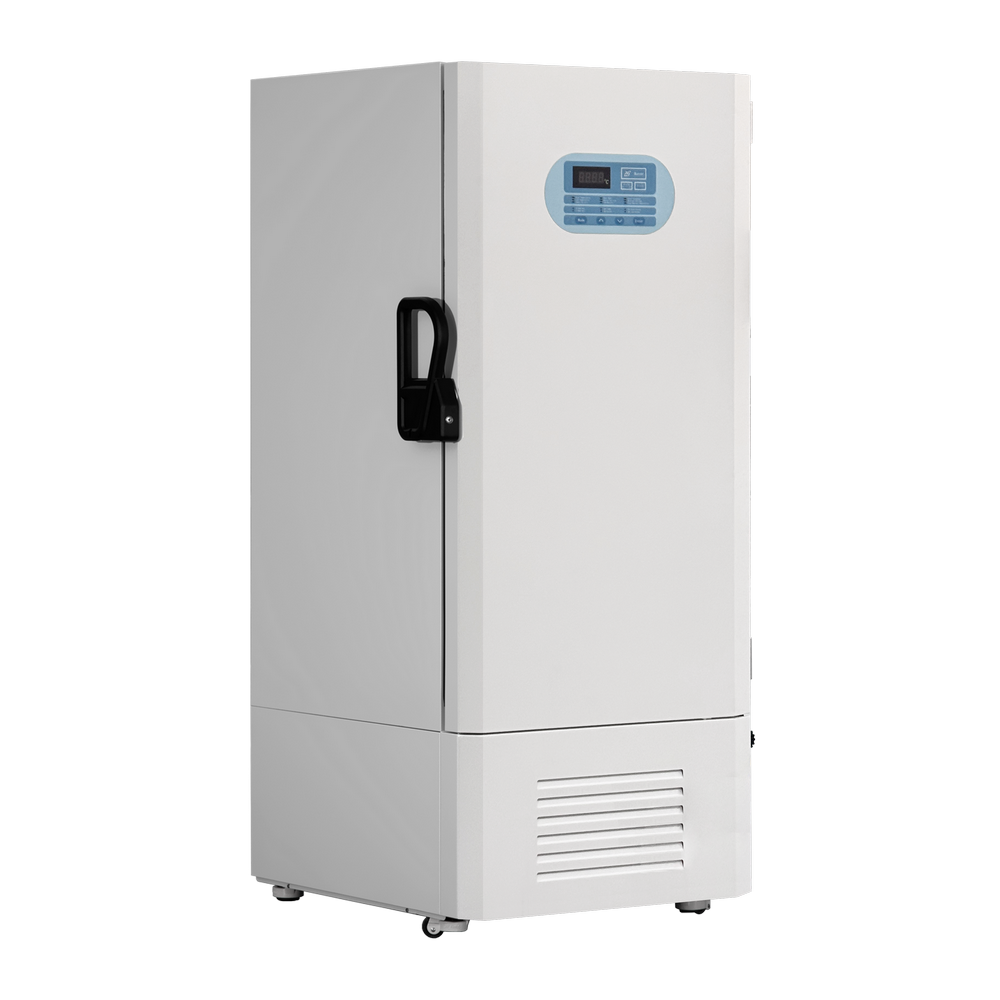

-86°C Ultra-low Freezer QuickCool Series

Applications

The -86°C ultra-low temperature freezers are designed for the long-term preservation of viruses, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.

Features

Accurate temperature controller, setting temperature range of -40 to -86°C, and accuracy is 0.1 °C.

Suggested ambient temperature: +10 to 32°C.

Stainless steel inner chamber for friendly use and easy cleaning.

Brand compressor to ensure excellent stability of the cooling system.

Patented refrigeration technology, high-efficiency mixed gas for the cooling system.

Security

Safety door lock to prevent unauthorized access.

72h built-in backup battery to power the controller and save temp. data when power failure or system error.

Visual and audible alarm system: High/low temperature, sensor failure, controller error, etc.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

Adjustable shelves for easy storage.

Special-designed service-free drainage system.

Specifications

Temperature Range: -40 ~ -86 ℃

Ambient Temperature: 10~32℃

Capacity (L/Cu. Ft.): 410 / 14.48

Max Loading of 2’ Cryo-box and 2ml Cryo-vial (pcs): 288 / 28,800

Noise: 50 dB

Control and Power

Controller / Display: Microprocessor / 7' Touch Screen

Sensor: PTC

Voltage and Frequency: 220V±10%, 50Hz

Power: 550 W

Electric Current: 5 A

Power Consumption (kWh/24h): 9.15

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Power Failure Alarm: Yes, 72h

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Door Ajar Alarm: Yes

Abnormal Voltage Alarm: Yes

Abnormal Ambient Temp. Alarm: Yes

Battery Error Alarm: Yes

Condenser Error / Filter Net Clean Alarm: Yes

Refrigeration

Refrigeration / Defrost Type: Direct Cooling / Manual

Compressor (Brand/pcs): SECOP / 1

Refrigerant / Weight: R4001 / 290g

Cabinet

Door (pcs): Foamed Solid Door x 1

Inner Door (pcs): Foamed Solid Door x 2

Adjustable Shelf (pcs): 3

Exterior / Interior Cabinet Material: Coated Steel / Stainless Steel

Insulation Material: PURF (δ100mm) and Vacuum Insulation Panel (VIP)

Door Lock: Yes

Test Hole (pcs): 1

Castors / Leveling Feet (pcs): 4 / 4

Accessories

USB Data Download Port: Yes

Remote Alarm Port: Yes

RS485 Port: Optional

Temperature Datalogger: Optional

Temperature Printer: Optional

Temperature Chart Recorder: Optional

Protective Gloves: Optional

LN2/CO2 Backup System and LN2 Filling Tank: Optional

Dimensions

Interior Dimensions (W×D×H): 604×575×1180 mm

Exterior Dimensions (W×D×H): 884×957×1936 mm

Package Dimensions (W×D×H): 960×1030×2120 mm

Net / Gross Weight: 223 / 271 kgs

Shipping Volume: 2.1 CBM

Package: Plywood box with pallet

Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
