Description

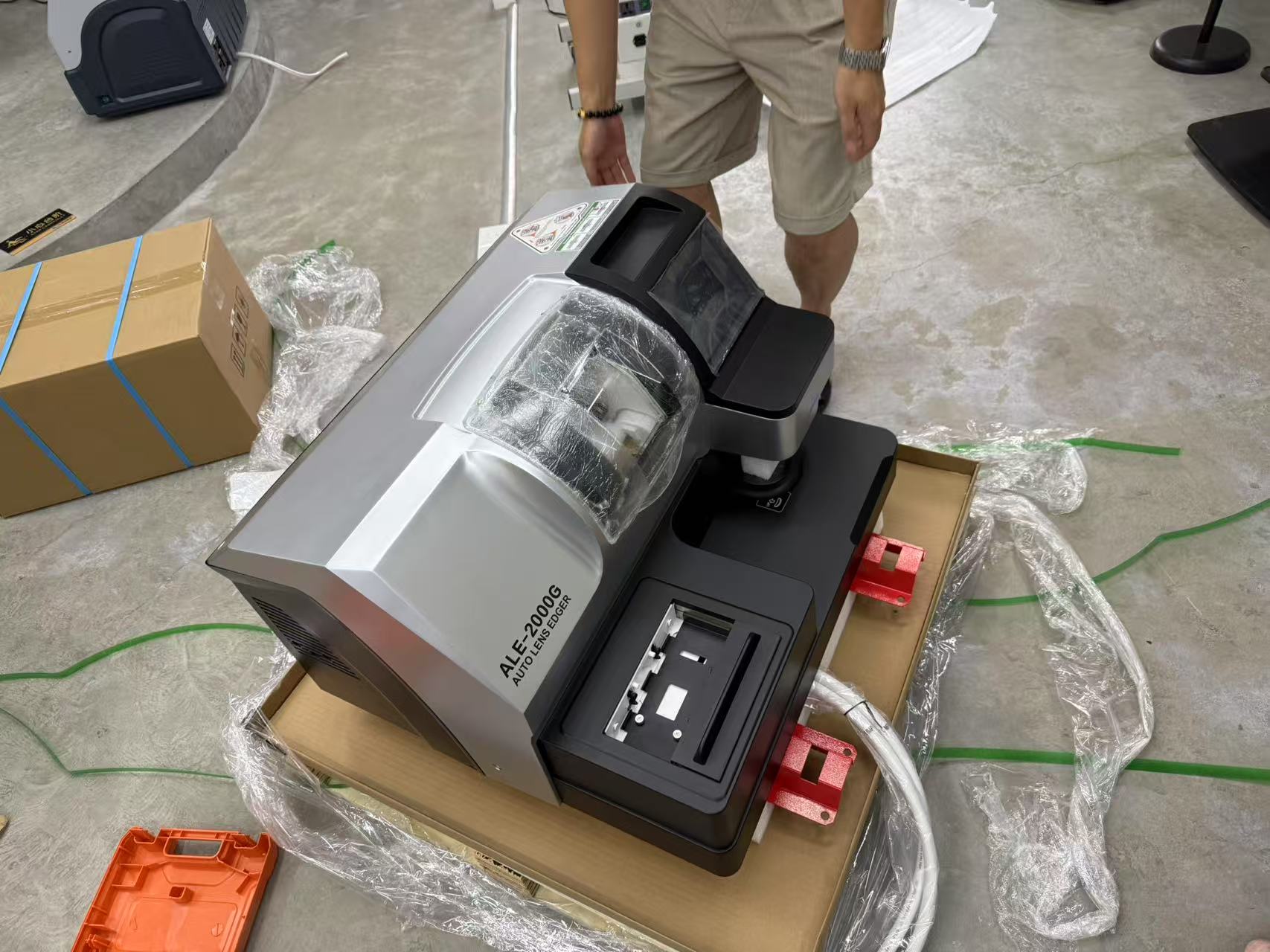

3D Auto Patternless Lens Edger

Width Scan Size: Min 20mm, Max 58mm

Length Scan Size: Min 30mm, Max 68mm

Frame Thickness: Min 2.0mm, Max 16mm

Built-in high-precision optical scanner with fast, distortion-free scanning; supports 3D mechanical scanning for single lenses, binocular lenses, and templates.

8-inch HD LCD touch screen Resolution of 1024×768; displays left and right lens graphics at 1:1 scale.

Graphic Menu Easy identification and user-friendly operation

The preview interface allows quick input of pupillary distance and height

Scan data can be saved Up to 500 templates can be stored

Open adjustment options Maximize parameter flexibility while minimizing cumbersome calibration and maintenance

Integrated scanning center

Supports processing of various lens materials, including CR-39, PC, high-index, hard resin, glass, etc.

Built-in pointed edge and flat edge polishing wheels, slotting, and beveling functions.

Multiple edging and slotting modes to meet different frame requirements (automatic, 33%, 55%, front bend, back bend, manual sharp edge, etc.)

3-second rapid optical scanning

Stable mechanical scanning function
