Product info

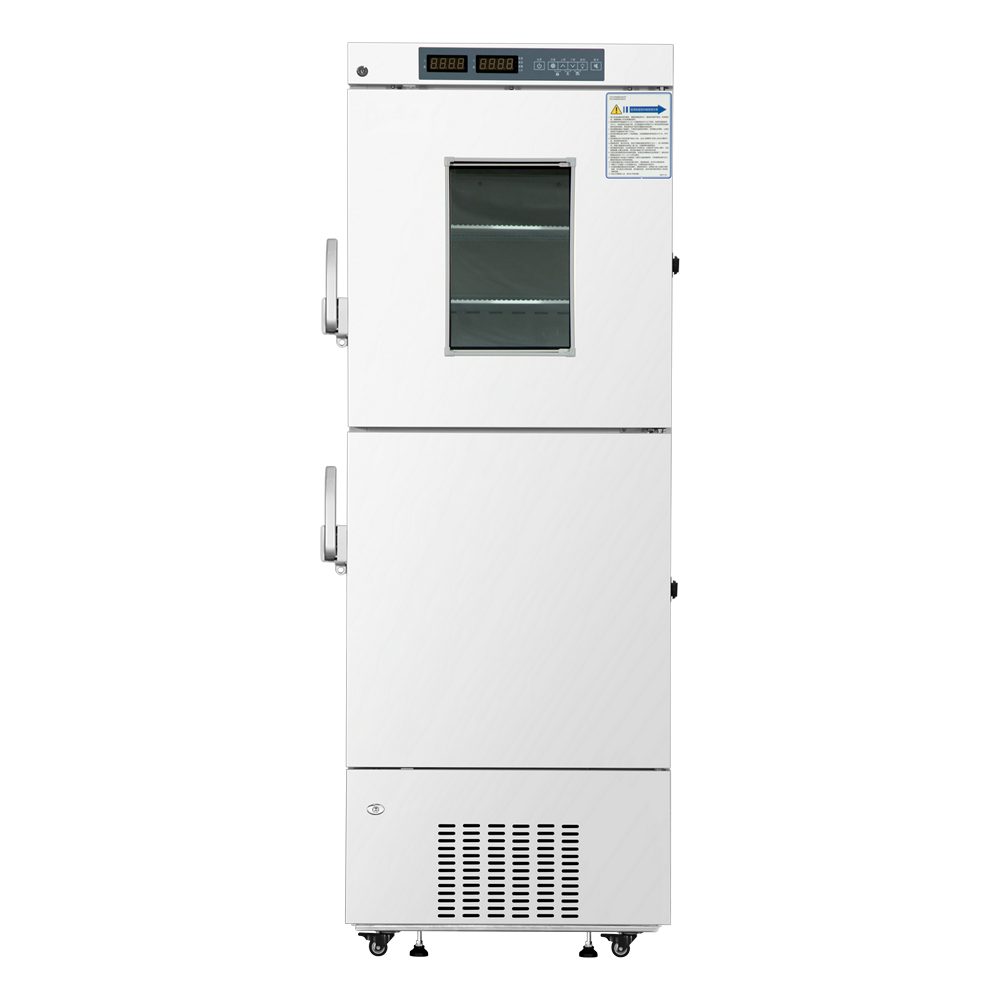

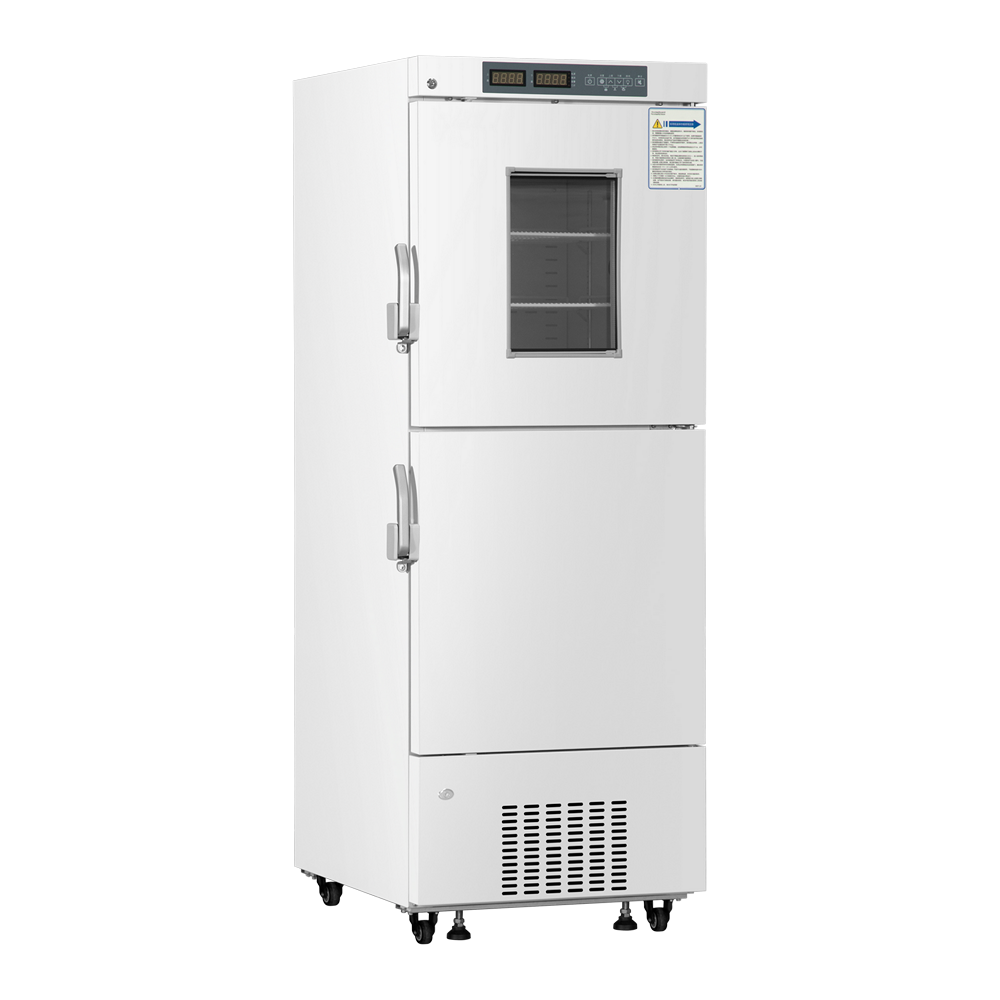

- Product name:368L Top Refrigerator Bottom Freezer - Energy Efficient Home Appliance
- Product code:C260324067
Packaging Specifications
- Outer Packaging Size:0.78 × 0.92 × 1.99 m
- Gross Weight:175 kg
- Net Weight:165 kg
- Volume:1.43
Description
Applications
Combined Refrigerator & Freezer are specially designed to store medicines, vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and electronic and medical fields.
Features
■ Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C
■ Double outside doors and two independent chambers.
■ HC green refrigerant is energy-saving and environmentally friendly.
■ Wide available voltage range: 220V±10%.
Security
■ Safety door lock and controller password to prevent unauthorized access.
■ Built-in backup battery to display temperature and alarms when power failure or system error.
■ Visual and audible alarm system.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: The cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors fail.
Humanized design

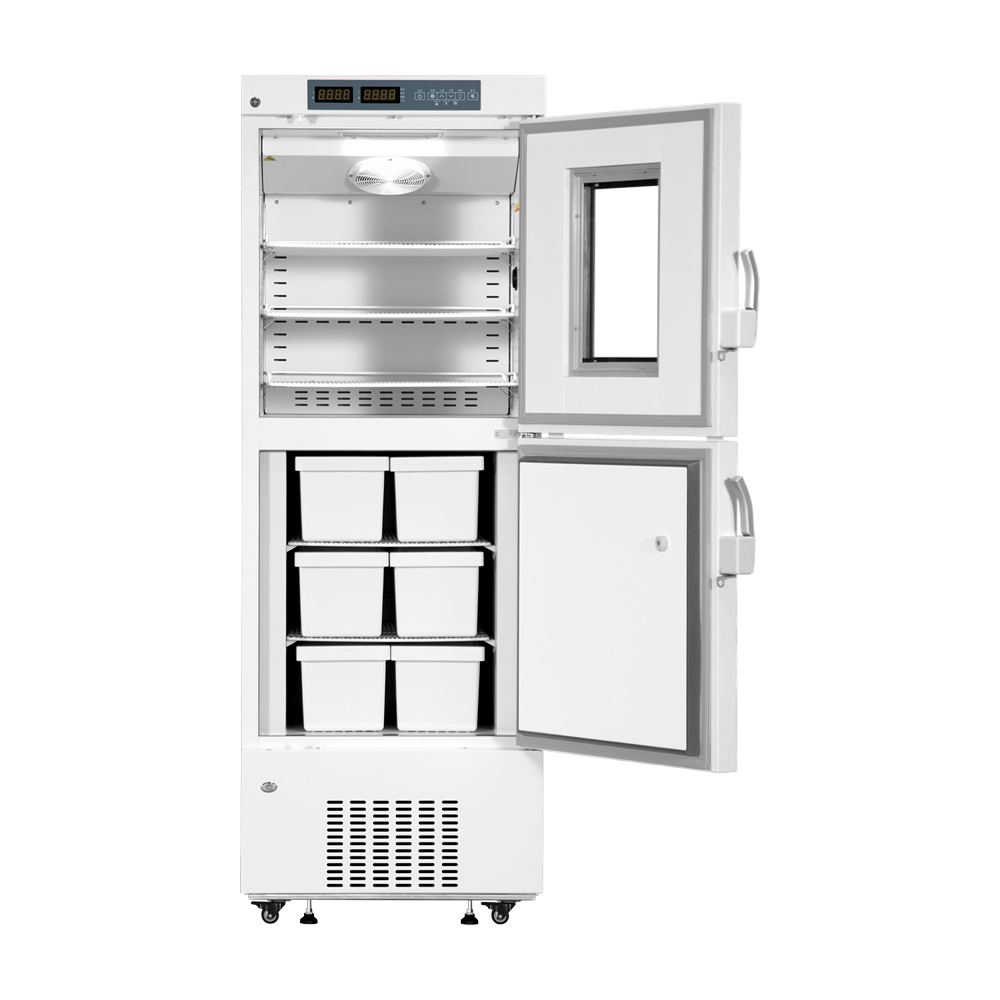

■ Adjustable shelves (Refrigerator) and drawers (Freezer) for easy storage.
■ Auto on/off LED light with manual switch on the control panel (Only for refrigerator).
■ Auto on/off cooling fan to prevent cold air from leaking out when the door is opening(Only for refrigerator).
■ Casters and adjustable feet for easy moving and fixation.
Specifications
| Model NO. | C260324067 |
| Main Specifications | |
| Temperature Range | F: -20 ~ -40 ℃; R: 2 ~ 8 °C |
| Ambient Temperature | 10～32℃ |
| Capacity (L/Cu. Ft.) | R: 189 / 6.67; F: 179 / 6.32 |
| Interior Dimensions (W×D×H) mm | R: 580×626×625; F: 466×636×625 |
| Exterior Dimensions (W×D×H) mm | 720×830×1870 |
| Weight | 135 kgs |
| Noise | 50 dB |
| Control and Power | |
| Controller | Microprocessor |
| Display | Digital |
| Sensor | NTC |
| Voltage and Frequency | 220V±10%, 50/60Hz |
| Power | 458 W |
| Electric Current | 2.45 A |
| Power Consumption (kWh/24h) | 6.9 |
| Audible and Visual Alarms | |
| High / Low Temp. Alarm | Yes |
| Power Failure Alarm | Yes, 8h |
| Sensor Error Alarm | Yes |
| Controller Error Alarm | Yes |
| Door Ajar Alarm | Yes |
| Abnormal Ambient Temp. Alarm | Yes |
| Refrigeration | |
| Refrigeration Type | R: Forced-air Cooling; F: Direct Cooling |
| Defrost | R: Auto; F: Manual |
| Compressor (Brand/pcs) | Chinese Brand / 2 |
| Refrigerant / Weight | R290 / 78g |
| Cabinet | |
| Door (pcs) | R: Foamed Glass Door / 1; F: Foamed Solid Door / 1 |
| Shelf (pcs) | 5 |
| Drawer (pcs) | 6 |
| Interior Cabinet Material | Coated Steel |
| Exterior Cabinet Material | Coated Steel |
| Insulation Material | R: PURF (δ38mm); F: PURF (δ95mm) |
| Door Lock | Yes |
| LED Lamp | R: Yes; F: - |
| Test Hole (pcs) | 2 |
| Castors (pcs) | 4 |
| Leveling Feet (pcs) | 2 |
| Accessories | |
| USB Data Download Port | Yes |
| Remote Alarm Port | Yes |
| RS485 Port | Optional |
| Temperature Datalogger | Optional |
| Temperature Printer | Optional |
| Shipping | |
| Package | Carton box with pallet |
| Shipping Weight | 175 kgs |
| Shipping Size (W×D×H) | 780×920×1990 |
| Shipping Volume | 1.51 CBM |
* Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
