Description

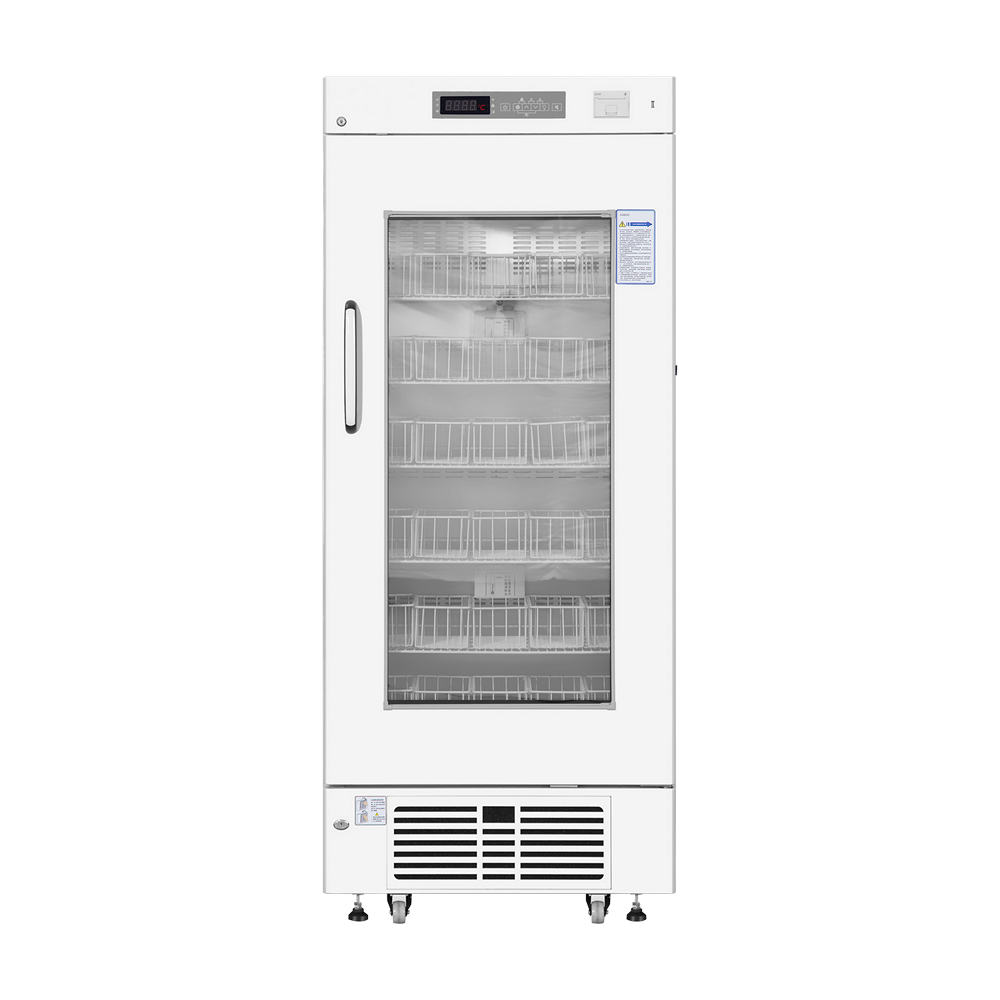

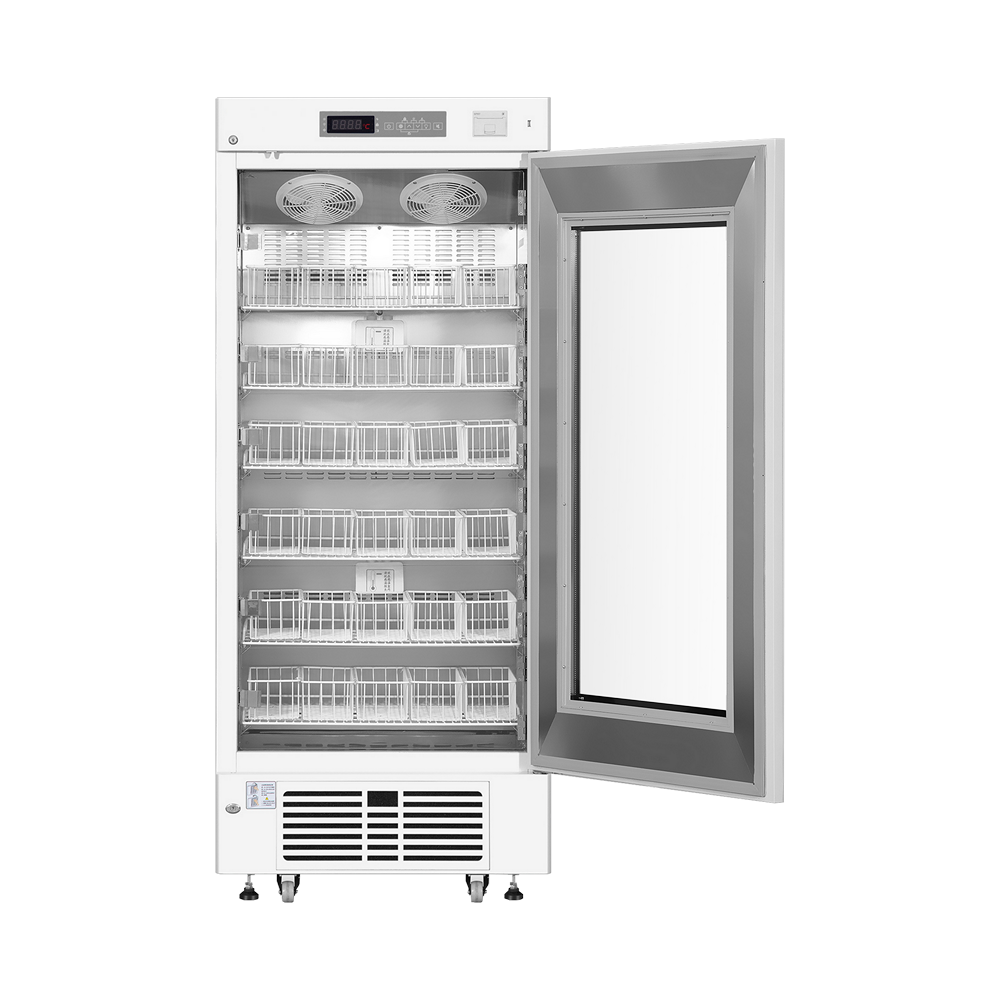

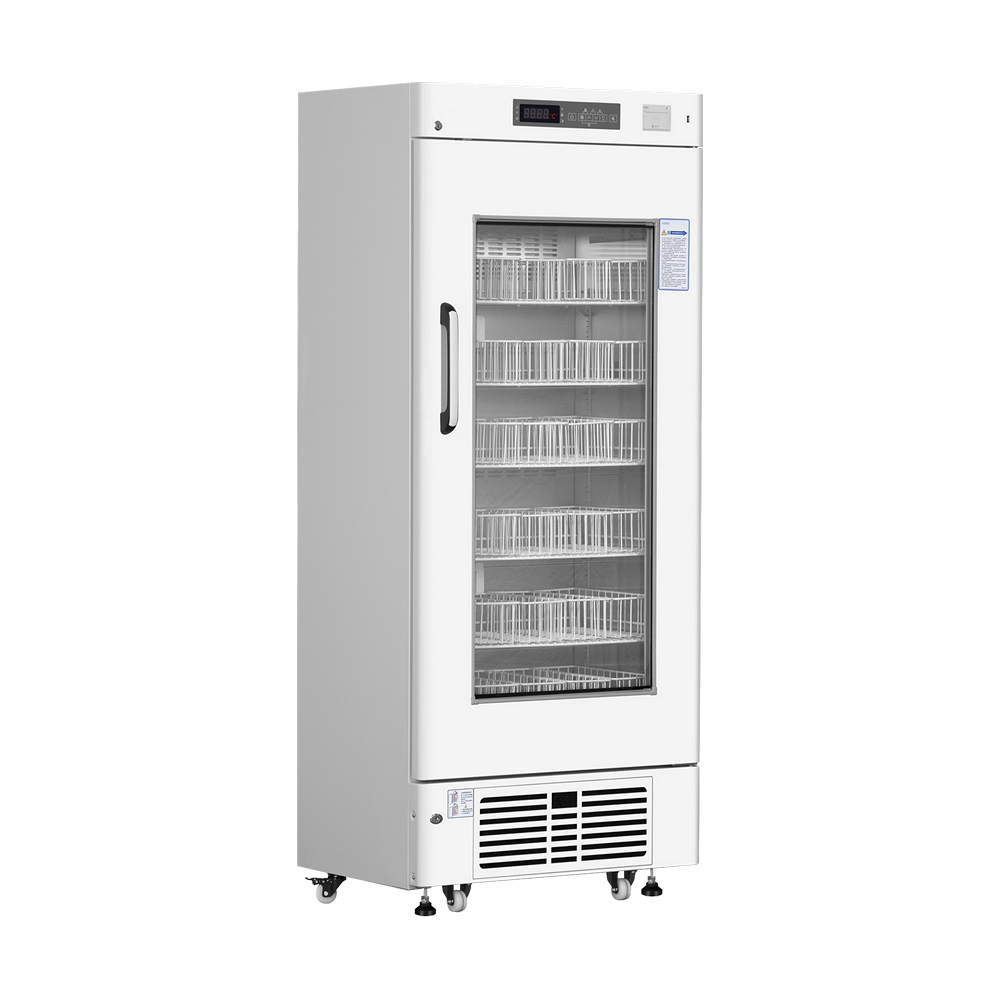

+4°C Blood Bank Refrigerator (Forced-air Cooling System)

Applications

Blood bank refrigerators are specially designed to store blood bags and blood-derived products.

Features

Microprocessor control, ensure the inside temperature of 4°C±1°C accuracy is 0.1°C.

Suggested ambient temperature: +10~32°C.

Specially designed forced-air cooling system, ensures frost-free cabinet and good temperature uniformity.

Toughened glass door with heater to avoid condensation.

Wide available voltage range: 220V±10%.

Security

Safety door lock and controller password to prevent unauthorized access.

72h built-in backup battery to power the controller and save temp. data when power failure or system error.

Visual and audible alarm system.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

Special designed service-free drainage system, ensure no water in the cabinet.

Adjustable shelves and blood baskets for easy storage.

Casters with stoppers for easy moving and fixation.

Auto on/off LED light with manual switch on the control panel.

Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.

Specifications

Temperature Range: 4 ± 1 ℃

Ambient Temperature: 10~32℃

Capacity (L/Cu. Ft.): 368 / 13

Interior Dimensions (W×D×H) mm: 685×429×1380

Exterior Dimensions (W×D×H) mm: 785×598×1925

Weight: 128 kgs

Noise: 49 dB

Max Loading of 450/400/300/200ml Blood Bag: 300/360/420/540 Bags

Control and Power

Controller: Microprocessor

Display: Digital

Sensor: NTC

Voltage and Frequency: 220V±10%, 50/60Hz

Power: 355 W

Electric Current: 2.31 A

Power Consumption (kWh/24h): 4.5

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Power Failure Alarm: Yes, 72h

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Door Ajar Alarm: Yes

Battery Error Alarm: Yes

Refrigeration

Refrigeration Type: Forced-air Cooling

Defrost: Auto

Compressor (Brand/pcs): EMBRACO / 1

Refrigerant / Weight: R134a / 152g

Cabinet

Door (pcs): Self-closing Foamed Heating Glass Door / 1

Inner Door (pcs): PMMA / 6

Adjustable Shelf (pcs): 6

Basket (pcs): 30

Interior Cabinet Material: Stainless Steel

Exterior Cabinet Material: Coated Steel

Insulation Material: PURF (δ50mm)

Door Lock: Yes

LED Lamp: Yes

Test Hole (pcs): 1

Castors (pcs): 4

Leveling Feet (pcs): 2

Accessories

Remote Alarm Port: Yes

Temperature Printer: Yes

USB Data Download Port: Optional

RS485 Port: Optional

Temperature Datalogger: Optional

Temperature Chart Recorder: Optional

Shipping

Package: Plywood box with pallet

Shipping Weight: 135 kgs

Shipping Size (W×D×H): 860×660×1980

Shipping Volume: 1.12 CBM

• Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
