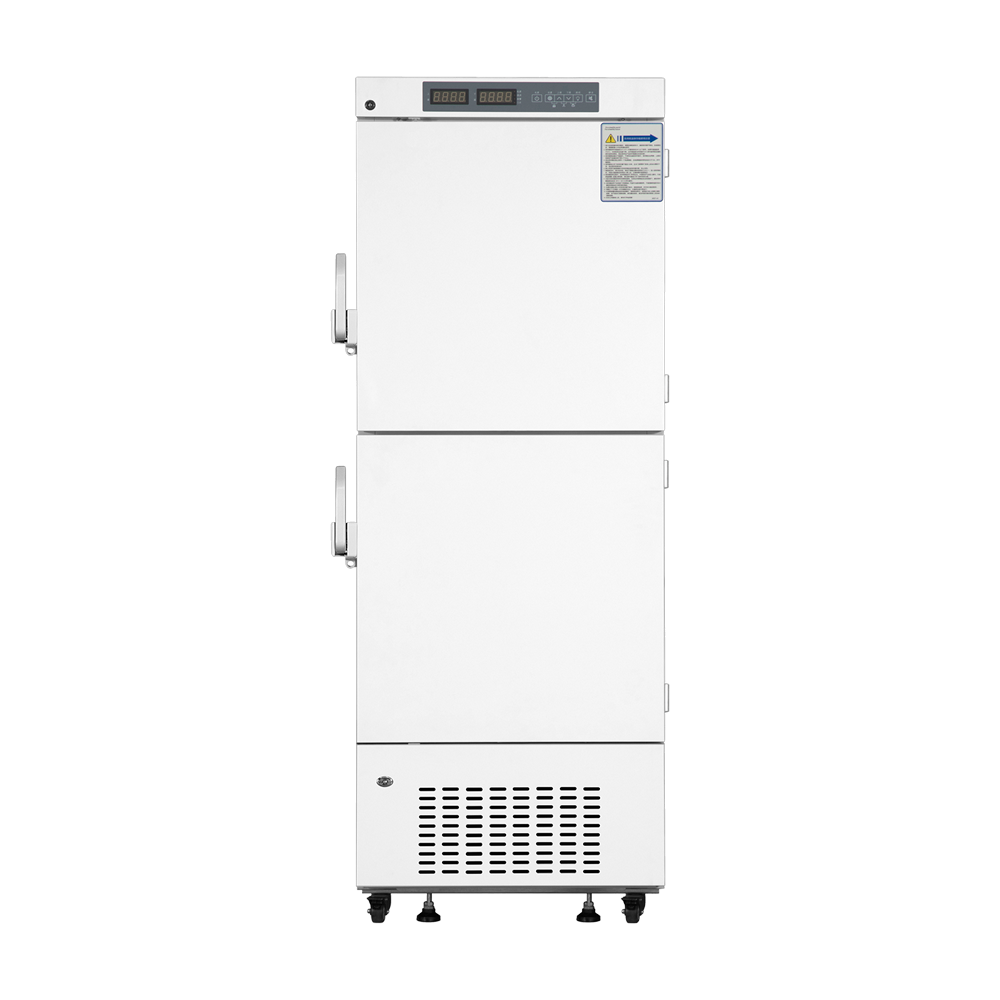

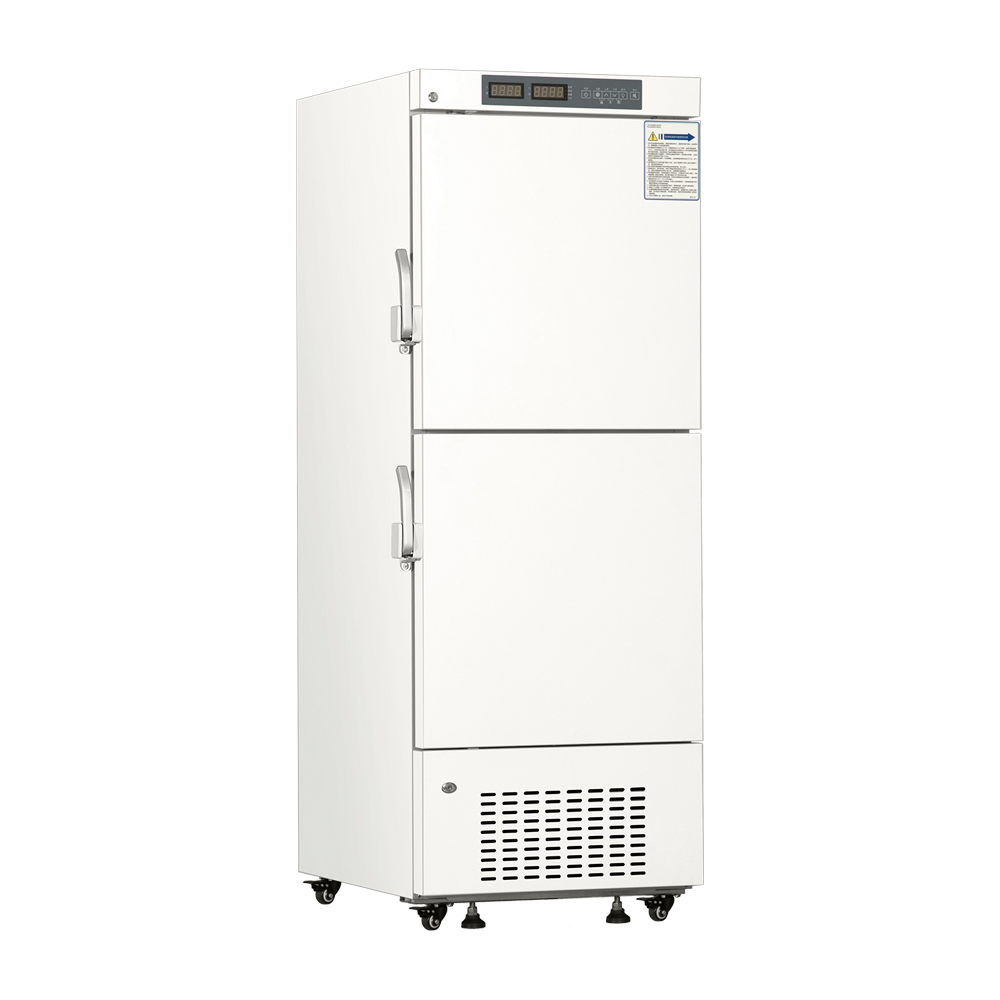

The -40 °C medical deep freezers are designed to store vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and medical fields.

Features

Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C

Double outside doors and two independent freezer chambers.

HC green refrigerant is energy-saving and environmentally friendly.

Wide available voltage range: 220V±10%.

Security

Safety door lock and controller password to prevent unauthorized access.

Built-in backup battery to display temperature and alarms when power failure or system error.

Visual and audible alarm system.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

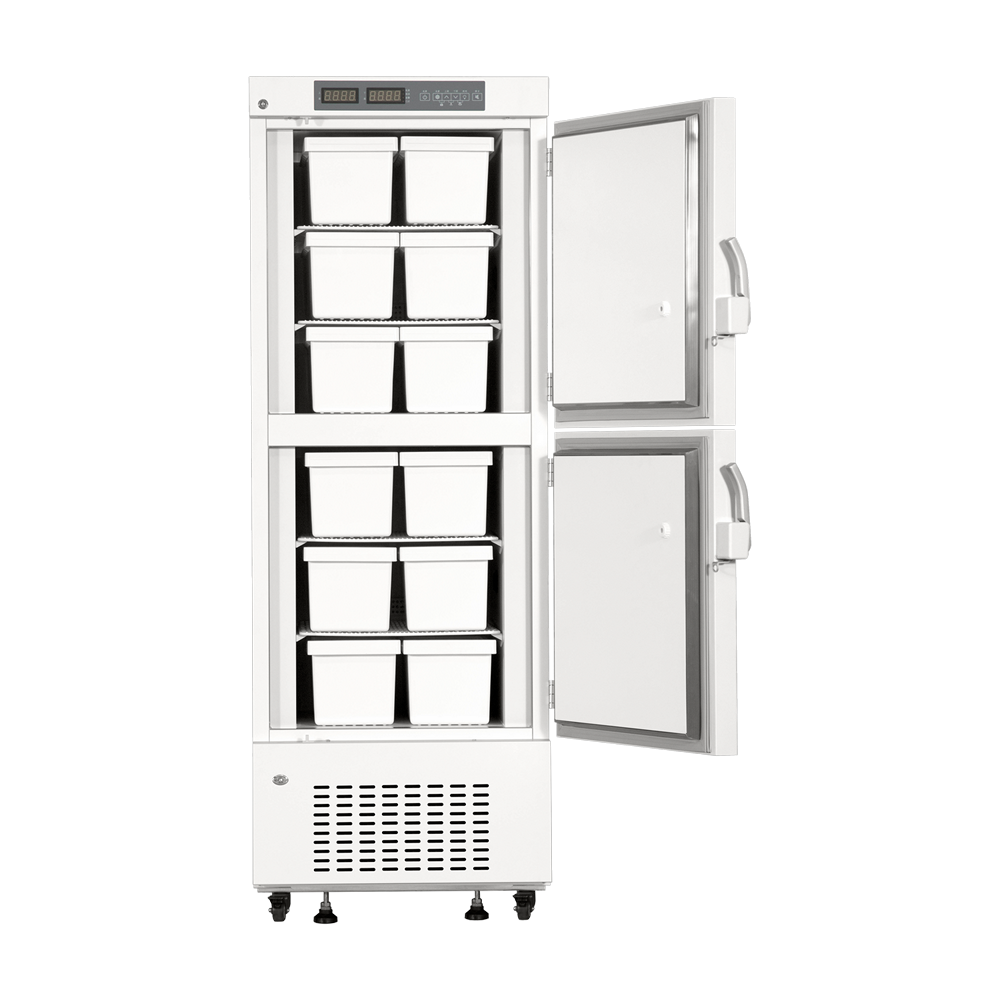

Drawers for easy storage.

Casters with stoppers for easy moving and fixation.

Specifications


Model NO.C260324059
Main Specifications
Temperature Range-20 ~ -40 ℃
Ambient Temperature10~32℃
Capacity (L/Cu. Ft.)179×2 / 6.32×2
Interior Dimensions (W×D×H) mm466×636×625×2
Exterior Dimensions (W×D×H) mm720×830×1870
Weight138 kgs
Noise49 dB
Control and Power
ControllerMicroprocessor
DisplayDigital
SensorNTC
Voltage and Frequency220V±10%, 50/60Hz
Power345 W
Electric Current3.2 A
Power Consumption (kWh/24h)6
Audible and Visual Alarms
High / Low Temp. AlarmYes
Power Failure AlarmYes, 8h
Sensor Error AlarmYes
Controller Error AlarmYes
Door Ajar AlarmYes
Abnormal Ambient Temp. AlarmYes
Refrigeration
Refrigeration TypeDirect Cooling
DefrostManual
Compressor (Brand/pcs)CUBIGEL / 2
Refrigerant / WeightR290 / 90g
Cabinet
Door (pcs)Foamed Solid Door / 2
Shelf (pcs)4
Drawer (pcs)12
Interior Cabinet MaterialCoated Steel
Exterior Cabinet MaterialCoated Steel
Insulation MaterialPURF (δ95mm)
Door LockYes
Test Hole (pcs)2
Castors (pcs)4
Leveling Feet (pcs)2
Accessories
USB Data Download PortYes
Remote Alarm PortYes
RS485 PortOptional
Temperature DataloggerOptional
Temperature PrinterOptional
Shipping
PackageCarton box with pallet
Shipping Weight178 kgs
Shipping Size (W×D×H)780×970×2000
Shipping Volume1.51 CBM
