Description

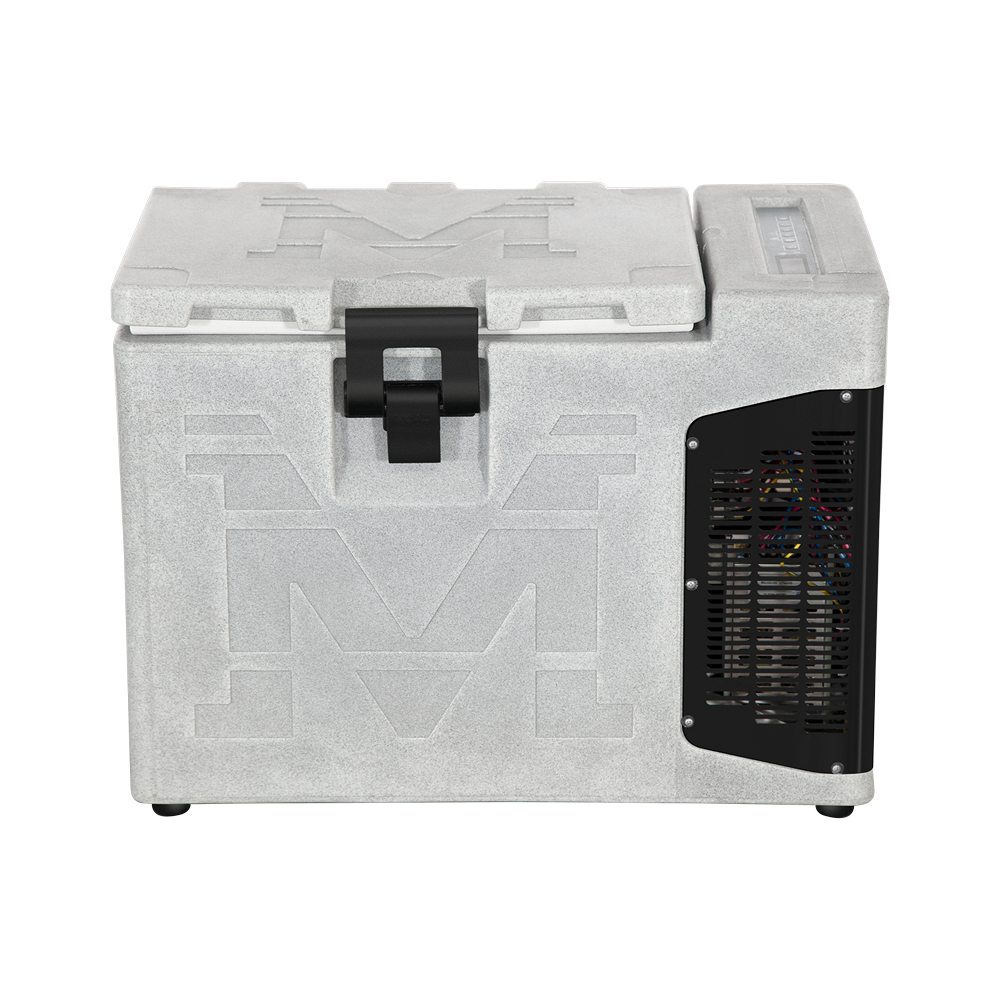

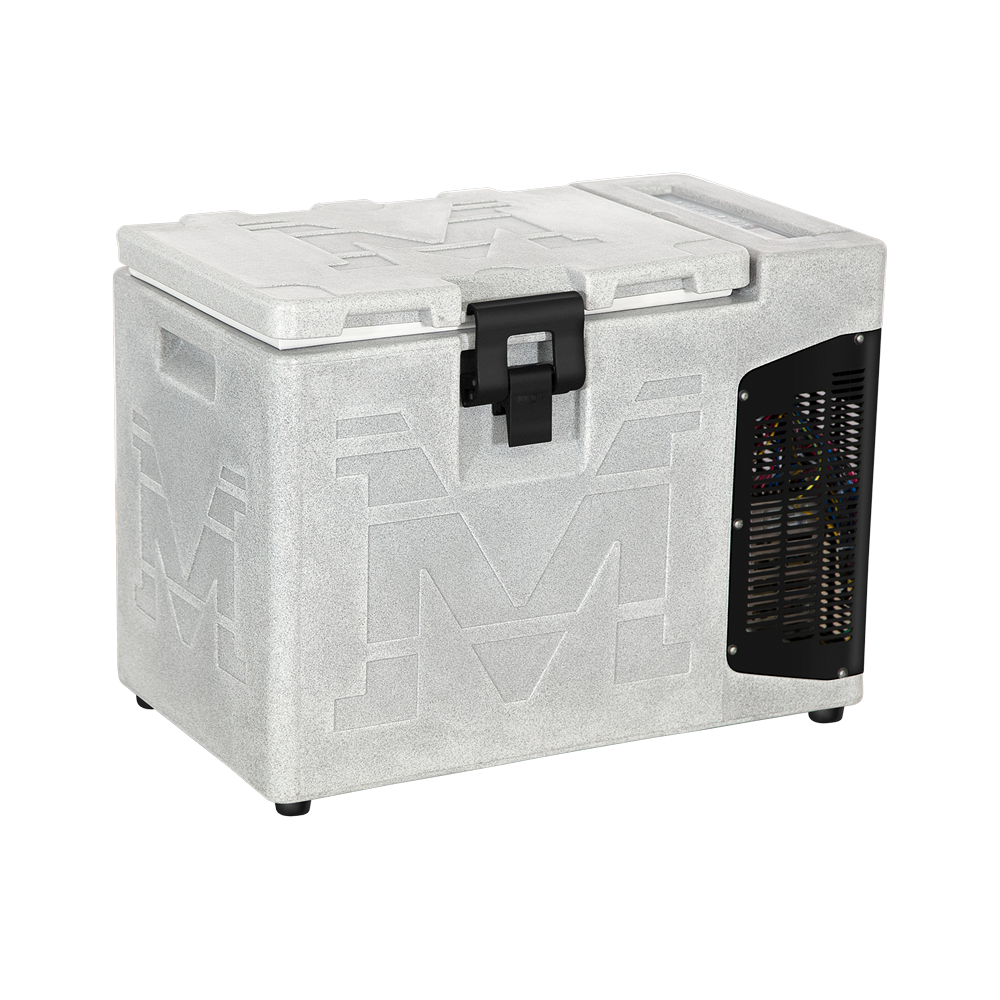

-25~+30°C Biomedical Portable Cooler

Applications

Biomedical portable coolers are specially designed to store and transport blood, serum, plasma, vaccines, reagents, and special medicines for epidemic prevention stations, blood banks, health centers, CDC, animal husbandry bureau, army, and pharmaceutical companies.

Features

Accurate microprocessor controller especially for biomedical use and resolution of 0.1°C.

Suggested ambient temperature: +10~32°C.

Integrated and strong PE body to resist impact and corrosion.

High-efficiency air cooling system to ensure good temperature uniformity.

Auto switch cooling and heating system to ensure the inside temperature in all climatic conditions.

Wide voltage design, able to be used when the voltage is between 220V±10% AC and 12V DC.

Security

Standard protective basket to prevent the samples from being frozen off by the evaporator.

Built-in backup battery to power the controller and save temp. data when power failure or system error.

Visual and audible alarm system.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: The cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors fail.

Humanized design

Different power ports for AC/DC connection to avoid wrong operation.

Stack-able, friendly for space-limited place.

Specifications

Temperature Range: -25 ~ +30 ℃

Ambient Temperature: 10~32℃

Capacity (L/Cu. Ft.): 30 / 1.06

Interior Dimensions (W×D×H) mm: 364×253×353

Exterior Dimensions (W×D×H) mm: 615×370×472

Weight: 22 kgs

Noise: 45 dB

Control and Power

Controller: Microprocessor

Display: Digital

Sensor: NTC

Voltage and Frequency: AC 220V±10%, 50/60Hz; DC 12V

Power: 80 W

Electric Current: DC 6.5 A

Power Consumption (kWh/24h): 1.2

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Power Failure Alarm: Yes, 8h

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Refrigeration

Refrigeration Type: Forced-air Cooling

Defrost: Manual

Compressor (Brand/pcs): Chinese Brand / 1

Refrigerant / Weight: R134a / 68g

Cabinet

Door (pcs): PE Foamed Solid Door / 1

Interior Cabinet Material: PE

Exterior Cabinet Material: PE

Insulation Material: PURF (δ55mm)

Accessories

Remote Alarm Port: Optional

Temperature Datalogger: Optional

Shipping

Package: Carton box

Shipping Weight: 26 kgs

Shipping Size (W×D×H): 670×440×540

Shipping Volume: 0.16 CBM

• Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
