Description

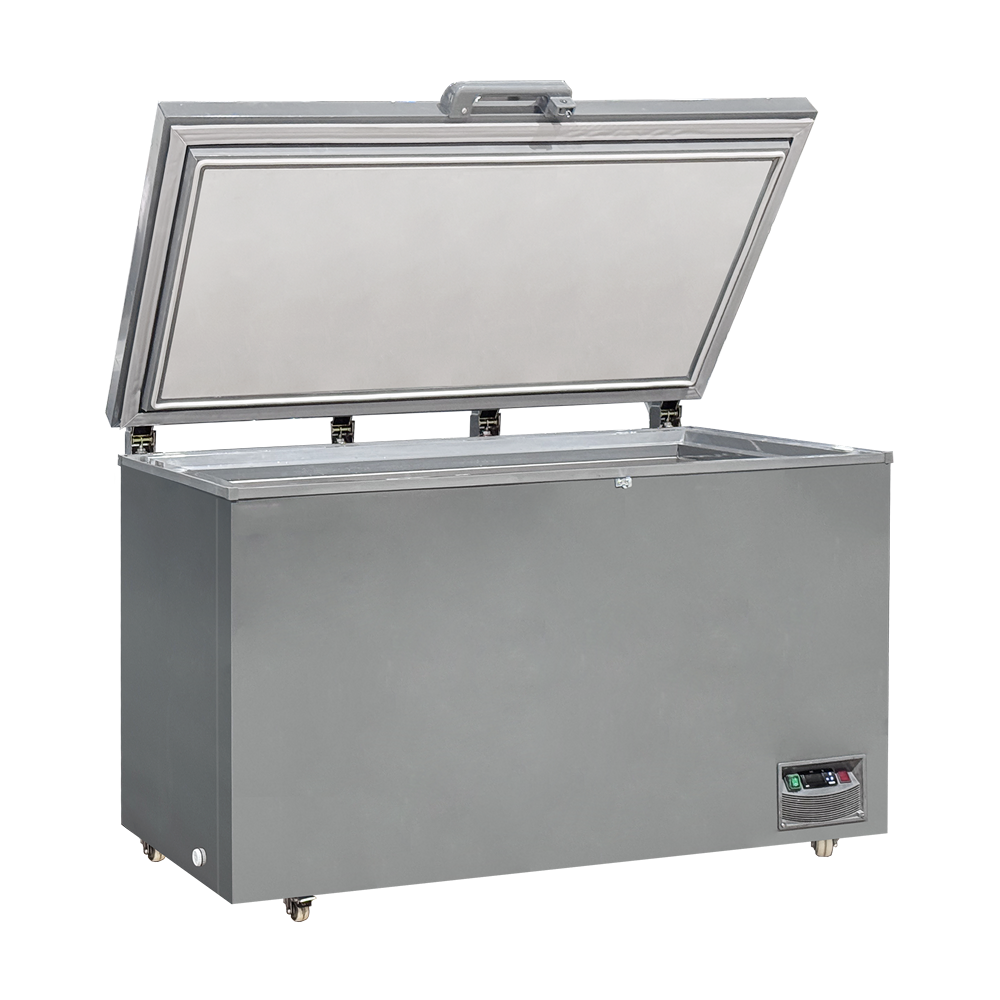

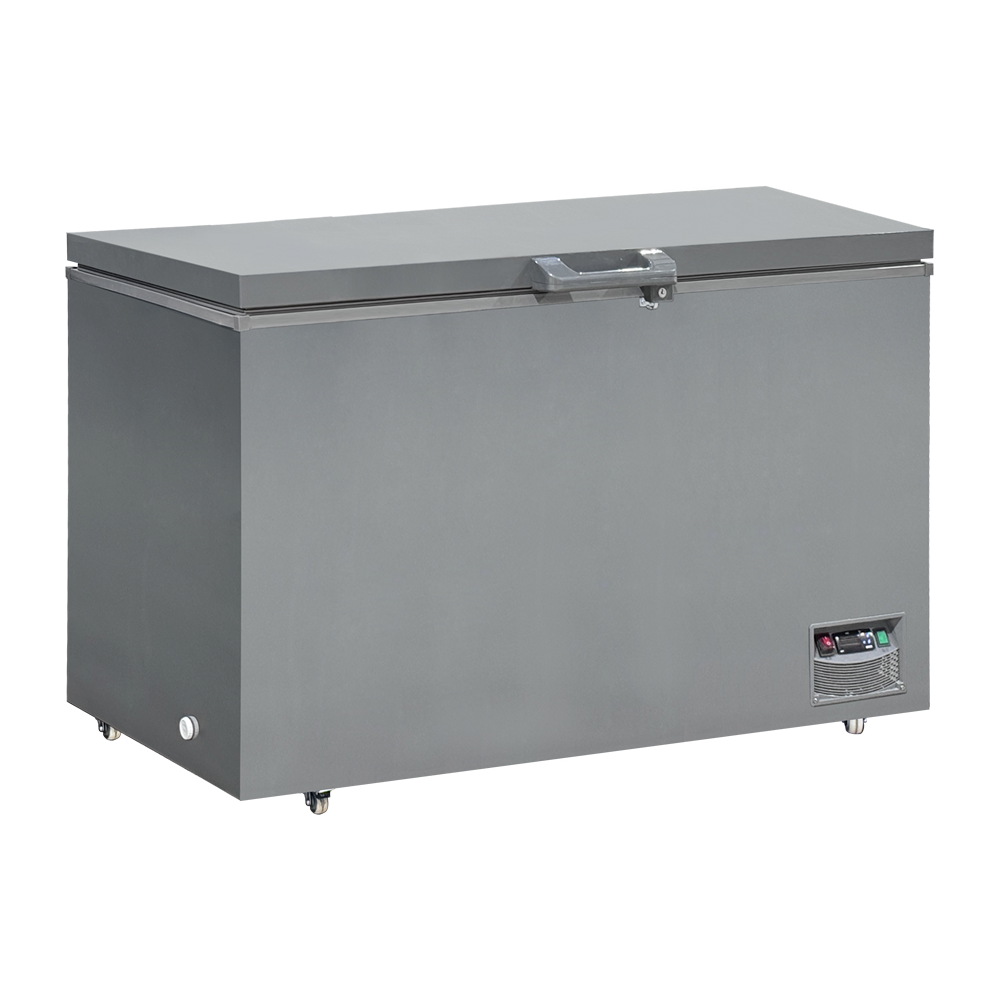

-60°C Ultra-low Freezer QuickCool Series

Applications

The -60°C ultra-low temperature freezers are designed for the long-term preservation of viruses, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.

Features

Accurate temperature controller, setting temperature range is -40 ~ -65°C.

Suggested ambient temperature: +10~32°C.

Stainless Steel inner chamber for friendly use and easy cleaning.

Brand compressor to ensure excellent stability of the cooling system.

Patented refrigeration technology, high-efficiency mixed gas for the cooling system.

Security

Safety door lock to prevent unauthorized access.

Visual and audible alarm system: High/low temperature, sensor failure, controller error.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

Casters with stoppers for easy moving and fixation.

Special-designed service-free drainage system.

Optional parts

Data logger, 110V version.

Specifications

Temperature Range: -40 ~-65°C

Ambient Temperature: 10~32°C

Capacity (L/Cu.Ft.): 305/10.77

Interior Dimensions (WxDxH) mm: 190x448x640

Exterior Dimensions (WxDxH) mm: 1394x752x900

Weight: 115kgs

Noise: 53dB

Control and Power

Display Sensor: Digital PTC

Voltage and Frequency: 220V±10%,50/60Hz

Power: 420W

Electric Current: 1.91A

Power Consumption (kWh/24h): 5.1

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Power Failure Alarm: Optional

Refrigeration

Refrigeration Type: Direct Cooling

Defrost: Manual

Compressor (Brand/pcs): SECOP/1

Refrigerant/ Weight: R4001 / 260g

Cabinet

Door (pcs): Foamed Solid Door/1

Interior Cabinet Material: 304 Stainless Steel

Exterior Cabinet Material: Coated Steel

Insulation Material: PURF (100mm)

Door Lock: Yes

Test Hole (pcs): 1

Castors (pcs): 4

Accessories

Remote Alarm Port: Optional

Temperature Datalogger: Optional

Protective Gloves: Optional

Basket (pcs): Optional

Shipping

Package: Carton box with pallet

Shipping Weight: 142kgs

Shipping Size (WxDxH): 1150x830x1080

Shipping Volume: 1.34 CBM

• Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
