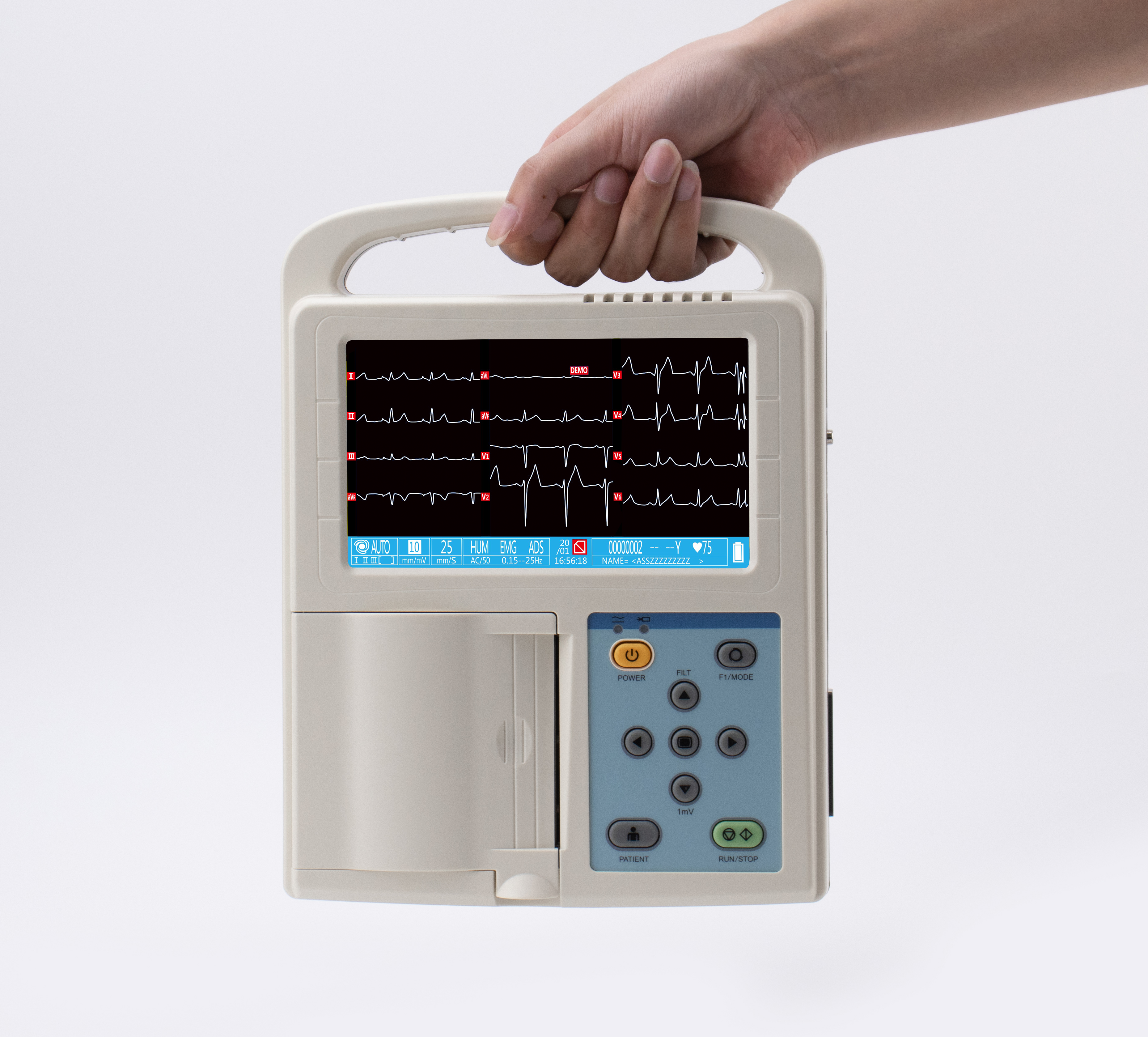

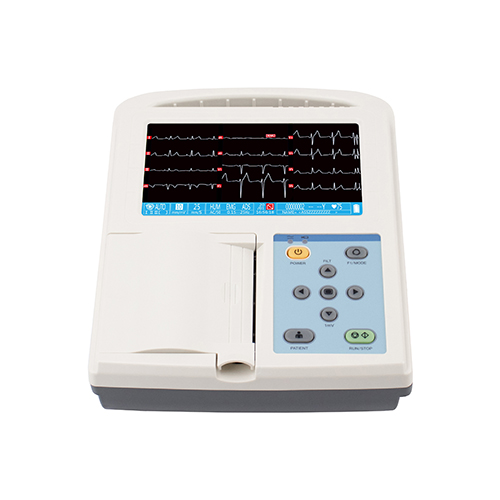

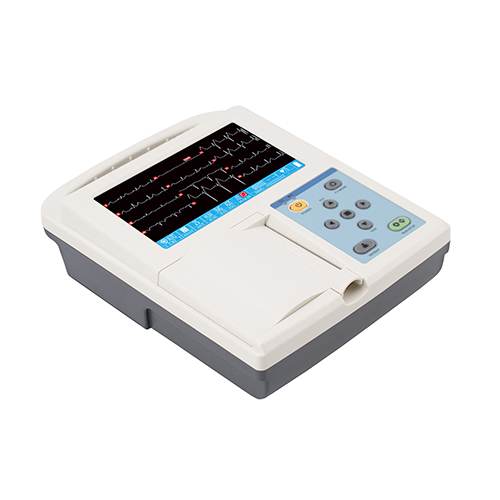

- Product name:3-channel ECG machine
- Product code:CCE-5503B
Packaging Specifications
- Outer Packaging Size:0.39 × 0.34 × 0.21 m
- Gross Weight:4 kg
- Net Weight:3.3 kg
- Volume:0.03
Description
BRIEF INTRODUCTION
The CCE-5503B, with small size, light weight and good configuration, is a very reliable 3 channel ECG Machine, helping clinicians make fast and accurate ECG diagnosis. It can be widely used in various medical institutions or occasions. The user-friendly design provides medical personnel with good using experience.
PRODUCT FEATURES
Sampling and Analysis
Acquisition and record standard 12 lead ECG simultaneously ( I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 ). Sampling rate 32000Hz.
High accuracy digital filter system. Automatic base line adjustment.
Accurate pulse pace identification function.Excellent auto-interpretation function can analyze over 200 types of abnormal ECG for reference. ( Analysis data base: Minnesota Code ).
ECG Record
High resolution thermal printing system.
Four working modes: Auto, Manual, R-R, Store, to meet different clinical requirements.
Recording format: 1chx12, 3chx4, 3chx4+R and 1 minute of rhythm lead record.
Printing paper size: 80mmx20m, roll paper.
Patient Information and File Management
Easy to input and edit patient information.
Can record detailed patient information, including name, ID, gender, age, height, weight, blood pressureand hospital name.
Can store, replay and edit 250 ECG cases with internal memory card.
Patient ECG report can be transferred to external USB disk ( optional ).

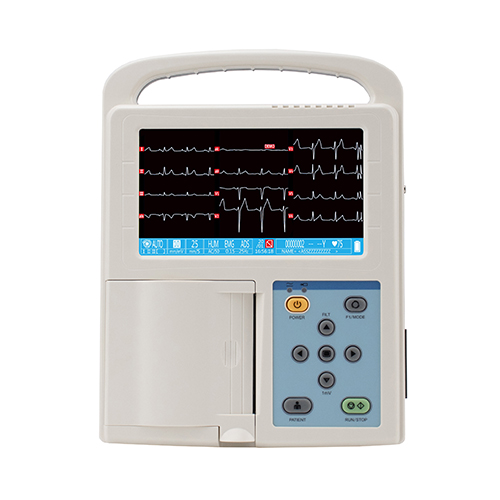

Display and Keypad
800x480 graphic, 7 inch color LCD to display detailed ECG waveform and working status ( lead waveform, patient information, sensitivity, paper speed, filter, date and time, HR., battery level, errors, and etc. )
One-key operation to support fast ECG examination.
Power Supply
Rechargeable Lithium battery, 2200mAh, 14.4V, support to continuously work about 9 hours.
Low-power consumption and fast charging design, about 2.5 hours to charge full.
Automatic voltage regulation design, adapt for power supply of 110-230V, 50/60Hz.

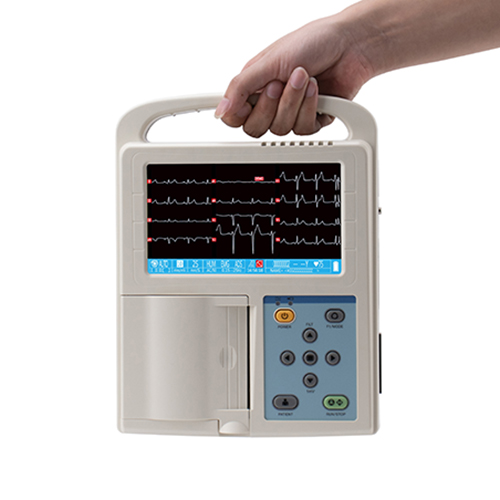

Physical Design
Compact and ergonomic design, easy to carry and operate.
Proper size and light weight, very convenient for mobile diagnostics.
Measurement: 214mmx276mmx63mm, 1.8kgs.
Interface and Communication

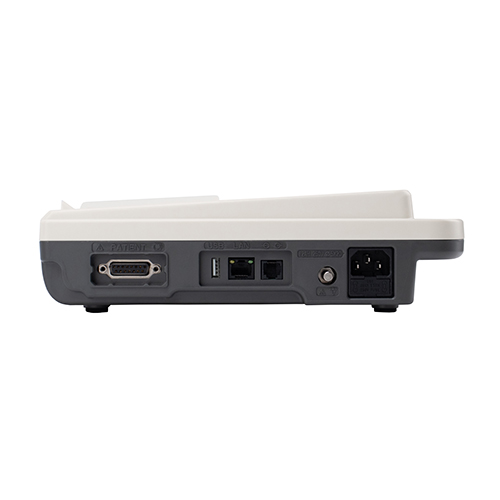

With UART and USB communication ports.
Support transferring ECG files to external USB disk for storage ( optional ).
Support connecting to computer to manage ECG data with PC ECG management software. ( optional ).
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS | |
|---|---|---|
| Main Unit | Lead Lead acquisition Working mode Filter CMRR Input circuit Input impedance Input dynamic range Electrode DC current Patient current leakage Calibrating voltage Lag Sensitivity Paper feeding speed Impulse & frequencyresponse Inter-channel interference System noise HR range | Standard 12 leads (I, II, III, aVR, aVL, aVF, V1 to V6) 12 leads synchronously acquisition, sampling rare 32000Hz MAN, AUTO, R-R, STOR AC Filter: 50Hz / 60Hz / Off EMG Filter: 25Hz / 45Hz / Off ≥120dB (with AC Filter) Floating; Protection against defibrillator effect ≥2.5MΩ (10Hz) ±5mVp-p; DC bias voltage ≥±620mV ≤0.1μA <10μA 1mV±5％ <0.5mm 2.5, 5, 10, 20, 40, mm/mV (±3%), Auto 6.25, 12.5, 25, 50mm/s(±3％) Method A and Method D system test method <2% <30μ Vp-p 30-300 BPM (±1BPM) |
| Packing Pulse Identification | Amplitude Width Sampling rate | 2mV-250mV 0.1ms-2.0ms 4000Hz/Channel |
| Recorder | Recording way Recording format Paper specification | Thermal dot matrix recording 1chx12+R, 3chx4, 3chx4+R, 1 minute rhythm lead record 80mmx20m, roll paper |
| Others | Screen Patient cases storage Communication interface AC power supply DC power supply Measurement and weight | 800x480 graphic 7 inch color LCD 250 patient cases ( Internal SD card is optional ) UAB, UART Rated voltage/capacity: 14.4V / 2200mAh, Lithium battery Rated charging current: 1300mA (constant voltage and current) Rated charging cycle number: not less than 500 times 110-230V (±10%), 50/60Hz (±1Hz), power 60VA 214mm*276mm*63mm, 1.8kgs |
3 CHANNEL ECG REPORT SAMPLE
OPTIONAL FUNCTIONS
● Use the PC ECG Management Software to manage ECG date on computer ( acquisition of real-time ECG, edit, import, save, print and transfer ECG report, VCG examination and etc. ).
● Transfer ECG data to USB disk for storage, then upload data to computer for management.
● Connect to a bar-code scanner to scan patient ID.
ECG ACCESSORIES AND PACKING LIST
| * ECG Machine * Patient Cable * Limb Electrodes (4pcs./set) * Chest Electrodes (6pcs./set) * Power Cable * Grounding Cable * Paper Axis * Thermal Paper (80mmx20m) * Fuse * User Manual | 1 unit 1 pc. 1 set 1 set 1 set 1 pc. 1 pc. 1 pc. 2 pcs. 1 pc. |
PACKING LIST
* ECG Machine ---- 1 Unit
* Patient Cable ---- 1 pc.
* Limb Electrodes (4pcs./set) ---- 1 set
* Chest Electrodes (6pcs./set) ---- 1 set
* Power Cable ---- 1 pc.
* Grounding Cable ---- 1 pc.
* Paper Axis ---- 1 pc.
* Thermal Paper (80mmx20m) ---- 1 pc.
* Fuse ---- 1 pc.
* User Manual ---- 1 pc.
