Product info

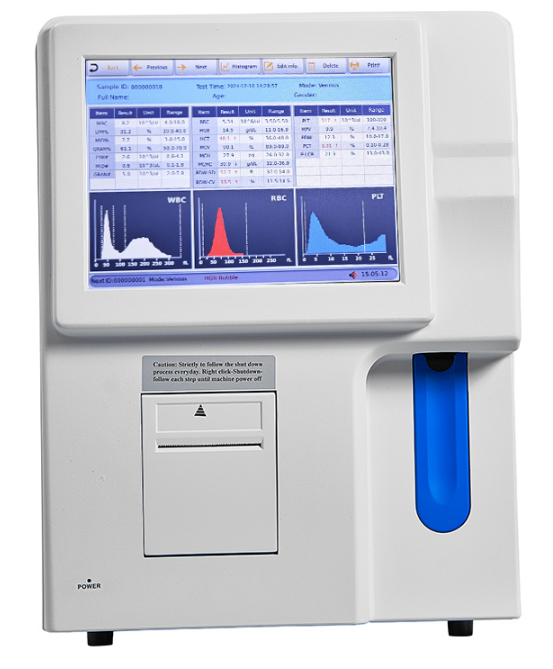

- Product name:3-Diff Automated Hematology Analyzer
- Product code:CCL-9000
Packaging Specifications
- Outer Packaging Size:0.54 × 0.48 × 0.62 m
- Gross Weight:24.5 kg
- Net Weight:20 kg
- Volume:0.16
Core Parameters
- Throughput: More than 70 samples per hour, 24 hours work with auto standby
- Parameter: 3-part differentiation of WBC; 24 parameters include 3 histograms (WBC, RBC, PLT) WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD,PLT, MPV, PDW, PCT, P-LCR,P-LCC;
- Sample volume: venous 9.6uL, pre-diluted 20uL, capillary 9.6uL
- Display: 8.4 inches color touch screen
- Dimension: 33 CM (L) * 38 CM (W) * 43 CM (H)
- Weight: 20 KG
- Power supply: AC100~240V 50/60Hz
- Storage: up to 100,000 sample results+3histograms Operation Language: English, French, Spanish, Portuguese, Russian, etc.
- Methodology: Electrical resistance for counting and SFT method of hemoglobin
- Printer: Thermal recorder, 57 mm width paper, various printout formats. Graphic thermal printer with various printing format, optional external printer
- Temperature: 15°C- 35°C, humidity <10- 90%
- Input / output: 4xUSB, 1x*RS232,1xethernet,1xVGA(for external monitor)
Description
CCL-9000 Full Auto Hematology Analyzer
Core Overview
CCL-9000 is a CE and ISO certified fully automatic hematology analyzer launched by China Care Medical, featuring 3-part WBC differentiation, high throughput, and full automation of core testing processes. It supports both open and optional closed reagent systems, is compatible with LIS system connection, and has a humanized multi-language operation interface, suitable for long-term continuous work in various medical institutions. The device integrates automatic sample processing, cleaning and clog clearing functions, with high detection precision and complete data storage and output capabilities.
Core Product Features
- High-efficiency Detection: 3-part WBC differentiation, 24 detection parameters plus 3 histograms (WBC/RBC/PLT); throughput up to 70 samples per hour, supports 24-hour continuous work with auto standby mode.
- Full Automation & Low Maintenance: Automatic diluting, mixing, rinsing and clog clearing; automatic inside and outside cleaning of sample probe, reducing manual operation and maintenance workload.
- Flexible Operation & Multi-language Support: 8.4-inch color touch screen operation, compatible with mouse and keyboard connection; supports English, French, Spanish, Portuguese, Russian and other languages, adapting to international use.
- Diverse Reagent & Output Options: Open reagent system as standard, closed reagent system optional; built-in 57mm width thermal-sensitive printer with multiple print formats, external printer (e.g., HP1020) optional, and supports external barcode scanner.
- Powerful Data Management: Up to 100,000 sample results + 3 histograms storage; supports LIS system linkage, with rich I/O interfaces for easy data transmission and external monitor connection.
- Precise Calibration & QC: Supports manual and automatic calibration; complete QC control with reference values of X-B, L-J, X, SD, CV% for reliable detection results.
Key Technical Specifications
- Detection Methodology: Electrical resistance method for cell counting, SFT method for hemoglobin detection
- Detection Parameters: 24 parameters (WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC, etc.) + 3 histograms (WBC/RBC/PLT)
- Sample Requirements: Venous blood 9.6μL, pre-diluted blood 20μL, capillary blood 9.6μL; applicable for male, female, children and neonate samples
- Precision (CV%): WBC ≤2%, RBC ≤1.5%, MCV ≤0.5%, PLT ≤4.0%
- Linear Range: RBC (0.0~9.99)×10¹²/L, HGB 0.0~300.0g/L, MCV 40~150fL
- Physical & Power Parameters: Dimension 33cm(L)×38cm(W)×43cm(H); net weight 20KG; power supply AC100-240V, 50/60Hz
- Working Environment: Temperature 15℃-35℃, humidity ≤90%; atmospheric pressure 70KPa~106KPa
- Interfaces: 4×USB, 1×RS232, 1×Ethernet, 1×VGA (for external monitor)
