Product info

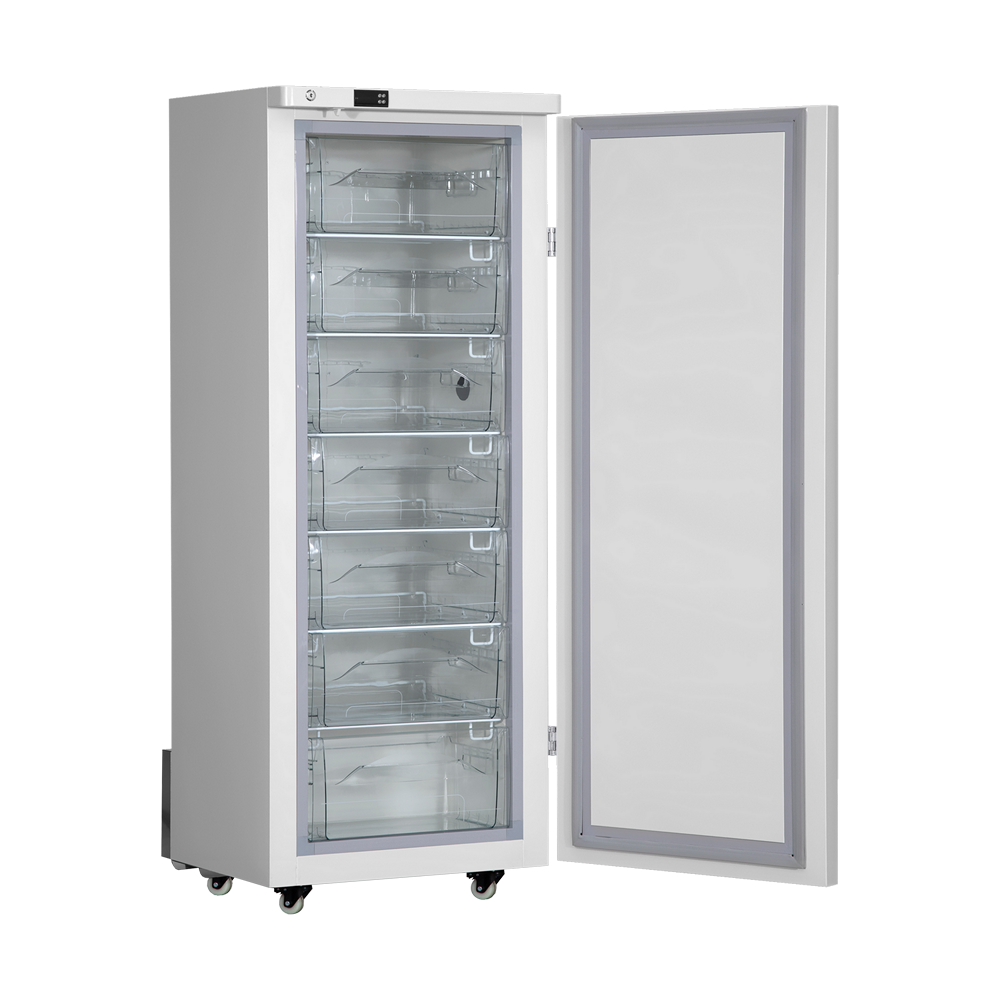

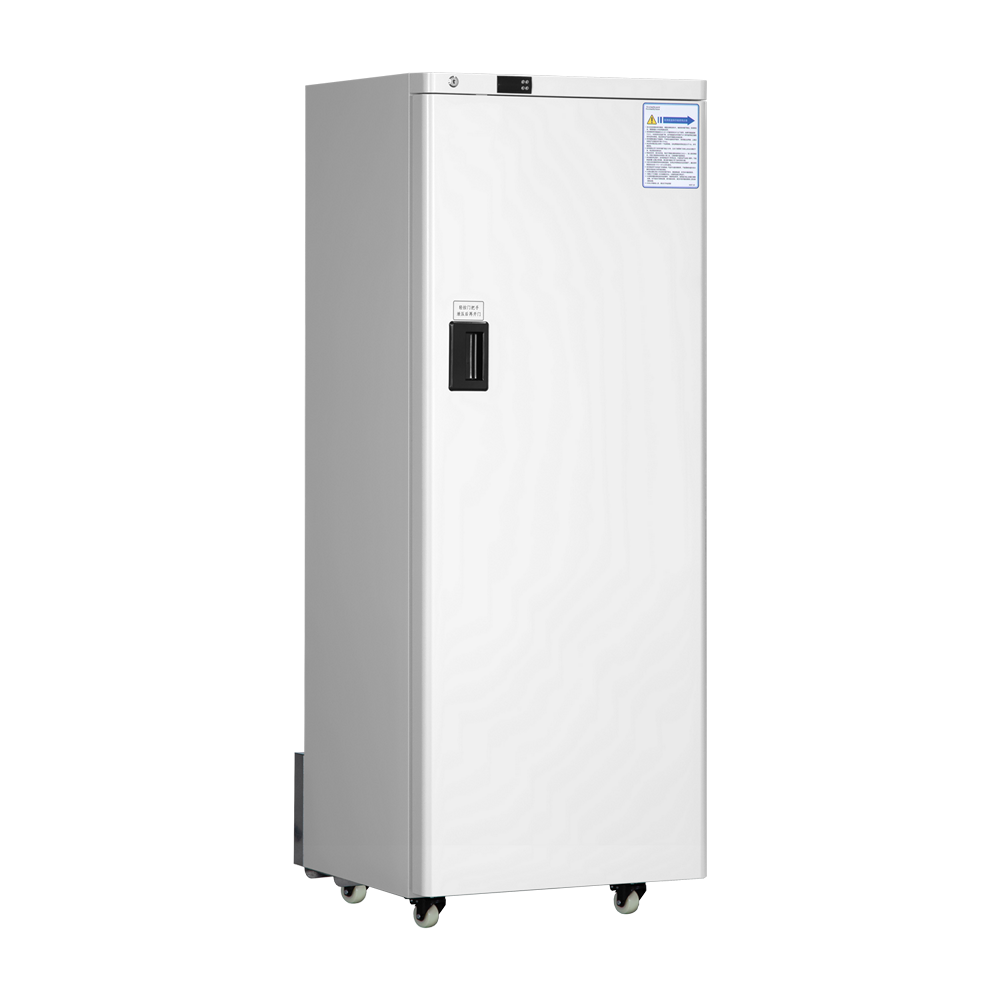

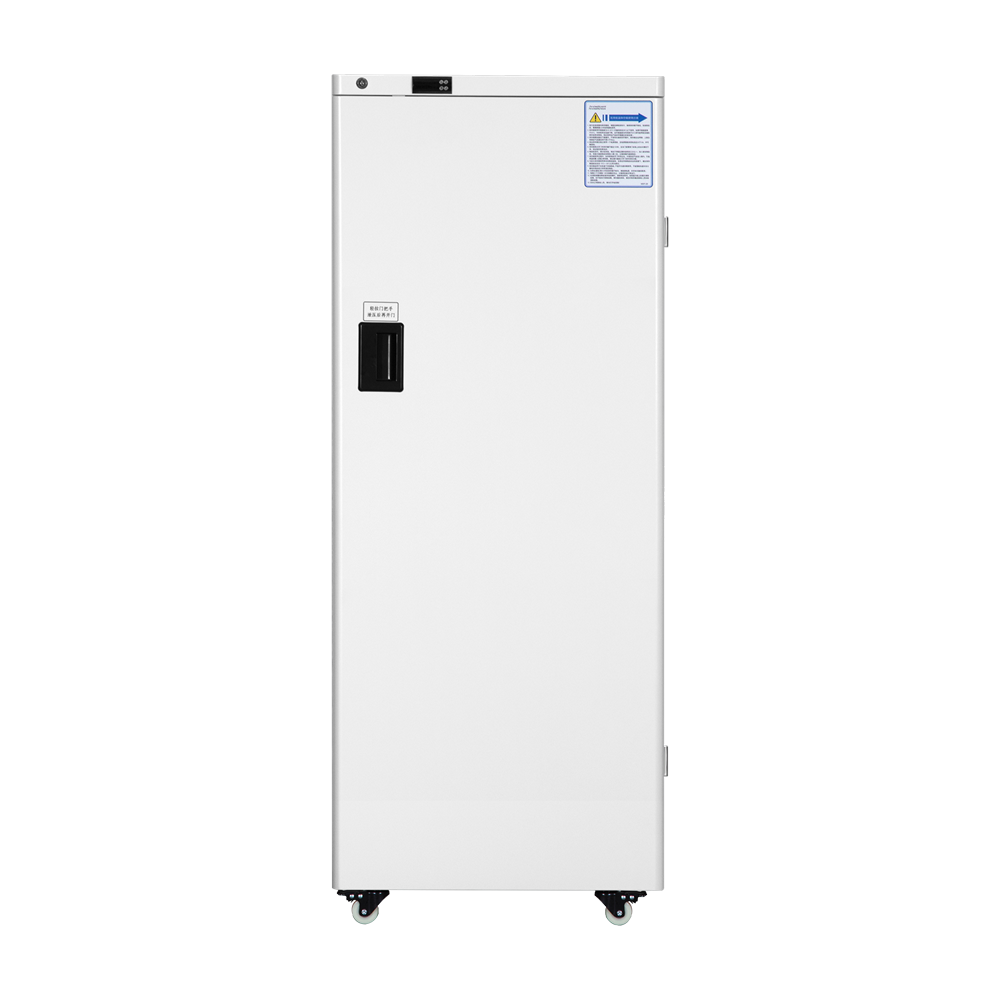

- Product name:278L -40°C Low Temperature Storage Box Refrigerator
- Product code:C260324055
Packaging Specifications
- Outer Packaging Size:0.72 × 0.69 × 1.82 m
- Gross Weight:125 kg
- Net Weight:115 kg
- Volume:0.9
Description
Applications
The -40 °C medical deep freezers are designed to store vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and medical fields.
Features
■ Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C
■ HC green refrigerant is energy-saving and environmentally friendly.
■ Wide available voltage range: 220V±10%.
Security
■ Safety door lock and controller password to prevent unauthorized access.
■ Visual and audible alarm system.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.
Humanized design
■ Drawers for easy storage.
■ Casters with stoppers for easy moving and fixation.
Specifications
| Model NO. | C260324055 |
| Main Specifications | |
| Temperature Range | -20 ~ -40 ℃ |
| Ambient Temperature | 10~32℃ |
| Capacity (L/Cu. Ft.) | 278 / 9.82 |
| Interior Dimensions (W×D×H) mm | 480×415×1460 |
| Exterior Dimensions (W×D×H) mm | 659×600×1694 |
| Weight | 110 kgs |
| Noise | 50 dB |
| Control and Power | |
| Controller | Microprocessor |
| Display | Digital |
| Sensor | NTC |
| Voltage and Frequency | 220V±10%, 50/60Hz |
| Power | 280 W |
| Electric Current | 1.48 A |
| Power Consumption (kWh/24h) | 6.8 |
| Audible and Visual Alarms | |
| High / Low Temp. Alarm | Yes |
| Sensor Error Alarm | Yes |
| Controller Error Alarm | Yes |
| Door Ajar Alarm | Yes |
| Refrigeration | |
| Refrigeration Type | Direct Cooling |
| Defrost | Manual |
| Compressor (Brand/pcs) | CUBIGEL / 1 |
| Refrigerant / Weight | R290 / 49g |
| Cabinet | |
| Door (pcs) | Foamed Solid Door / 1 |
| Drawer (pcs) | 7 |
| Interior Cabinet Material | Coated Steel |
| Exterior Cabinet Material | Coated Steel |
| Insulation Material | PURF (δ85.5mm) |
| Door Lock | Yes |
| Test Hole (pcs) | 1 |
| Castors (pcs) | 4 |
| Accessories | |
| Temperature Datalogger | Optional |
| Shipping | |
| Package | Carton box with pallet |
| Shipping Weight | 125 kgs |
| Shipping Size (W×D×H) | 720×690×1820 |
| Shipping Volume | 0.9 CBM |
