Product info

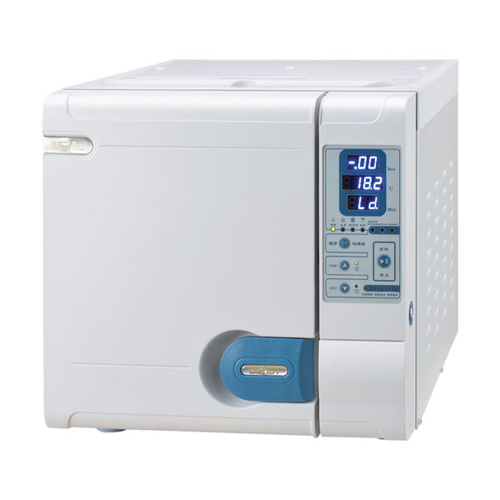

- Product name:18L 23L ClassB Dental Steam Autoclave
- Product code:CCDYA18-CCDYA23
Packaging Specifications
- Outer Packaging Size:0.67 × 0.57 × 0.53 m
- Gross Weight:48 kg
- Net Weight:45 kg
- Volume:0.2
Description
Class B/S Pre-vacuum Dental Autoclave
Core Overview
It is a Class B/S pre-vacuum autoclave compliant with EN 13060-2014 standard, designed for high-efficiency all-wave sterilization of packed/unpacked, solid, hollow A/B and hollow B pipeline instruments. It features a 480*272 color touch screen, imported core sensors, and intelligent functions, ensuring precise control and reliable performance for dental clinics and medical institutions.
Core Technical Specifications
| Item | 18L | 23L |
|---|---|---|
| Voltage | 230V/50/60Hz | 230V/50/60Hz |
| Power | 1600VA | 1600VA |
| Volume | 18L | 23L |
| Chamber Size | Φ250×355mm | Φ250×450mm |
| Product Size | 570×460×455mm | 570×460×455mm |
| Pack Size | 635×535×535mm | 635×535×535mm |
| G.W./N.W. | 61.5/52.5kg | 63.0/54.0kg |
| Required Space | 60cm | 60cm |
Key Performance & Sterilization Features
- Sterilization Class: European Class B (3 pre-vacuum cycles) & Class S (1 pre-vacuum cycle)
- Vacuum Index: -85KPa
- Residual Humidity: <0.2%
- Applicable Instruments: Packed/unpacked, solid, Hollow A, Hollow B, Hollow B pipeline instruments
- Sterilization Mode: High-efficiency all-wave sterilization
Core Component & Intelligent Functions
Standard Features
- Display: 480*272 color touch screen
- Sensors: MXP 5700 pressure sensor; Heraeus dual temperature sensor (resolution: 1kPa / 0.1°C)
- Intelligent Operations: Delay-start, sleep-mode, pipeline cleaning, air pressure control lock
- Built-in Printer: Standard for data recording and traceability
- Multi-language Support: Adapts to global clinical use
Optional Functions
- Water monitoring system
- Mobile APP remote control/monitoring
- External printer
Core Product Advantages
- Compliant & Reliable Sterilization: Meets EN 13060-2014 standard, with Class B/S dual pre-vacuum modes, ensuring thorough sterilization of complex hollow instruments and low residual humidity.
- Precise Control System: Imported high-precision sensors (Heraeus dual temperature, MXP 5700 pressure) deliver 0.1°C temperature and 1kPa pressure resolution, guaranteeing stable and consistent sterilization parameters.
- Intelligent & User-friendly: 480*272 color touch screen with intuitive operation; delay-start, sleep-mode and pipeline cleaning functions optimize workflow and maintenance; multi-language support removes language barriers.
- Compact & Space-efficient: Two capacity options (18L/23L) share the same external dimensions, simplifying clinic layout and space planning; 60cm required space minimizes footprint.
- Data Traceability: Built-in printer (with optional external printer) enables real-time recording of sterilization data, meeting medical quality management and regulatory traceability requirements.
- Flexible Expansion: Optional water monitoring and mobile APP functions enhance operational convenience and remote management capabilities.
Application Scenarios
Ideal for dental clinics, medical laboratories, and small medical institutions requiring high-standard pre-vacuum sterilization of packed/unpacked instruments, hollow tools, and pipeline devices, ensuring safe and efficient infection control.
