Product info

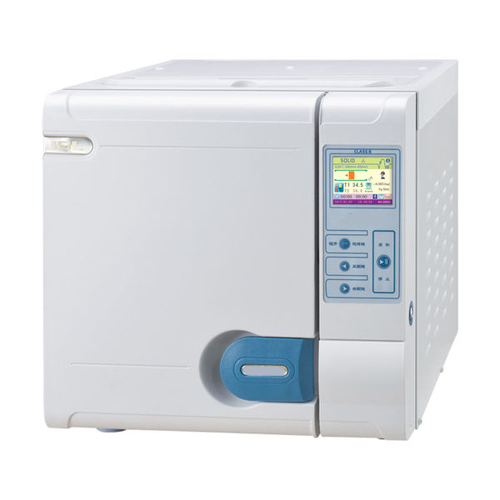

- Product name:18L 23L ClassB Dental Steam Autoclave
- Product code:CCDQA18-CCDQA23
Packaging Specifications
- Outer Packaging Size:0.57 × 0.53 × 0.56 m
- Gross Weight:67 kg
- Net Weight:65 kg
- Volume:0.17
Description
Class B/S Pre-vacuum Dental Autoclave
Core Overview
It is a Class B/S pre-vacuum autoclave compliant with EN 13060-2014 standard, designed for high-efficiency all-wave sterilization of packed/unpacked, solid, hollow A/B and hollow B pipeline instruments. It features imported core components, rapid steam generation, and precise control, ensuring reliable infection control for dental clinics and medical institutions.
Core Technical Specifications
| Item | 18L | 23L |
|---|---|---|
| Voltage | 230V/50/60Hz | 230V/50/60Hz |
| Power | 1600VA | 1600VA |
| Volume | 18L | 23L |
| Chamber Size | Φ250×355mm | Φ250×450mm |
| Product Size | 575×460×425mm | 575×460×425mm |
| Pack Size | 635×535×490mm | 635×535×490mm |
| G.W./N.W. | 54.5/45.5kg | 56.0/47.0kg |
| Required Space | 60cm | 60cm |
Key Performance & Sterilization Features
- Sterilization Class: European Class B (3 pre-vacuum cycles) & Class S (1 pre-vacuum cycle)
- Vacuum Index: -85KPa
- Residual Humidity: <0.2%
- Applicable Instruments: Packed/unpacked, solid, Hollow A, Hollow B, Hollow B pipeline instruments
- Sterilization Mode: High-efficiency all-wave sterilization
Core Component & Intelligent Functions
Standard Features
- Display: 128*64 blue LCD screen
- Sensors: MXP 5700 pressure sensor; Heraeus temperature sensor (resolution: 0.01bar / 0.1°C)
- Core Components: Ulka water pump; new rapid steam generator
- Test Functions: Helix test & BD test (for sterilization performance verification)
- Safety & Control: Air pressure control lock; user-defined functions; multi-language support
Optional Functions
- External printer or built-in printer (for data traceability)
Core Product Advantages
- Compliant & Thorough Sterilization: Meets EN 13060-2014 standard, with Class B/S dual pre-vacuum modes, ensuring complete sterilization of complex hollow instruments and ultra-low residual humidity.
- Rapid & Efficient Sterilization: New rapid steam generator shortens cycle time, improving clinical workflow efficiency.
- Precise Control System: Imported high-precision sensors (Heraeus temperature, MXP 5700 pressure) deliver 0.1°C temperature and 0.01bar pressure resolution, guaranteeing stable sterilization parameters.
- Reliable Core Components: Ulka water pump ensures stable water supply; air pressure control lock enhances operational safety.
- Compact & Space-efficient: Two capacity options (18L/23L) share the same external dimensions, simplifying clinic layout; 60cm required space minimizes footprint.
- Quality Verification & Traceability: Built-in Helix and BD tests verify sterilization performance; optional printer enables data recording for regulatory compliance.
- Flexible Customization: User-defined functions and multi-language support adapt to diverse clinical needs and global markets.
Application Scenarios
Ideal for dental clinics, medical laboratories, and small medical institutions requiring high-standard pre-vacuum sterilization of packed/unpacked instruments, hollow tools, and pipeline devices, ensuring safe and efficient infection control.
