Product info
- Product name:980nm/15W Dental Diode Laser
- Product code:CCD-10
Packaging Specifications
- Outer Packaging Size:0.52 × 0.43 × 0.15 m
- Gross Weight:12 kg
- Net Weight:0 kg
- Volume:0.03
Description

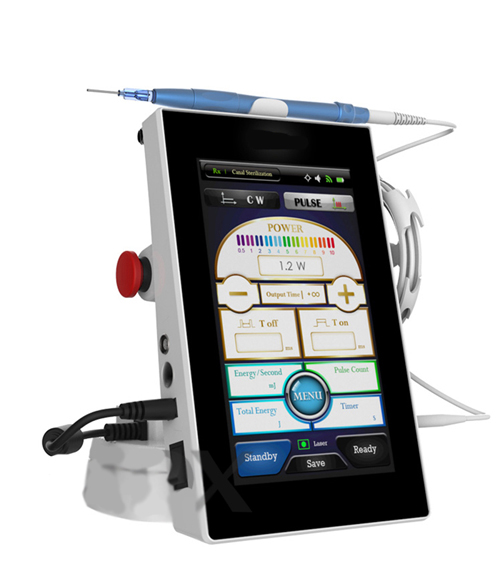

CCD-10 Dental Diode Laser System
Core Overview
CCD-10 is a reliable, portable and cost-effective medical diode laser system mainly for dental use, breaking the built-in battery design with external power supply (power bank + battery pack) to reduce after-sales costs and troubles. It supports superpulsed operation up to 50,000Hz, is equipped with multi-type delivery fibers and optional foot switch modes, and has humanized designs such as music playback and dual laser emission activation modes. With compact size, light weight and multi-functional adaptability, it is not only suitable for dental clinical scenarios, but also applicable to ENT, general surgery, gynecology and other multiple medical fields, meeting diverse clinical laser treatment needs.
Core Technical Specifications
| Category | Parameter Details |
|---|---|
| Laser Type | Diode Laser |
| Model Options | Simple 15A (980nm wavelength), Simple 15B (1470nm wavelength) |
| Max CW Power | 15W (both models) |
| Aiming Beam | 635nm@3mW, adjustable density |
| Delivery System | 400μm, 600μm, 800μm fibers (multiple specifications optional) |
| Operation Mode | CW (continuous)/Pulsed dual mode |
| Pulse Performance | Pulse duration: 10μs-1s; Superpulsed activation frequency: Up to 50,000Hz (standard pulse waveform) |
| Laser Emission Activation | "Hold" & "No-hold" two optional modes |
| Control & Display | 8-inch full touch screen; AC 110V-220V, 50Hz/60Hz voltage display |
| Foot Switch | Wireless foot switch (wired foot switch optional) |
| Physical Parameters | Dimensions (LWH): 280mm130mm190mm; Net weight: 2.3kgs |
| Power Supply | External power supply (power bank + battery pack, built-in battery abandoned) |
| Humanized Function | Music playback function (available during work) |
Core Product Advantages
- Cost-effective & Low After-sales Burden: Abandons the outdated built-in battery design, adopts external power supply of power bank + battery pack, avoiding high cost and time-consuming built-in battery after-sales maintenance, reducing the operation and maintenance cost of medical institutions.
- High-performance Laser Output: Supports CW/pulsed dual operation modes, superpulsed frequency up to 50,000Hz with standard pulse waveform; 980nm/1470nm dual wavelength options (15W max power for both) and adjustable density aiming beam (635nm@3mW), meeting precise laser treatment needs of different clinical scenarios.
- Flexible & Convenient Operation: Equipped with 8-inch full touch screen for intuitive parameter adjustment; "Hold" & "No-hold" dual laser emission modes, wireless foot switch (wired optional) for free operation; multiple delivery fiber specifications (400/600/800μm) to match different handpieces/tips, adapting to various treatment operations.
- Ultra-portable & Space-saving: Compact size (280130190mm) and light weight (2.3kgs), easy to carry and move in clinics/operating rooms; wide voltage adaptation (AC 110V-220V, 50/60Hz), suitable for different power grid conditions in various regions.
- Humanized Design & Multi-scenario Adaptability: Built-in music playback function, improving the working experience of medical staff; not only for dental treatment, but also applicable to ENT, general surgery, gynecology, liposuction, physiotherapy, PLDD, proctology, spider/varicose veins treatment, with strong multi-field versatility.
Core Clinical Applications
Primary Application: Dental Clinical Treatment
Extended Applications:
ENT, General Surgery, Gynecology, Liposuction, Physiotherapy, PLDD (Percutaneous Laser Disc Decompression), Proctology, Spider Veins Treatment, Varicose Veins Treatment
The system is equipped with various matching handpieces and tips for different clinical fields, realizing one machine for multiple uses and enriching the clinical treatment means of medical institutions.
