Description

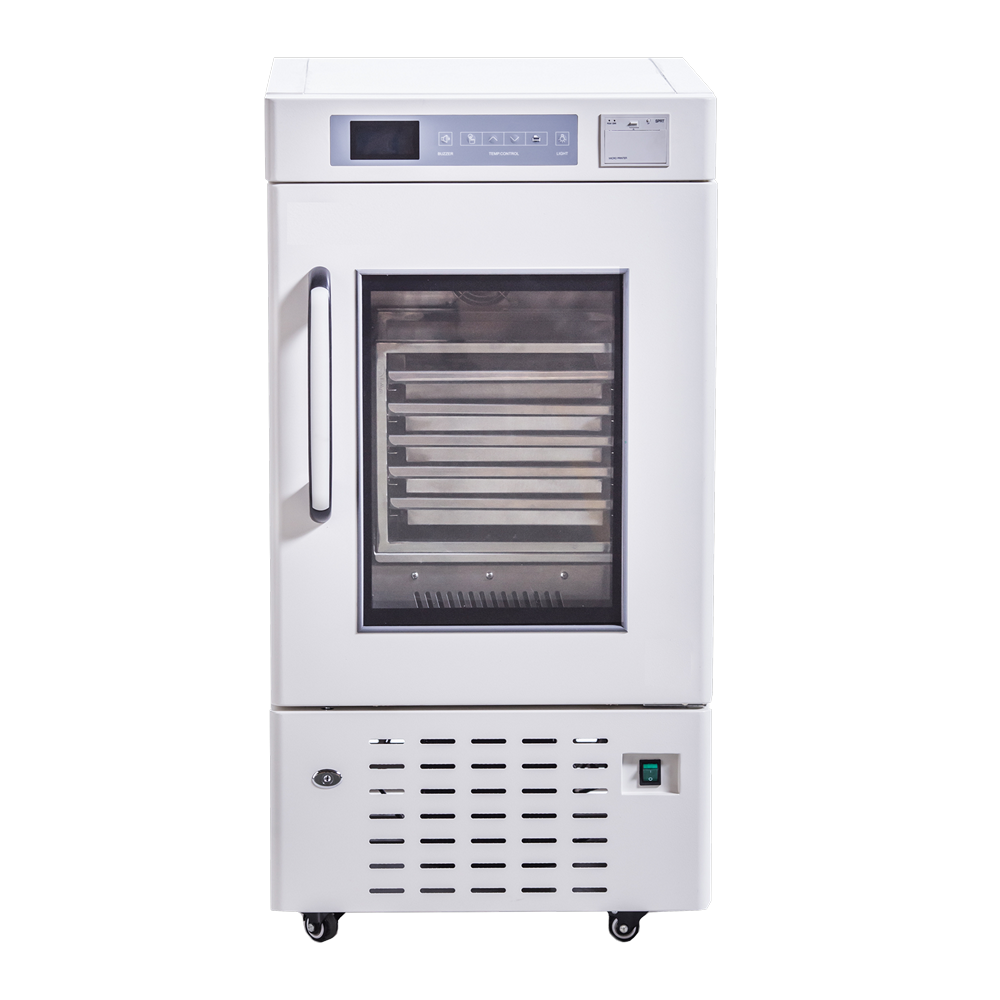

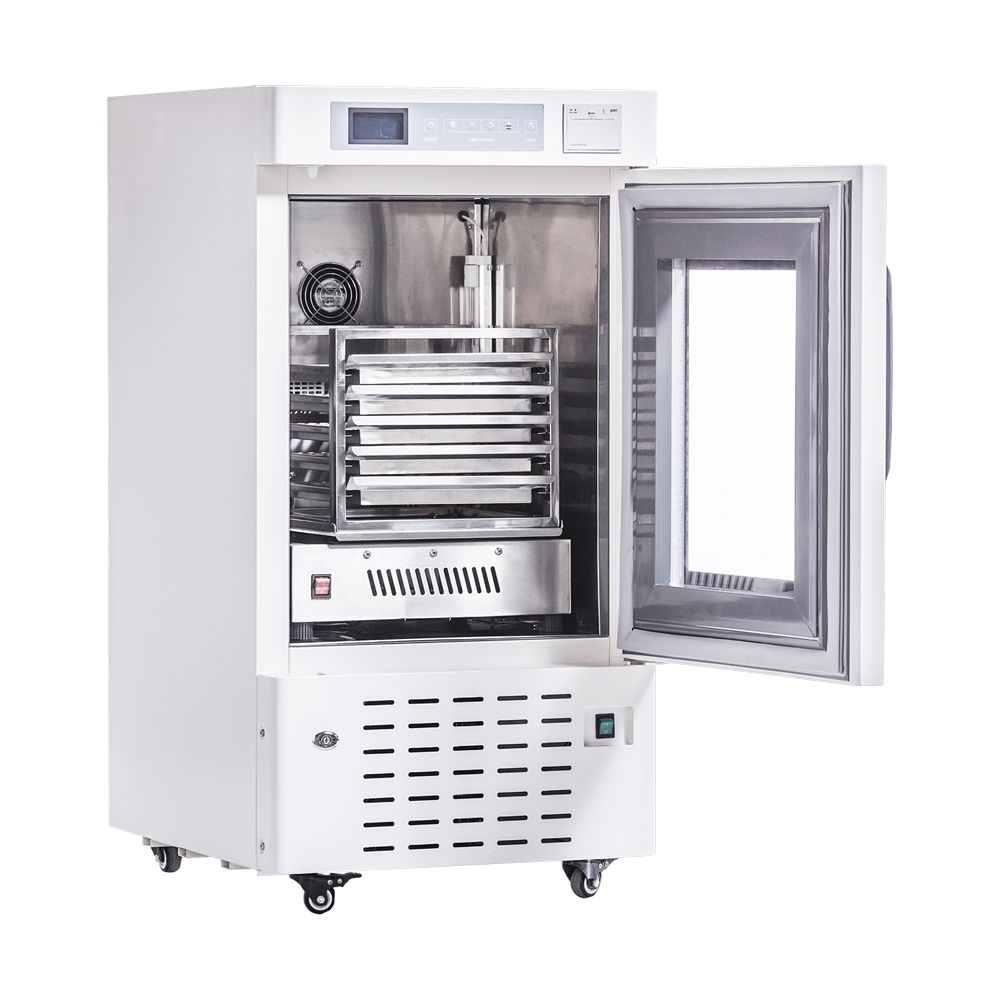

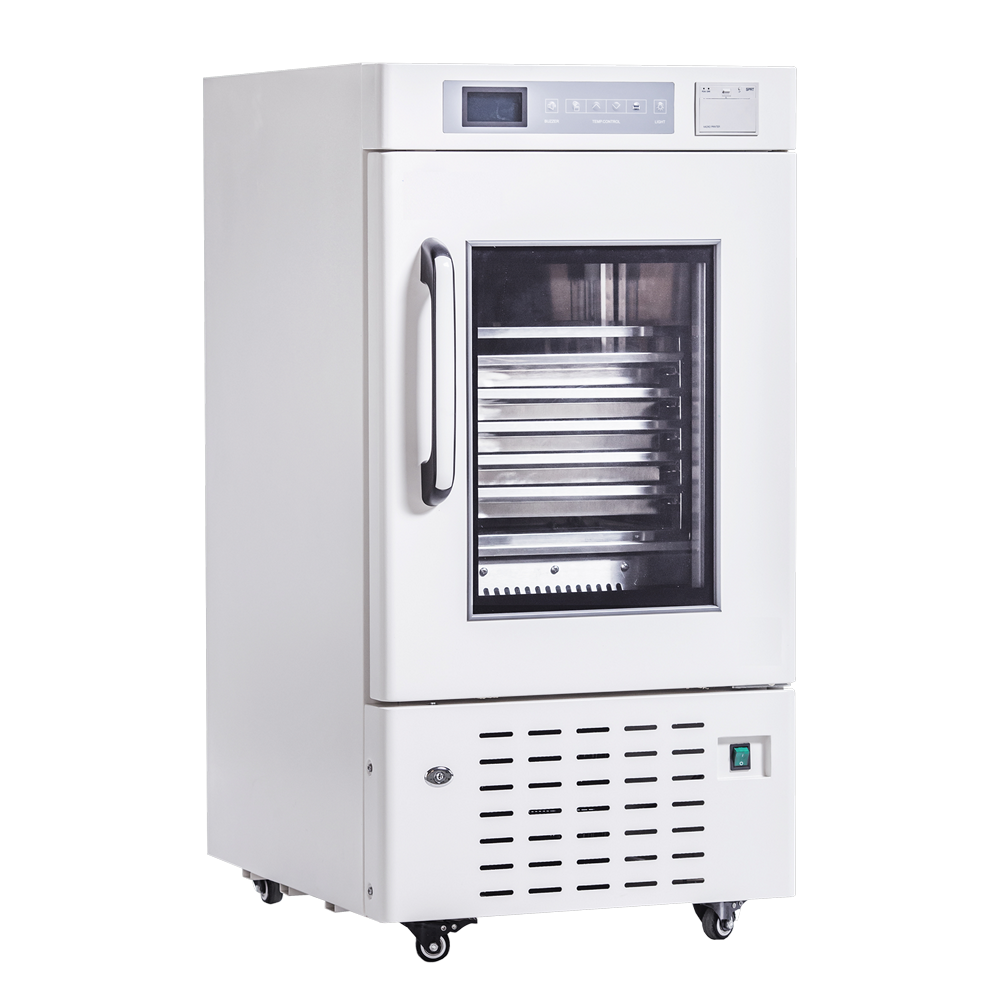

+22°C Platelet Shaking Incubator

Applications

The +22°C blood platelet shaking incubators are specially designed to store platelet for hospitals and blood stations.

Features

Accurate microprocessor controller makes the inside temperature within +22±2°C and resolution 0.1°C.

Suggested ambient temperature: +10~32°C.

Stainless steel inner chamber and shelves for friendly use and easy cleaning.

Specially designed forced-air cooling system, ensures frost-free cabinet and good temperature uniformity.

Toughened glass door with self-close function.

Wide available voltage range: 220V±10%.

Security

Safety door lock and controller password to prevent unauthorized access.

Built-in backup battery to power the controller and save temp. data when power failure or system error.

Visual and audible alarm system.

Power failure protection: turn-on delay of the cooling system after power failure.

Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.

Humanized design

Special designed service-free drainage system, ensure no water in the cabinet.

4 casters with stopper for easy moving and fixation.

UV sterilization: adjustable sterilization time and auto on/off when the door is closed/opened.

Specifications

Temperature Range: 20~24°C

Ambient Temperature: 10~32°C

Capacity (L/Cu. Ft.): 108/3.81

Interior Dimensions (WxDxH) mm: 427x360x467

Exterior Dimensions (WxDxH) mm: 522x600x1035

Weight: 65 kgs

Noise: 49 dB

Oscillation Range: 50mm

Oscillation Frequency: 60 times/min

Max Loading of 450ml Blood Bag: 10 Bags

Control and Power

Controller: Microprocessor

Display: LCD

Sensor: NTC

Voltage and Frequency: 220V±10%,50/60Hz

Power: 197W

Electric Current: 1.3A

Power Consumption (kWh/24h): 2.7

Audible and Visual Alarms

High / Low Temp. Alarm: Yes

Power Failure Alarm: Yes, 72h

Sensor Error Alarm: Yes

Controller Error Alarm: Yes

Door Ajar Alarm: Yes

Refrigeration

Refrigeration Type: Forced-air Cooling

Defrost: Auto

Compressor (Brand/pcs): EMBRACO /1

Refrigerant /Weight: R134a / 53g

Cabinet

Door (pcs): Self-closing Foamed Glass Door /1

Drawer (pcs): 5

Interior Cabinet Material: Stainless Steel

Exterior Cabinet Material: Coated Steel

Insulation Material: PURF (45mm)

Door Lock: Yes

LED Lamp: UV Lamp

Test Hole (pcs): Optional

Castors (pcs): 4

Accessories

Temperature Printer: Yes

Remote Alarm Port: Yes

USB Data Download Port: Optional

RS485 Port: Optional

Temperature Datalogger: Optional

Shipping

Package: Plywood box with pallet

Shipping Weight: 87 kgs

Shipping Size (WxDxH): 700×590x1210

Shipping Volume: 0.5 CBM

• Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
