Product info

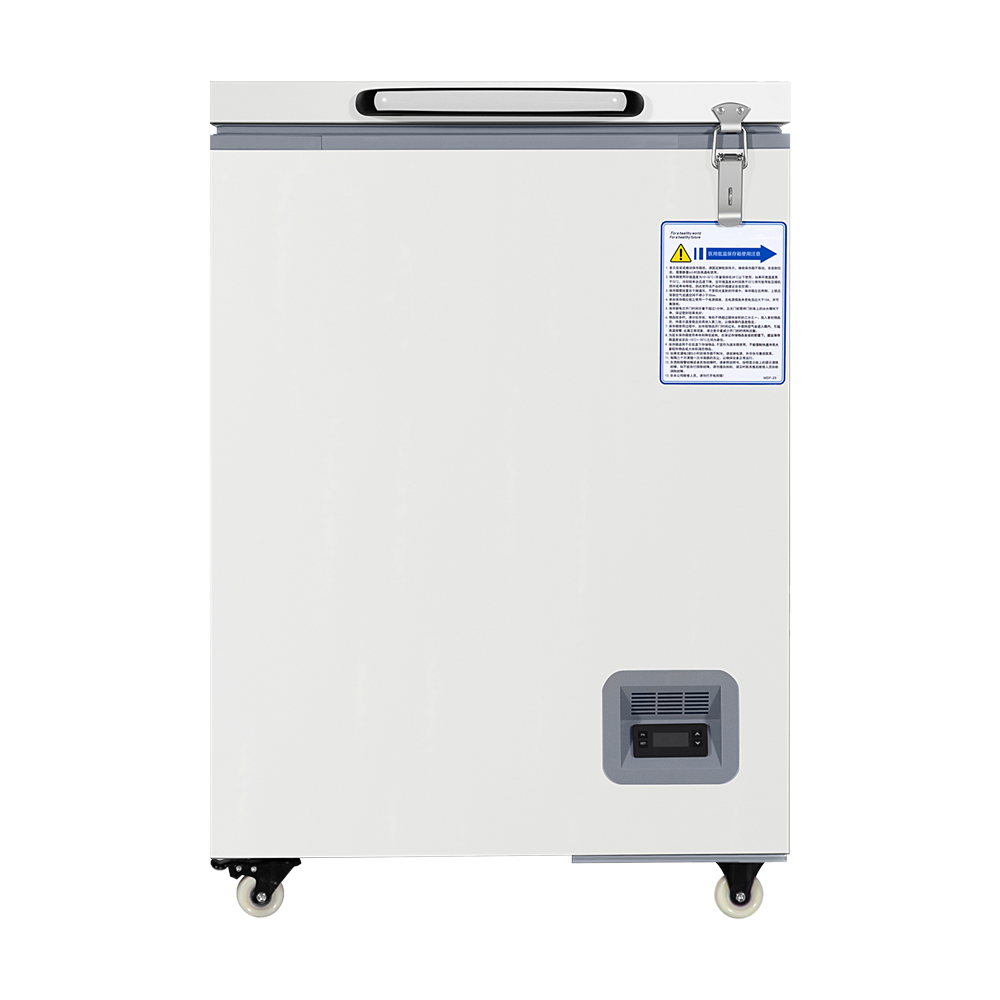

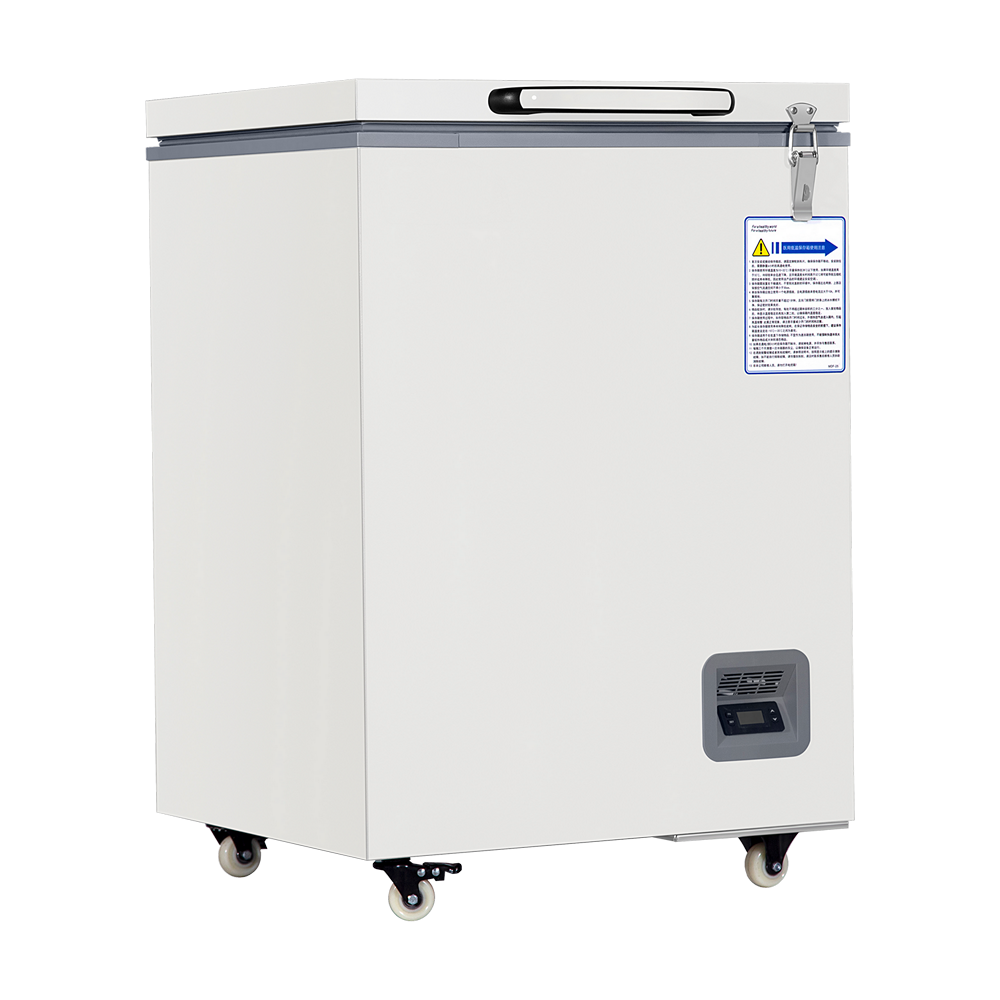

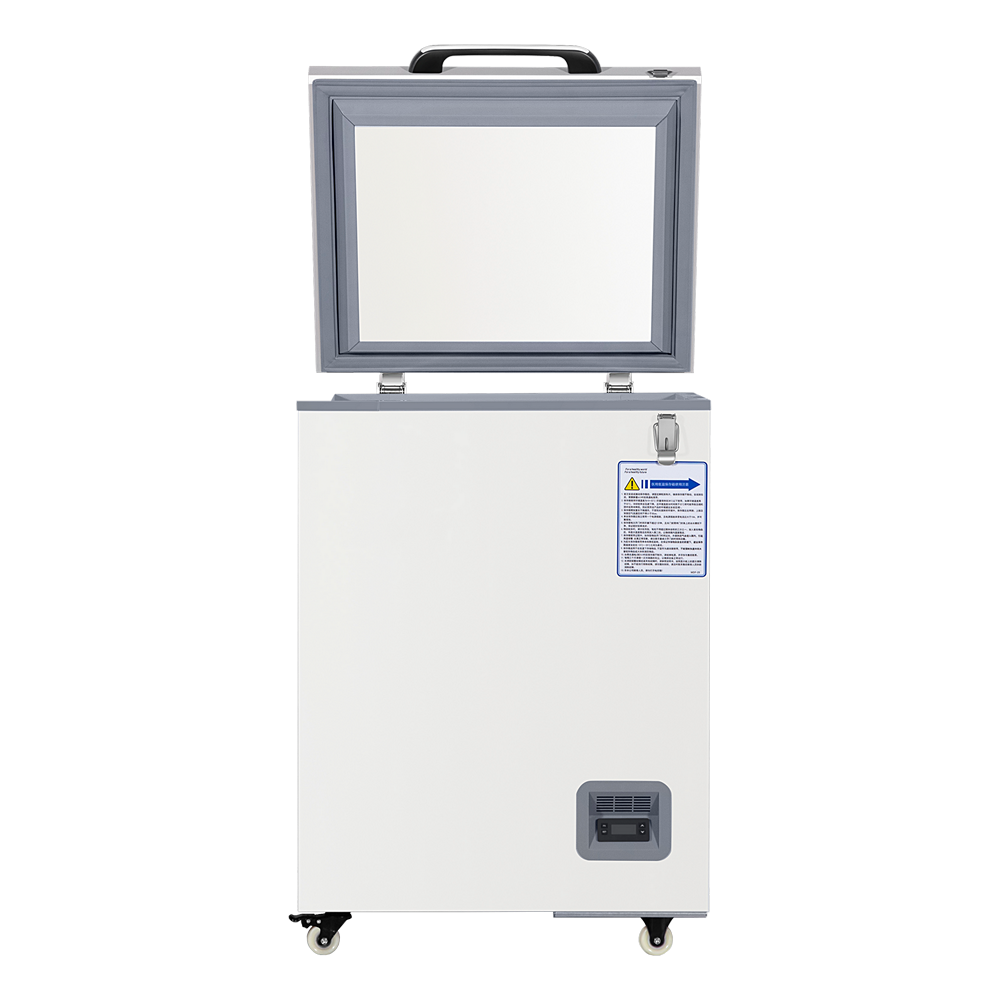

- Product name:105L -25°C Low Temperature Storage Box/Refrigerator
- Product code:C260324052
Packaging Specifications
- Outer Packaging Size:0.77 × 0.71 × 1.09 m
- Gross Weight:34 kg
- Net Weight:24 kg
- Volume:0.6
Description
Applications
The -25 °C medical deep freezers are designed to store vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and medical fields.
Features
■ Accurate temperature controller, setting temperature range is -10 to -25°C, accuracy is 0.1 °C.
■ Suggested ambient temperature: +10 to 32°C.
■ Brand compressor to ensure excellent stability of the cooling system.
■ HC eco-friendly refrigerant and high-efficiency cooling system.
Security
■ Visual and audible alarm system: High/low temperature, sensor failure, controller error.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.
Humanized design
■ Casters with stoppers for easy moving and fixation.
■ Special-designed service-free drainage system.
Specifications
| Model NO. | C260324052 |
| Main Specifications | |
| Temperature Range | -10 ~ -25 ℃ |
| Ambient Temperature | 10~32℃ |
| Capacity (L/Cu. Ft.) | 105 / 3.71 |
| Interior Dimensions (W×D×H) mm | 480×380×665 |
| Exterior Dimensions (W×D×H) mm | 621×588×883 |
| Weight | 31 kgs |
| Noise | 46 dB |
| Control and Power | |
| Controller | Microprocessor |
| Display | Digital |
| Sensor | NTC |
| Voltage and Frequency | 220V±10%, 50/60Hz |
| Power | 174 W |
| Electric Current | 1.48 A |
| Power Consumption (kWh/24h) | 1.59 |
| Audible and Visual Alarms | |
| High / Low Temp. Alarm | Yes |
| Power Failure Alarm | Yes, 12h |
| Sensor Error Alarm | Yes |
| Controller Error Alarm | Yes |
| Refrigeration | |
| Refrigeration Type | Direct Cooling |
| Defrost | Manual |
| Compressor (Brand/pcs) | Chinese Brand / 1 |
| Refrigerant / Weight | R290 / 30g |
| Cabinet | |
| Door (pcs) | Foamed Solid Door / 1 |
| Interior Cabinet Material | Coated Steel |
| Exterior Cabinet Material | Coated Steel |
| Insulation Material | PURF (δ65mm) |
| Door Lock | Yes |
| Test Hole (pcs) | 1 |
| Castors (pcs) | 4 |
| Accessories | |
| Temperature Datalogger | Optional |
| Basket (pcs) | Optional |
| Shipping | |
| Package | Carton box with pallet |
| Shipping Weight | 34 kgs |
| Shipping Size (W×D×H) | 770×705×1090 |
| Shipping Volume | 0.59 CBM |
* Due to continuous product upgrades, the above specifications are for reference only. For the latest specifications, please contact us.
