Description

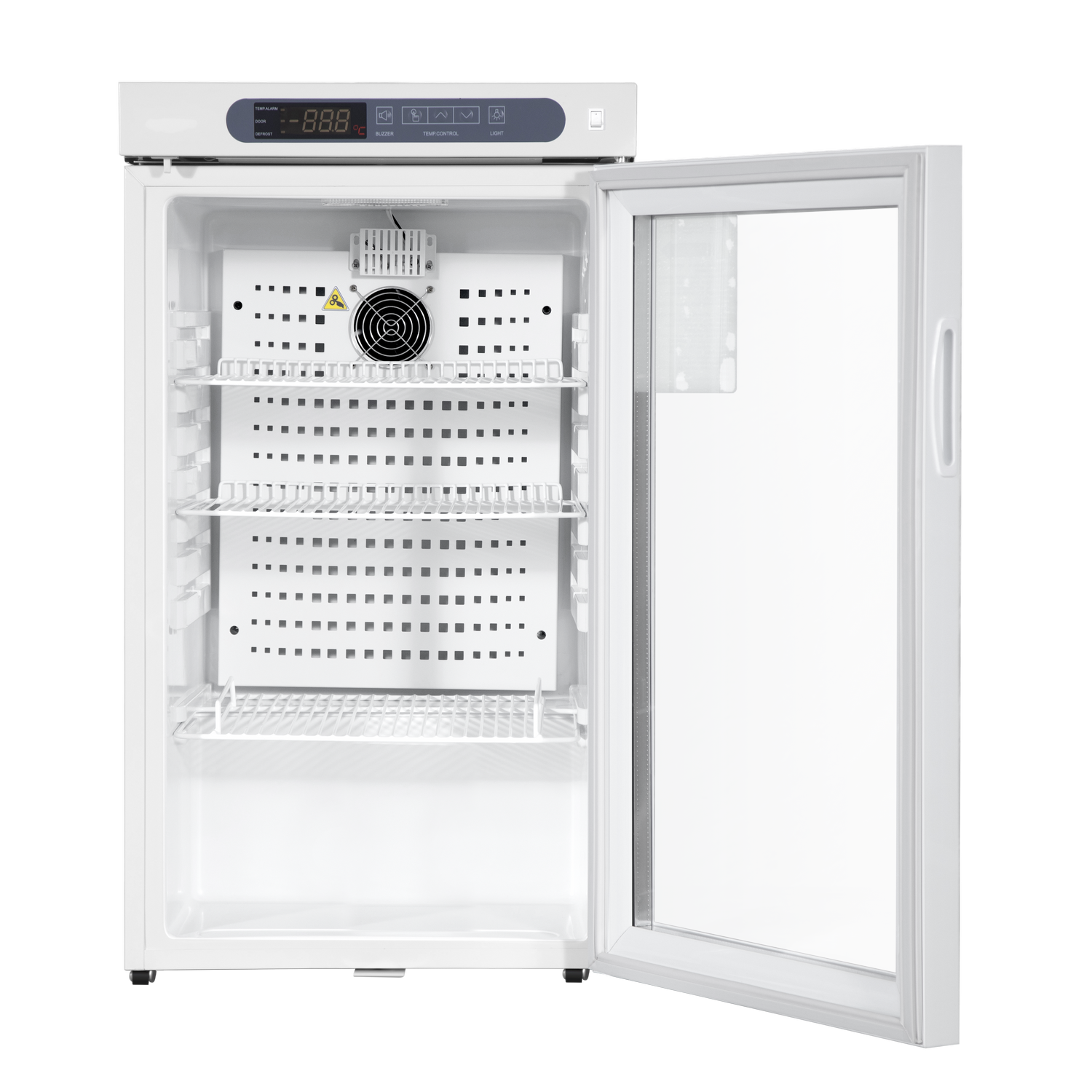

2~8℃ Biomedical Refrigerator (Forced-air Cooling System)

Applications

Specially designed for storing medicines, vaccines, reagents and biomedical products.

Main Features

Adopts microprocessor control, stably maintains internal temperature at 2~8℃ with 0.1℃ control accuracy; applicable ambient temperature ranges from 10℃ to 32℃. Equipped with forced-air cooling system to achieve frost-free operation and excellent temperature uniformity. Supports wide voltage of 220V±10%.

Safety Design

Built with safety door lock and controller password protection to prevent unauthorized access. 8-hour backup battery sustains controller operation and temperature data storage during power failure or system error. Integrated visual and audible alarm system for high/low temperature, power failure, sensor error, controller error and door ajar. Power failure delay start and controller/sensor failure protection ensure continuous stable operation.

Humanized Design

Maintenance-free drainage system keeps the cabinet dry. 3 adjustable shelves for flexible storage. Auto on/off LED light with manual control on panel; auto cooling fan stops running when door opens to avoid cold air leakage.

Specifications

Temperature range: 2~8℃

Ambient temperature: 10~32℃

Capacity: 100L / 3.53 Cu.Ft

Inner dimension: 385×356×737mm

Outer dimension: 505×510×875mm

Net weight: 35kg

Noise level: 50dB

Control system: Microprocessor with digital display, NTC sensor

Power supply: 220V±10%, 50/60Hz

Power: 80W, Current: 0.8A

Daily power consumption: 1.17kWh

Refrigeration: Forced-air cooling, automatic defrost

Compressor: 1 unit of Chinese brand

Refrigerant: R600a / 30g

Cabinet: Single glass door, 3 adjustable shelves

Inner material: HIPS; Outer material: Coated steel

Insulation: PURF 60mm thickness

Equipped with door lock, LED lamp and 4 fixed feet

Optional Accessories

Remote alarm port, USB data download port, RS485 port, temperature datalogger, temperature printer, foamed solid door.

Shipping

Packed in carton box; shipping weight 38kg

Shipping size: 590×590×950mm

Shipping volume: 0.33 CBM

Note: Specifications subject to product upgrade, please confirm the latest version officially.
