Description

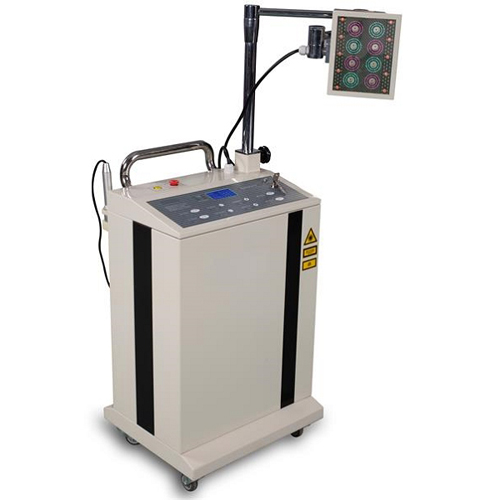

Infrared and Laser Therapy Device

Working Principle

Uses point laser and surface laser to act on painful body parts, penetrates deep into tissue, enhances light energy absorption, stimulates and regulates the body, promotes cell regeneration, improves blood and lymph circulation, relieves inflammation and pain, reduces edema, eliminates local metabolites, regulates immune function, relaxes muscles and relieves pain.

Technical Parameters

1. Rated input power: 80VA
2. Dual outputs: dot output & array output
3. Radiator specifications

• Point radiator: length 160mm±5mm, outer diameter 30mm±2mm; cable length 1080mm±10%
• Array radiator: 200mm×160mm×50mm; cable length 1260mm±15%; bracket height 740mm±15%

Output wavelength

• Point radiator: 810nm±5%
• Array radiator: 810nm/980nm±5%

Output optical power

• Point radiator (810nm): 0–500mW continuously adjustable; 1mW per short press, 10mW per long press
• Array radiator: 810nm 0–500mW (same step as point); 980nm 0–200mW adjustable; 2mW per 5 short presses, 4mW per long press

1. Intelligent control, LCD display, independent single-channel setting
2. Timing: 0–99 minutes adjustable, 1 minute per step; error ±10%
3. Output optical power instability: ±5%
4. Four-wheel trolley for easy movement
5. 3D adjustable bracket, flexible and convenient
6. Key switch (clockwise to start)
7. Emergency laser terminator

Technical Advantages

• Equipped with point radiator and planar radiator outputs
• Intelligent control, LCD display, independent channel operation
• Optimized wavelength spectrum with significant biological effect
• Multi-section movable arm for flexible positioning
• Point-surface integrated design for combined point and area treatment, matching clinical needs
