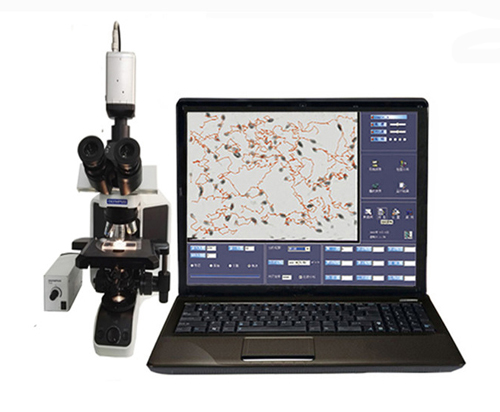

Portable Table top Sperm Quality Analyzer Computer Assisted Semen Analysis

It's a kind of high-tech intelligent product used in modern reproductive medicine with the combination of computer image processing technology and advanced artificial intelligence technology.
Item Code: CCL-LC01
Sold: 10
    Please select the information you wantX
  • choose configuration
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
Technical parameters:
the number of pieces of image acquisition 1-100 pieces.
the field of view of each of the collection analysis time 1-10 seconds.
range detection rate of 0-240μm / s.
the field of the selected field 1-30.
the measured maximum number of sperm per 1000 , error ± 2%.
sperm density detection range of 0-300 million / ml without dilution.
for a microscope objective magnification 10X.20X.40X.100X.

sperm detection system display.
a, sperm static distribution.
b, sperm dynamics trajectories.
c, semen characteristics and various data. the main performance analysis of statistical data.
d, display a variety of sperm velocity and dynamic histogram classification figure.
e, name of patient information , such as case management. the printout contents sperm detection system.
a, the sperm of the main technical data.
b, sperm dynamics trajectories.
c, analysis, judgment histogram.
d, name of patient information , such as case management.

according to WHO standard test data using sperm count plate ( thickness 10um).
can detect the movement of sperm 26 indicators , and can track the trajectory of sperm are described,color trajectory ( red , blue two tracking trajectories ).
can be analyzed sperm motility overlay.
can be dynamically learn sperm statistical analysis and medical records , analysis of dynamic parameters with a, b, c, d level analysis.
can be carried out statistical analysis of sperm morphology and medical records , with the
virtual grid power energy, preparing the fourth edition of WHO morphology software reference the latest standards , sperm deformity rate can be calculated.
And conduct deformity classification. Morphological analysis with a total of 26 parameters as follows :

Analysis of the target number, Morphologically normal sperm count, abnormal sperm morphology , the bulk of sperm count, sperm head count, hammer shaped sperm count , sperm count pear-shaped, amorphous sperm count, sperm count vacuolar head, headed sperm the number of defects in the neck and middle sperm count, sperm tail defects, other
abnormal sperm count, sperm sub- cells, white blood cells, round cells, analyzing sperm count, sperm normal average non-average normal sperm head length (um), the head width (um), the length / width ratio ( % ) , head area (um2), head circumference (um), acrosome ratio ( % ).
microscopic observation , image acquisition and data analysis : can detect sperm density ,
vitality and significantly
Static maps showing the sperm , the sperm dynamic trajectories , etc., and the major data sperm analysis.
according to WHO standards using sperm count plate ( thickness 10um), test data
accurately .
morphology software : its preparation of the fourth edition of the latest WHO reference
standard , computable sperm deformity
Malformation rate and be classified , can detect 26 targets.
only recognized by WHO clinical world's most advanced U.S. IVOS-CASA system related
Verification .

Real-time dynamic display, digital capture, dynamic movie playback, RGB24bits true color. Visualization of real-time image processing functions: pseudo-color, scaling, mirroring, interception.
Provide accurate measurements annotation: perimeter, area, histogram.
Wealth of diagnostic information database, providing powerful expert diagnosis thesaurus and pictures.
Professional case management system: query, statistics, delete, backup.
Professional full-screen display, diagnosis is more clear, accurate, intuitive, easy multiplayer consultation, teaching.
Support network transmission function can be set up PACS systems.
Read DICOM image format files.

Standard configuration:
Without Computer

CASA software installed 1 set
Sperm counting chamber 1pc
Software dongle 1set
Sperm special microscope 1set
≥ 600TVL CCD camera 1set
Video capture card 1set
English user manual 1pc.

Laptop Computer
Temperature control unit
HP inkjet color printer
Laser color printer
Olympus microscope
Ruby sperm counting chamber.


Shipping Information:

G.W: 12kg

Packing Size: 0.7m,0.4m,0.32m

Unit: Piece

Special: No
