Product info

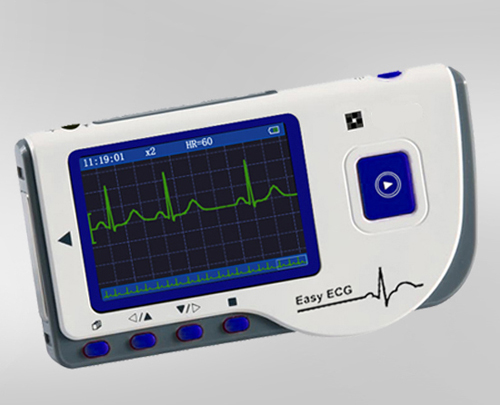

- Product name:Portable ECG EKG Monitor Machine
- Product code:CCE80
Packaging Specifications
- Outer Packaging Size:0.2 × 0.1 × 0.02 m
- Gross Weight:2 kg
- Net Weight:0 kg
- Volume:0
Description
Portable Single-Channel ECG Monitor
Channels
Single channel (Note: The "18 Channels" title in the image refers to the number of analysis types, not the number of ECG acquisition channels)
17 Types of ECG Measurement
The device supports 17 preset ECG waveform analysis types for user reference, including:
- No irregular rhythm found
- Suspected occasional short burst irregular beats
- Suspected a few fast beats
- Suspected irregular beats
- Suspected fast beats
- Suspected slow beats
- Suspected short run of fast beats
- Suspected slow run of fast beats
- Suspected a few slow beats
- Suspected slow beats with longer interval
- Suspected occasional slow bursts
- Suspected irregular beats with longer interval
- Suspected slow beats with baseline wander
- Ventricular baseline wander
- Poor signal, please try again
Features
- Palm-sized design: Compact form factor for convenient daily home measurement
- Quick measurement: 3 methods (Palm/Leg/Chest) for results in 30 seconds
- Continuous monitoring: 22-hour continuous ECG storage
- Pre-set analysis: 17 types of preset ECG waveform analysis
- Mobile connectivity: Android/iOS app for real-time display and storage
- PC software: Data management software for review and analysis
- Integration-ready: Communication protocol and SDK available
Measurement Methods
- Palm measurement
- Leg measurement
- Chest measurement
- Lead wire measurement
Technical Specifications
| Parameter | Details |
|---|---|
| Number of channels | Single channel |
| Electrodes | 3 embedded metal electrodes or external ECG lead wire |
| Display | 2.8-inch color LCD screen |
| HR measuring range | 30bpm–240bpm |
| HR measuring accuracy | ±2bpm or ±2% |
| Display scale | 5.0mm/mV ±10% |
| Sweeping speed | 20mm/s ±10% |
| Measurement time | 30s quick measurement or continuous measurement |
| Measurement result | 17 types |
| Data storage | 2700 groups record or 22 hours trend |
| Data upload | By USB with PC analysis software |
| Data transmission | By wireless real-time transfer |
| Dimension | 125mm(L) × 70mm(W) × 21.5mm(H) |
| Net weight | 106g (including two AAA batteries) |
| Power supply | DC 3V (2×AAA batteries) |
Software Support
- ECG Viewer Manager: PC software for detailed data review and analysis
- Mobile App: Android/iOS app for real-time viewing and storage of results
