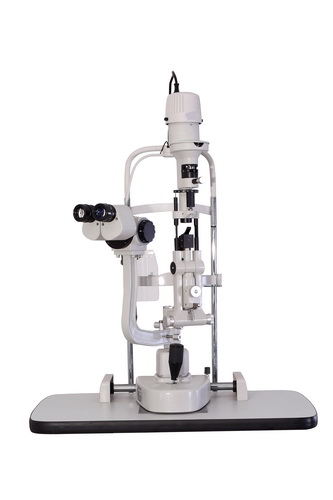

Ophthalmic microscope slit lamp

Ophthalmic microscope slit lamp
Item Code: CCE-2ER
Sold: 100
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Technical Specifications
Microscope

Type Galileo parallel style
Magnification change

Three(slm-2ER-L)/Five magnification(slm-2ER)

Eyepiece 12.5x
Total magnification

6x  10x  16x  25x  40x (SLM-2ER)
10x  16x  25x (SLM-2ER-L)

Field of View 6X: 33mm, 10X: 20mm, 16X: 13mm, 25X: 8mm, 40X :5mm

Range of adjusting the distance of pupil

55 mm-75 mm
Range of adjusting eyepieces

-8D - +8D
Magnification

Slit width

0.794x
0mm-14mm
Slit length

1mm-14mm
Diameter of aperture

φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm
Slit angle 0-180
Illumination angle

0, 5, 10, 15, 20
Filter Heat absorption, Grey, red free(Green), Cobalt blue
Bulb 12v, 50w halogen bulb
Moving

Forward and backward moving

90mm
Left and right moving 100mm
Handle moving  15mm
Up and down moving

30mm
Jaw bracket part Up and down moving

80mm
Fixation  Red LED
Power

Input voltage 110/220V±10%
Input frequency 50/60Hz
Input power 60VA
Output voltage

Illumination:  4.5V   9V   12V
Fixation:      6V
Safe standard of electric IEC601-1, type Ⅰof BF Model
Weight and
Dimension

Packing box 720mmx495mmx480mm
Gross weight 25Kg
Net weight 21Kg
