Product info

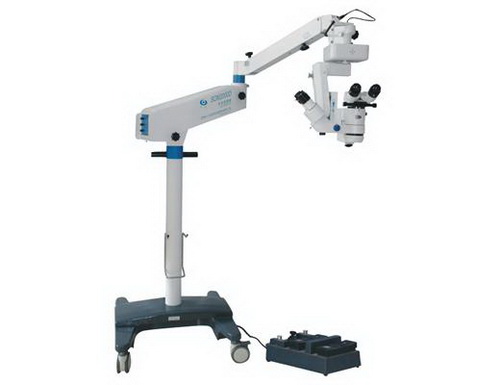

- Product name:Operation Microscope
- Product code:CCE-SOM2000D
Packaging Specifications
- Outer Packaging Size:0 × 0 × 0 m
- Gross Weight:0 kg
- Net Weight:0 kg
- Volume:0
Description
Surgical Microscope
Detailed Profile Characteristics
- Germany imported optics ensures the surgeon bright, balanced, and fine observation.
- Apochromatic technology used in the optical design, ensures coaxial light focus and provides clearer field of view.
- Lock device under the microscope arm ensures the safe distance and prevent accidents from happening.
- Independent electrical control box with the function of automatic diagnosis, which is very convenient for installation and repair if necessary.
Specifications
| Parameter | Value |
|---|---|
| Eyepiece Magnifications | 12.5X18B |
| Objective Lens | f=200 |
| Working Distance | 170mm |
| Magnification for Main Microscope | 4.6X~27X motorized and manual control continuous magnification |
| Magnification for Assistant Microscope | 6X, 10X, 16X |
| Diameter of Field | 4646+46mm~8.58, 588.58mm |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm ~ 75mm (main microscope is 45mm ~ 80mm) |
| Maximal Resolution | 119 LP/mm |
| Focusing Range for Assistant Microscope | ≥30mm |
| Illumination Source | 12V/100W, cold reflection halogen lamp for medical use |
| Illumination Type | 6°+0° coaxial illumination of cold light source, 26° oblique illumination |
| Coaxial Illumination | ≥80000lx, 1~9 level, panel operated |
| Oblique Illumination | ≥60000lx, 1~9 level, panel operated |
| Reaching Radius of Arm | 1230mm |
| Adjustable Vertical Range | 880mm~1420mm |
| Fine Focusing Speed and Range | ≤2mm/s, ≥50mm |
| Speed for X/Y and Range | ≤2mm/s, 50mm×50mm |
| Input Voltage | AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz |
| Power | 170VA |
| Fuse | AC250V T4.04.0444.0000A, AC1250V T8.0588.0A |
| Electrical Safety Standard | Executive standard: GB9706.1-2007, Class I |
| Packing Volume | 0.756m³, 5 cartons |
| Total Weight | 215kg |
