Description

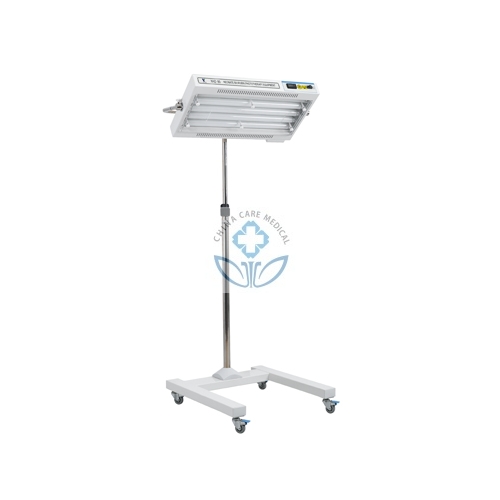

Neonate Bilirubin Phototherapy Equipment CCI-XHZ90

This CE-certified neonate bilirubin phototherapy equipment (stock code: 300314) has mobile and fixed models (fixed model is exclusive for the brand's infant incubator), with two variants XHZ-90 (blue fluorescent lamp) and XHZ-90L (blue LED) for different light source needs. It features adjustable lamp module (mobile model only), built-in timing, stable irradiation performance and dual voltage adaptation, and is fully certified for clinical neonate phototherapy use.

Core Product Features

1. Two Model Types: Mobile model with lockable wheels for flexible movement; fixed model specially mounted on the company's infant incubator, suitable for fixed clinical scenarios.
2. Two Light Source Options: CCI-XHZ90 adopts blue fluorescent lamp (2000hrs lifespan), both have a dominant blue light wavelength of 420-470nm, with exclusive peak spectra (436nm for CCI-XHZ90).
3. Adjustable Design (Mobile Model Only): Lamp module radiation angle adjustable 0-60° upward from horizontal, height adjustable in 1350mm~1650mm range; wheels with lock function for stable placement.
4. Timing Function: Built-in timer with a wide range of 0~9999hrs 59min, accurately counting phototherapy time for clinical convenience.
5. Stable Irradiation Performance: Bilirubin total irradiance uniformity >0.4; mobile models have higher irradiance values than fixed models, and XHZ-90L (LED) has significantly higher irradiance than XHZ-90 (fluorescent lamp) for more efficient therapy.

Key Technical Specifications

1. Power Supply: Dual voltage adaptation (AC220V-230V/50Hz or AC110-120V/50-60Hz); CCI-XHZ90 power 150VA, XHZ-90L power 75VA (lower power consumption).
2. Irradiance Indicator: All models meet the minimum irradiance and average bilirubin radiation standards
3. Timer: Built-in, 0~9999hrs 59min range, no additional timing equipment needed.

Standard Configuration

1. Mobile Model: Lamp module (radiant light source + protective panel + timer), lock knob, mobile stand (height adjustment rod + lamp column + stand), lockable wheels.
2. Fixed Model: Lamp module (radiant light source + protective panel + timer), lamp column (simplified configuration for incubator mounting).

Packaging Information

• Integrated packaging: The whole unit is packed into a single carton
• Carton dimension: 955mm×655mm×205mm
• Gross weight: 23Kg
