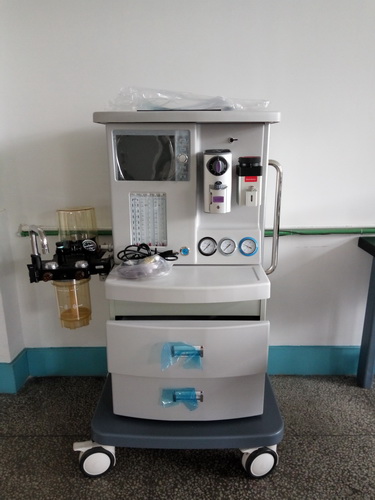

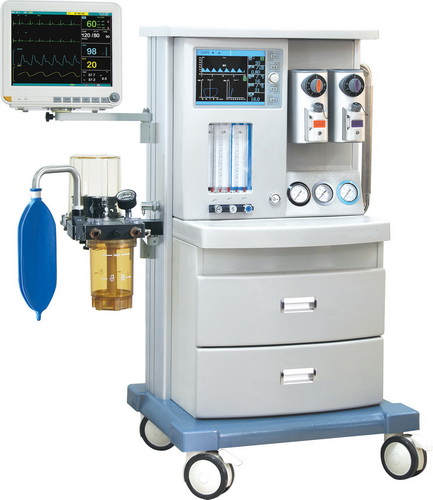

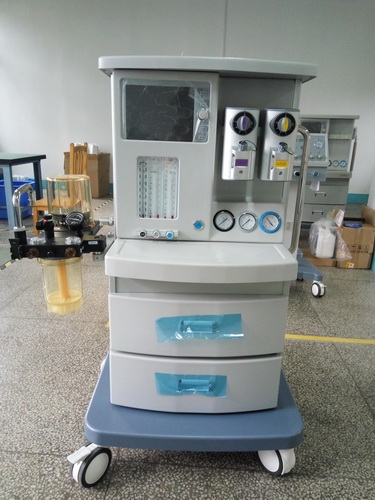

Multifunctional Anesthesia machine

CE, ISO 13485 and Rohs certificates Pneumatically driven and electrically controlled system Built-in ventilator, 10.4” LCD display screen Closed; Semi-Closed; Semi-Open wotking mode Applied for Adult and Pediatric
Item Code: CCA-JL850B
Sold: 10
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
  • USER MANUAL
  • Detail pictures
Specifications
Type: Trolley Type
Video,


Main technical specifications:

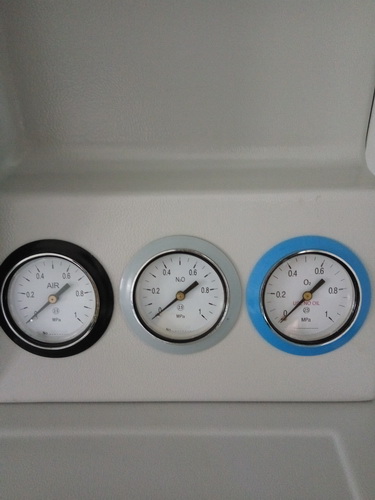

Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.

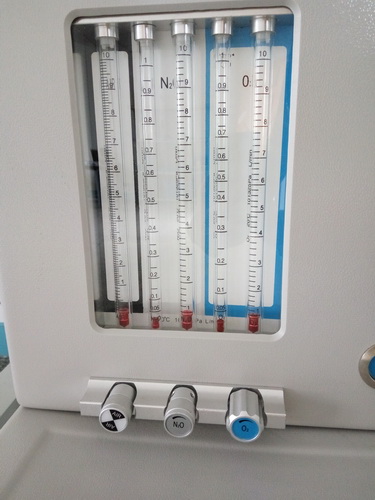

5-tubes Flowmeters, O2 & N2O & Air ; 0.1L/Min ~ 10L / Min;
Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,PCV, VCV,PEEP,SIGH,MANUAL
Tidal Volume: Adjustable range: 50 ~ 1500 ml, Display range:0~2000ml
I/E Ratio: 8:1 ~ 1:10

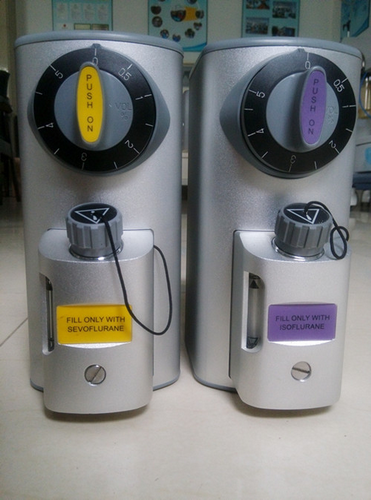

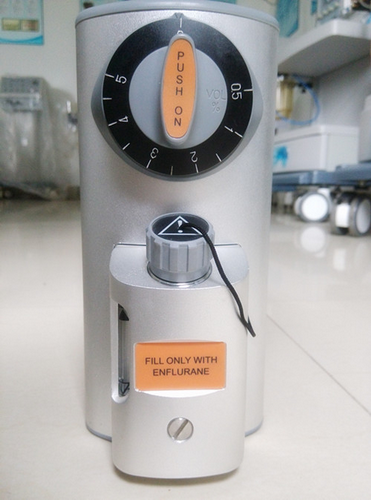

Two vaporizers: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range:  0.5%~5%
Respiration Frequency : 1~100 bpm;
Lung compliance: ≤30 mL / kPa
IMV frequency: 1~20 bpm;
PEEP: 0 ~ 2.0 kPa
Ptr: -1.0kPa ~ 2.0 kPa

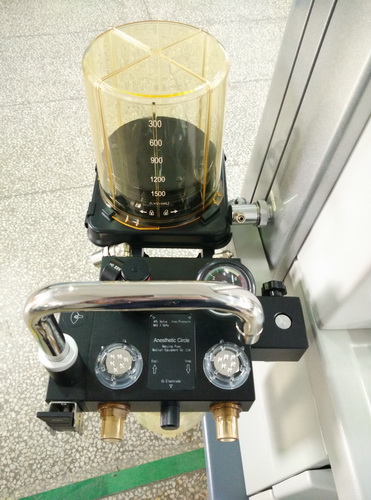

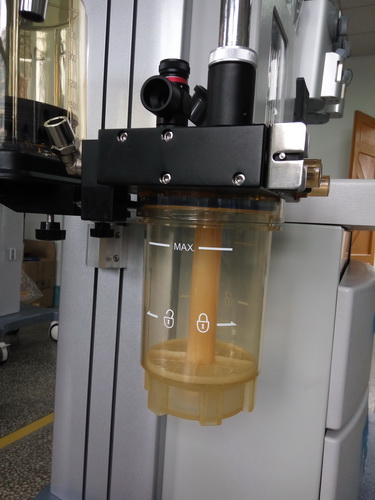

CO2 absorber capacity : 1 kg
Inspiratory Plateau: 0~1 S ;
O2 Concentration: 21%~100%
Optional: Patient monitor

Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,oxygen concentration, AC power malfunction,Battery low power.

Shipping Information:

G.W: 114kg

Packing Size: 0.94m,1.45m,1.27m

Unit: Piece

Special: No
