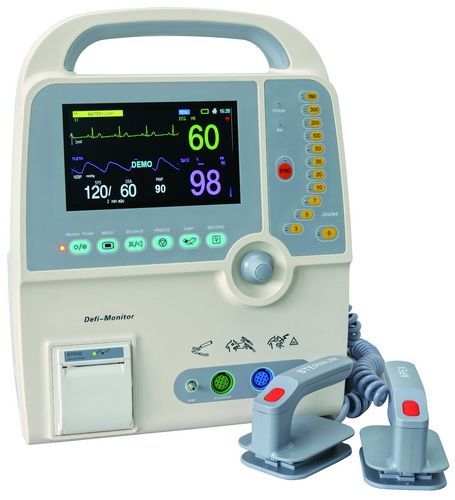

Monophasic Defi-monitor Defibrillator Monitor

High brightness TFT LCD display  Big figure display ECG Waveforms of 3-lead or 5-lead displayed in one screen NIBP dual Over Pressure Protection Isolated float, anti defibrillation and anti high -frequency interference Networking capacity
Item Code: CCD-9000C
Sold: 5
    Please select the information you wantX
  • choose configuration
  • choose configuration
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Specifications
Physical characteristics:
Main unit: Portable
Dimensions:L320xW205xH410
Weight:9.8kg

Technical specifications
DEFIBRILLATOR.
(1) Defibrillator type Manual, Synchronized, Asynchronized,
(2) Energy accuracy ∠+1%
(3)  Energy selection    0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)
(4) Charging time     Maximum 10 seconds to 360 Joules
(5)  Standard Adult/Pediatric Paddles  Reusable external adult paddles (pediatric paddles integrated)
.Power requirements.
(a) AC Power supply 100V~240V,50Hz/60 Hz
(b) Vehicle Voltage(Option)             DC 12V
Internal Battery Backup
(1) Battery type   Rechargeable lead-acid battery  (12V 2.0Ah  X2)
(2) Charging time    Time-Minimum of 4 hours for full charging
(3) Battery charging      During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication      Red LED
(5) Battery Capacity      100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules.
Display
-LCD Dimensions 7-inch
-Type High resolution true-color graphic
-Resolution 480X234
ECG
ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45℃
Resolution 0.1℃

Pulse Oximetry(spO2)
Display :spo2 value, pulse histogram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe :standard adult finger clip
optional pediatric Y-type clip and neonatal wrap

Pulse range
Pulse range: 0-255bpm

Standard parameter & configuration
 ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR

Optional parameter
Recorder, Li-ion battery (11.1V 4Ah  X2)



Shipping Information:

G.W: 17kg

Packing Size: 0.6m,0.5m,0.5m

Unit: Piece

Special: No
