Product info

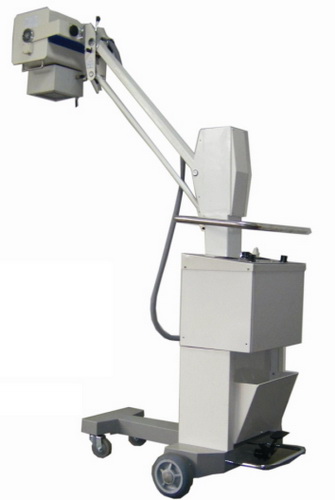

- Product name:Mobile 70mA X-ray Machine
- Product code:CCX-70BY
Packaging Specifications
- Outer Packaging Size:1.21 × 0.78 × 1.46 m
- Gross Weight:177 kg
- Net Weight:0 kg
- Volume:1.38
Description
Portable X-ray Unit Specifications
Main Purpose and Features
This X-ray apparatus features full-wave rectification and a modular X-ray tube head. The unit frame uses a cantilever construction, offering a compact design and easy mobility. It is intended for radiography in hospital wards or operating rooms.
Main Technical Data
Maximum Ratings
| Current (mA) | Voltage (kVp) | Exposure Time (seconds) |
|---|---|---|
| 30 | 90 | 0.063 – 5.0 |
| 50 | 90 | 0.063 – 1.0 |
| 70 | 80 | 0.063 – 4.0 |
| 70 | 70 | 0.063 – 1.0 |
Power Requirements
- Voltage: 180–240V
- Frequency: 50Hz
- Internal resistance: ≤0.8Ω
- Rating: 5.5kVA
- Maximum current for radiography: 15A
Key Specifications
- Exposure Time: 0.063 to 5.0 seconds, with electronic step control.
- Height Range:
- Collimator: Maximum film size at 1000mm focal distance: 400×400mm
- Maximum remote control distance: 6m
- X-ray tube focus: 2.6
- Unit moving force: ≤250N
Physical & Shipping Details
- Shipping Volume (L×W×H): 135cm × 75cm × 150cm (1.52m³)
- Gross Weight (G.W.): 135kg
- Net Weight (N.W.): 95kg
